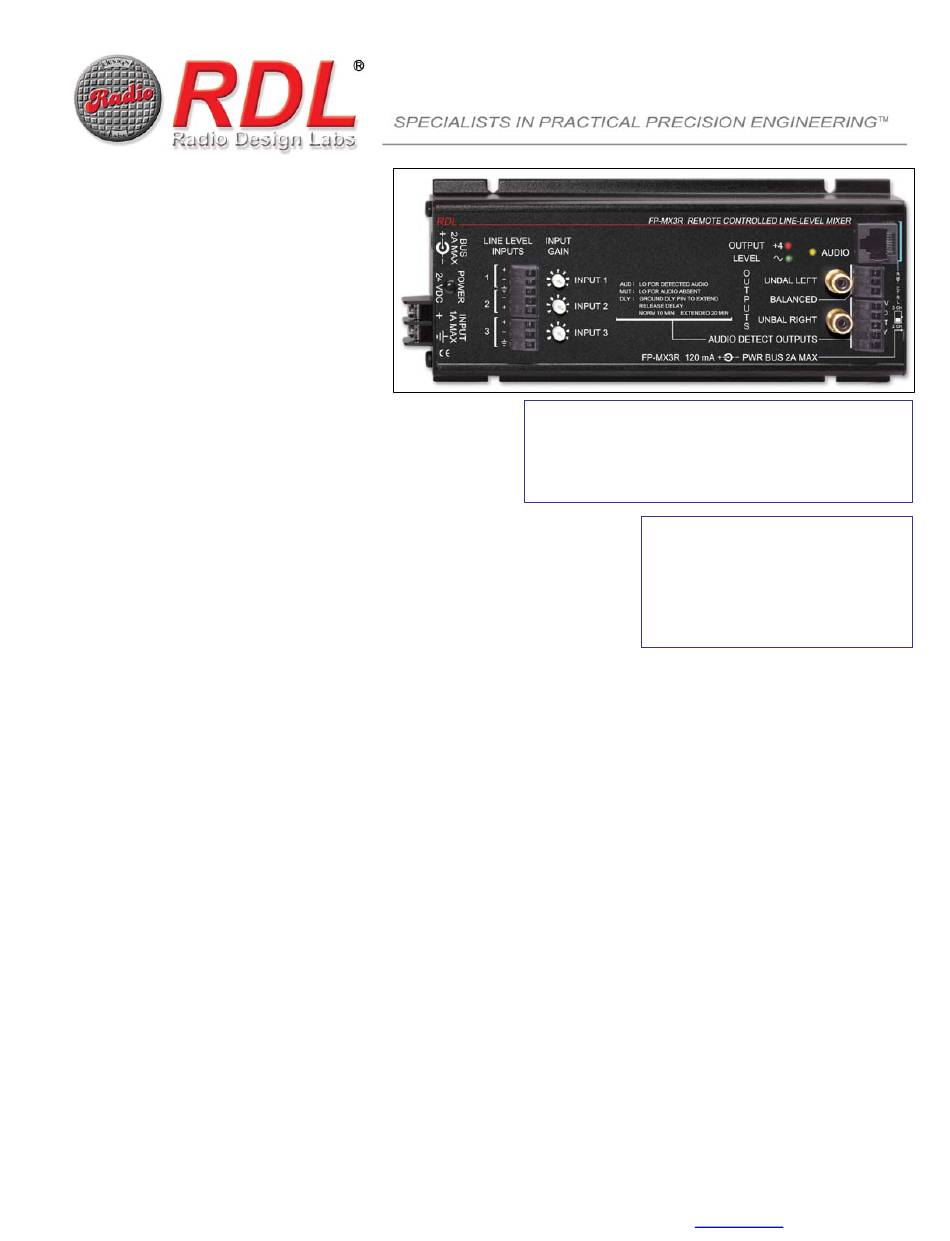

RDL FLAT-PAK Series Quick Start Manual

™
FLAT-PAK SERIES

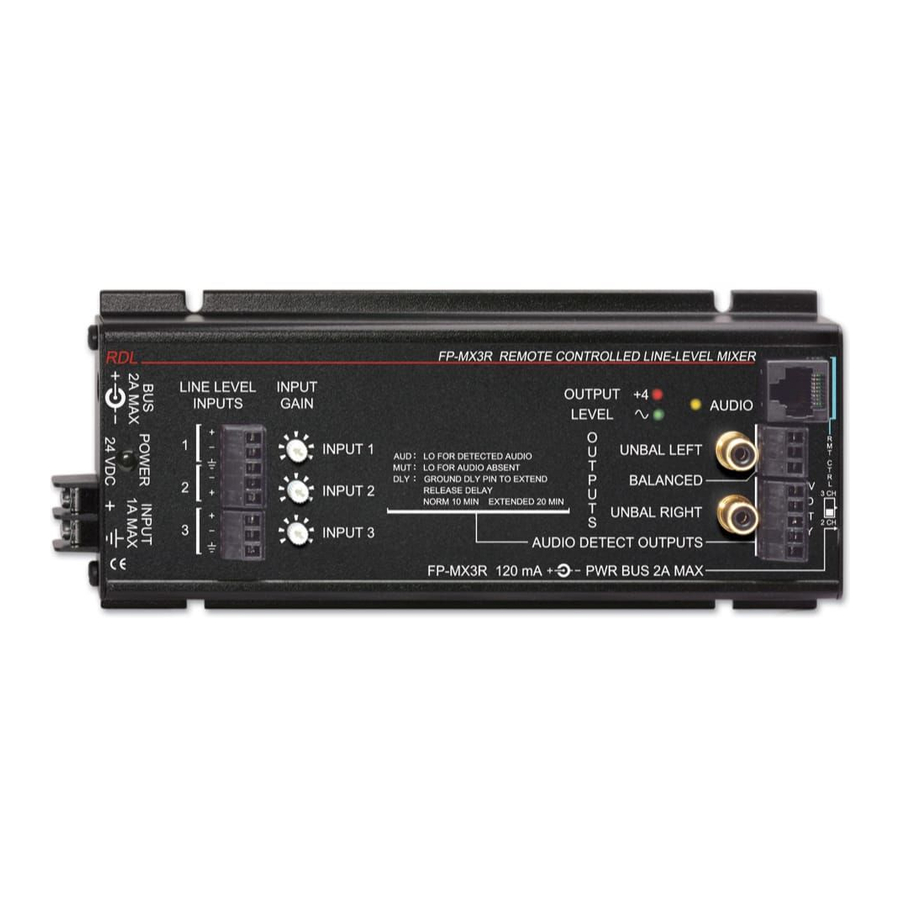

Model FP-MX3R
Remote Controlled
Line-Level Mixer
•
3-Channel Remote-Controlled Audio Mixer
•
VCA Level Control for Each Input
•
Balanced or Unbalanced Inputs
•
Balanced and Unbalanced Outputs
•
Two Mono Unbalanced Outputs to Feed Stereo Amplifier
•
Inputs and Outputs on Detachable Connectors
•
Twisted Pair Interconnection to Remote Control
•
Directly Controlled by RDL Remote Controls
•
Two and Three Channel Remote Controls Available
•
Fixed Level Possible for Input 3 if Two Channel Remote Used
•
Paging Source May Connect to Input 3
•
Front-Panel Gain Trim for Standard Audio Line Levels
•
Dual-LED VU Meter Displays Mixer Output Level
•
Audio Presence Detector Controls Open-Collector Outputs
•
Detector Outputs Intended to Enable Power Amplifiers or System Power
•
Energy Savings Possible Using Detector Outputs
•
Selectable 10 or 20 Minute Detector Release Delay
The FP-MX3R is a mono audio mixer in the convenient line of FLAT-PAK products, featuring the superior engineering and components common to
RDL products. The FP-MX3R may be rack or surface mounted with optional FLAT-PAK series accessories. The FP-MX3R gives you the
advantages of a quality audio mixer with the added convenience of remote control!
The FP-MX3R is the ideal choice where a user-accessible mixer must control the volume of multiple sources. The mixer accepts
balanced or unbalanced audio sources through a detachable terminal block. FP-MX3R outputs are provided in balanced and
unbalanced formats. Two unbalanced outputs are available to feed the mono mixer output to a stereo amplifier input. Remote
control of the mixer allows audio signals to be kept at a single equipment location. Audio is mixed by VCA circuits that are
adjusted by control signals from the remote control.
Each input is equipped with an INPUT GAIN trimmer to set the proper operating level for each source. A standard RDL dual-LED
VU meter provides visual indication of the output level from the mixer. Each input is normally adjusted to produce +4 dBu on the
VU meter when the corresponding remote control channel is adjusted to maximum. This assures ample headroom at all normal
operating levels. The mixer output is mono. The output is available on a single balanced detachable terminal block or on two
unbalanced RCA jacks intended to connect directly to the stereo input of a power amplifier.
The AUDIO LED illuminates whenever audio is present at the output of the mixer, defined as greater than 35 dB below +4 dBu.
This threshold triggers the AUDIO DETECT OUTPUTS. Two open collectors are provided on a detachable terminal block. One of
these terminals switches low when audio is present, and may be used to switch amplifiers or other system components on. The
other terminal is pulled low when audio is not present. It is intended for muting the digital carrier of power amplifiers equipped for
remote muting. Either of these terminals may be used to trigger a variety of other RDL modules or OEM equipment. The use of
these terminals to shut down unused equipment can produce effective system energy and cost savings. These control terminals
normally remain triggered for 10 minutes after audio is absent. The delay can be increased to 20 minutes using a ground jumper
on the terminal block.
The mixer levels are set by RDL remote controls that connect directly to the FP-MX3R through an RJ45 jack using standard
twisted pair cable. The control ports on the mixer and remote controls are color-coded light blue to distinguish them from other
twisted pair jacks. The mixer provides power to the remote control. Either a two or three channel remote control may be used. If
remote mixing of only two channels is needed, a two channel remote may be used. INPUT 3 becomes the input channel that is
not remotely controlled. This input may be left active at a level set on the corresponding INPUT GAIN control, typically for a paging
or music source, or may be disabled by a switch set during installation. If the cable connected to the remote control becomes
disconnected, the mixer output mutes.
Wherever it is desirable to keep audio signal sources at an equipment location while providing compact, high quality user mixing
controls, the FP-MX3R is the ideal choice. Use an FP-MX3R and its associated remote control individually or combine them with
other RDL products as part of a complete audio/video system.
•
RDL 659 N. 6
th •
St. Prescott, AZ., USA 86301
ASSOCIATED REMOTE CONTROL EXAMPLES:
► D-RC2 and DS-RC2 Two-channel remote controls
► D-RC2M and DS-RC2M Two-channel remote controls with muting
► D-RC3 and DS-RC3 Three-channel remote controls
► D-RC3M and DS-RC3M Three-channel remote controls with muting
• •
(928) 443-9391 FAX (928) 443-9392
TYPICAL APPLICATIONS:
► Meeting Rooms
► Boardrooms
► Classrooms
► Restaurant or Residential Patios
► Retail Stores
► Offices
•
