TM
RACK-UP
™
Model RU-MX5
Audio Mic/Line Mixer
TYPICAL PERFORMANCE
Inputs:
Input Impedance:
Line Level Output:
Mic Level Output:
Gain:
Frequency Response:
External Phantom Power:
Total Harmonic Distortion:
Headroom:
Metering:
Noise:
Power Requirements:
891-0054A
R D L
Specialists in Practical Precision Engineering
SERIES
4 Selectable Mic or Line Level; 1 dedicated Line Level
150 to 600 Ω Balanced; 5 kΩ Unbalanced
Mic:
Line:
10 kΩ Balanced or Unbalanced
200Ω to drive Low or High Impedance Balanced or Unbalanced Lines; +4 dBu
150Ω Balanced; -45 dBu
Mic:
Off to 65 dB
Line:
Off to 15 dB
Mic:
70 Hz - 30 kHz (+/- 1.5 dB)
Line:
20 Hz - 20 kHz (+/- 0.5 dB)
24 Vdc Maximum
< 0.030% (0.0125% typical)
> 18 dB above +4 dBu output
3 L.E.D. Indicators; -20 dB, 0 dB, +5 dB, Peak Reading
(0 dB Referred to Balanced Line Output of +4 dBu)
< -70 dB Below +4 dBu Output (All Channels Active; Mic Gain = 50 dB;
Line Gain = Unity)
24 to 33 Vdc @ 65 mA, Ground-referenced
Radio Design Labs Customer Service Centers
U.S.A. (800) 933-1780, (520) 778-3554; Fax: (520) 778-3506; http://www.rdlnet.com
Europe [NH Amsterdam] (++31) 20-6238 983; Fax: (++31) 20-6225-287
™
R a d i o D e s i g n L a b s
™

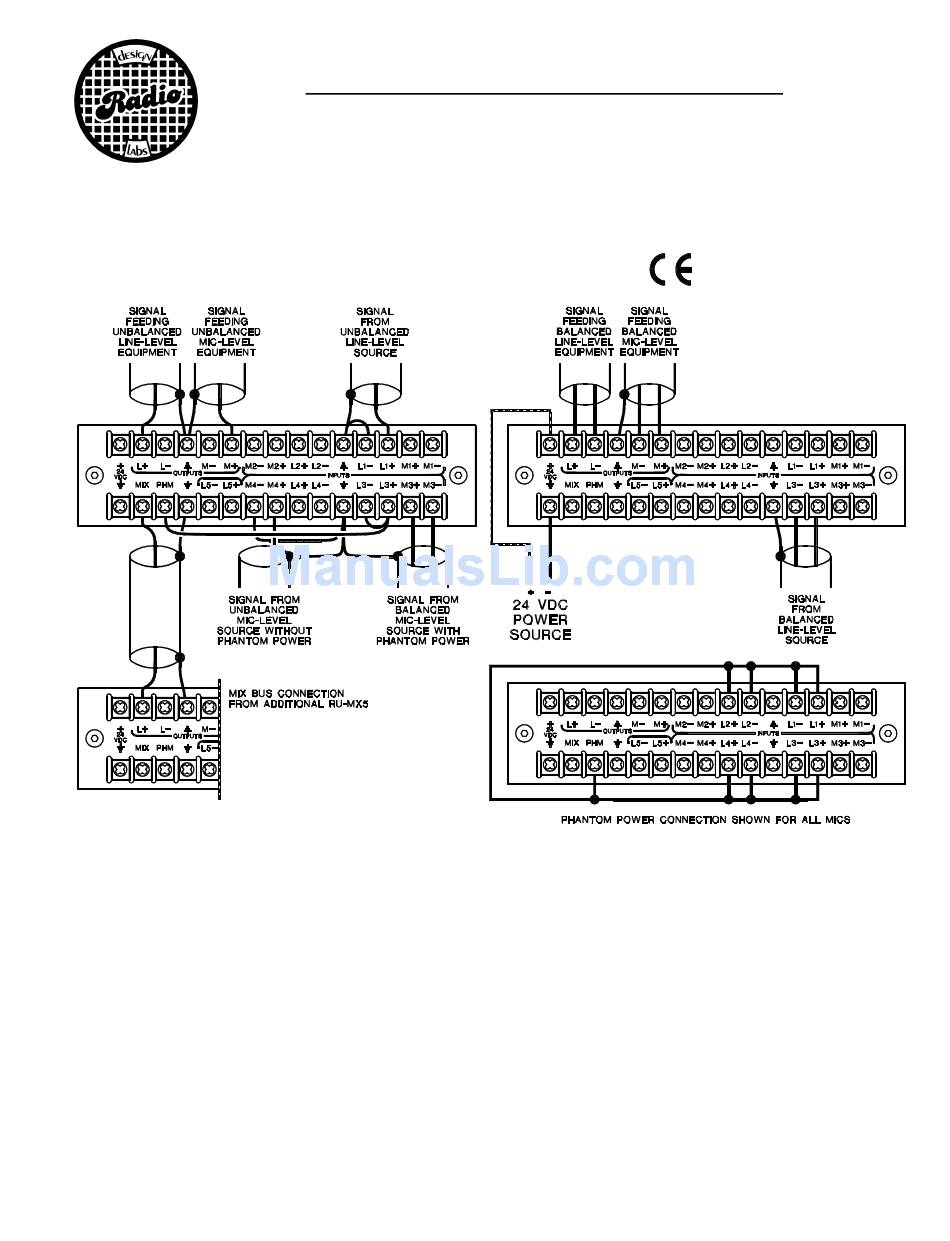

Installation Instructions
Conforms to the immunity and emission
specifications published in the EMC Technical
Bulletin for this product, incorporated herein.
