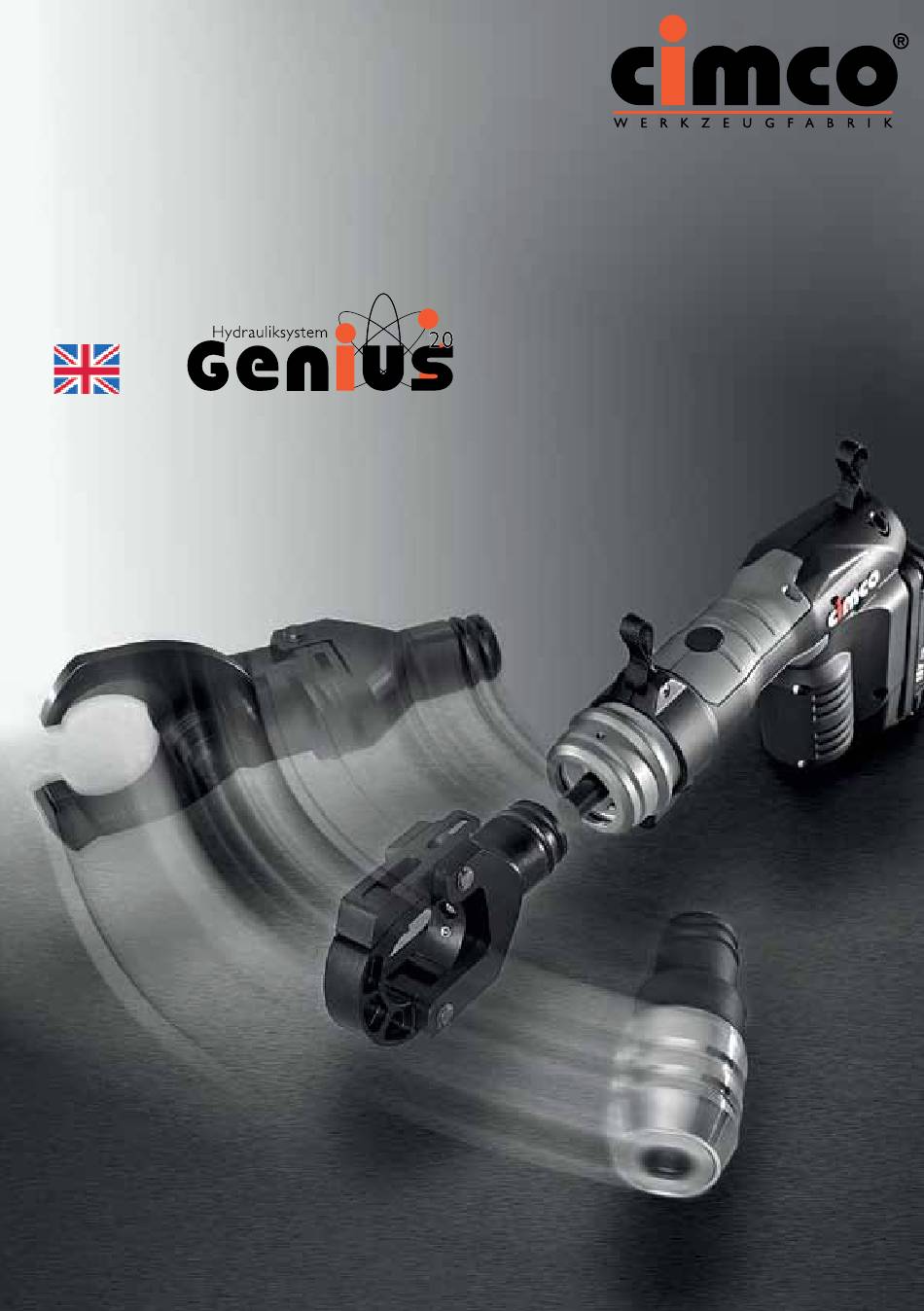

- Page 1 Operating instructions for CIMCO-Werkzeugfabrik - D-42855 Remscheid - www.cimco.de...
-
Page 2: Table Of Contents
(see mention on the charger and b) Keep electric tools away from rain or Scope of application the battery). CIMCO Werkzeugfabrik does not pro- moisture. If water penetrates the electric tool, vide a guarantee of completeness. Rechargeable battery this will increase the risk of electric shock. -
Page 3: Emphasis In These Operating Instructions
When operated, an internal electric motor powers a The GENiUS 2.0 conform to all applicable EMC hydraulic pump which supplies fluid to the cylinder standards. However, the possibility of it cau- of the sing interference in other devices cannot be precluded. -
Page 4: Description Of Appliance And Functional Principle
3 Description of appliance and functional principle 3.1 Functional principle Loops for Upper and lower GENiUS 2.0 hydraulic system carrying strap crimping inserts 60 kN pressing strength Crimping head Locking ring Start switch Emergency stop On / Off switch Max. 3... -
Page 5: Scope Of Delivery / Performance Features
3 Description of appliance and functional principle 3.2 Performance features GENiUS 2.0 hydraulic system Crimping head Rechargeable battery Performance features: - Quick change system for crimping, cutting and hole punching head - Automatic return after maximum pressing strength of 60 kN is reached ... -
Page 6: Changing Crimping Inserts
3 Description of appliance and functional principle 3.3 Changing crimping inserts Additional safety instructions: Before changing the crimping inserts, remove the battery or take the crimping head out of the machine. Do not change the crimping inserts until this has been done. 1. -
Page 7: Start-Up
3 Description of appliance and functional principle 3.4 Start-up 1. Pull back the locking 2. Check that the head is correctly locked. ring and insert the The edge of the locking device on the head appropriate head must be covered by the locking ring. 3. -
Page 8: Crimping
3 Description of appliance and functional principle 3.5 Crimping 1. Insert cable into 2. Push terminal lug onto the crimping head the cabl 3. Carry out crimping while the start switch is pressed. Emergency stop function The crimping process has been correctly completed when the lower cheek plate returns to the home Pressing the release button position by itself... -
Page 9: Cutting
3 Description of appliance and functional principle 3.6 Cutting 1. Place the cable in the cutting head 2. Carry out cutting procedure while pressing the start Emergency stop function switch. The cut has been correctly completed when the cutting knife returns to home position by itself or Pressing the release button the cable has been completely cut through. -
Page 10: Hole Punching
3 Description of appliance and functional principle 3.7 Hole punching 1. The sheet metal hole 2. After an appropriate hole has been pre-drilled, the puncher to be used is to hole puncher plus the die and the tie bolt are be mounted in the introduced into the hole and then locked finger-tight punching head.. -
Page 11: Permitted / Not Permitted
3 Description of appliance and functional principle 3.8 Permitted / not permited Ready for crimping! The crimping process must not be started without crimping inserts! The appliance must not be started without a head! If the machine has been started ... -
Page 12: Led Function
(LEDs). treme cold, extreme heat (65° C), chemical solu- tions and gases. The GENiUS 2.0 hydraulic system is used as a The following are monitored: crimping, cutting and punching tool. The original • Voltage/battery capacity tools, as described here, are to be used. -
Page 13: Disposal
(yellow LED is lit). Never use fluids (water or chemicals) or Remscheid, 28.02.2014 If the machine is defective, the GENiUS 2.0- damp cloths to clean the hydraulic system. The hydraulic tool will be blocked immediately by the outside of the housing can be cleaned by... -
Page 14: Operating Instructions
Remscheid, 28.02.2014 2 Description of crimping head CIMCO-Werkzeugfabrik - 42855 REMSCHEID The 10 6301 crimping head forms part of the CIMCO pressing tool GENiUS 2.0. 3 Intended use The 10 6301 crimping head is used for crimping connecting materials. Joachim Quirl Geschäftsführer... - Page 15 Remscheid, 28.02.2014 2 Description of crimping head CIMCO-Werkzeugfabrik - 42855 REMSCHEID The 10 6298 crimping head forms part of the CIMCO pressing tool GENiUS 2.0. 3 Intended use The 10 6298 crimping head is used for crimping connecting materials. Joachim Quirl Geschäftsführer...
- Page 16 Remscheid, 28.02.2014 2 Description of cutting head CIMCO-Werkzeugfabrik - 42855 REMSCHEID The 10 6306 cutting head forms part of the CIMCO pressing tool. GENiUS 2.0. 3 Intended use The 10 6306 cutting head is used for cutting electrical cables. Joachim Quirl Geschäftsführer...
- Page 17 CIMCO GENiUS 2.0 pressing tool Remscheid, 28.02.2014 2 Description of punching head CIMCO-Werkzeugfabrik - 42855 REMSCHEID The 10 6308 punching head forms part of the CIMCO pressing tool. GENiUS 2.0. 3 Intended use The 10 6308 punching head is used for punching sheet metal.
- Page 20 Carl Jul. Müller GmbH & Co. KG Hohenhagener Str. 1-5 • D-42855 Remscheid P.O. Box 10 02 63 • D-42802 Remscheid Tel.: +49 (0) 21 91/37 18 01 • Fax: +49 (0) 21 91/37 18 86 E-Mail: info@cimco.de • Internet: www.cimco.de...
