dmXLAN node1
DMX Ethernet single node
Users Manual
Software version: 1.1
Version: 1004
Description

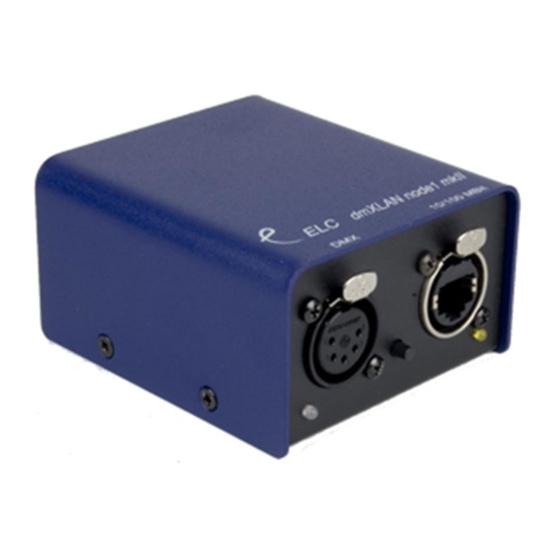

The dmXLAN node 1 is a DMX Ethernet node with a single DMX connection. This connection made up
of a male or female connector an can be used as either an input or an output. The Ethernet connection is
either a hardwired via installation "KRONE" contacts or an NEUTRIK Ethercon. The Ethercon can also be
used with normal RJ45 plugs.
1
Advertisement
Table of Contents
Summary of Contents for ELC dmXLAN node1
- Page 1 DMX Ethernet single node Users Manual Software version: 1.1 Version: 1004 Description The dmXLAN node 1 is a DMX Ethernet node with a single DMX connection. This connection made up of a male or female connector an can be used as either an input or an output. The Ethernet connection is either a hardwired via installation “KRONE”...
- Page 2 Connections DMX connection The DMX 512 connection is made up of a 3 or 5 pin male or female XLR. The DMX port can be setup in the software as a DMX512 input or output. When a male connector is setup as an output, you’ll need a female to female cable.
- Page 3 Enter and a 2 line x 8 character backlit display Main menu This menu comes up on power on. By using the Up and Down buttons you can select the information on the display: 1) Name given to the node (max 16 characters) 2) LAN (Ethernet) status.
- Page 4 110 x 70 x 50 mm General Information CE – Product The DmxLan Node1 permits to the CE requirements set up by the European Community. This can be recognized by this label on the outside of the product: Designed and manufactured in the Netherlands by: ELC lighting Support contact: support@elclighting.com...
