Anywire DB A40 Series Manual

Anywire DB A40 Series Manual

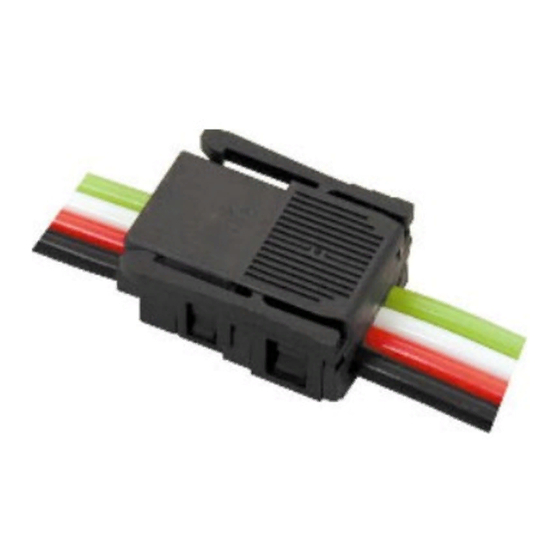

Link connector insulation displacement method of flat cable

Advertisement

AnyWire DB A40 series
AnyWire Bitty series
AnyWire OpenTerminal series
Link Connector Insulation
Displacement Method of
R
R
R
Flat Cable
(Additional version)
First version 07 November, 2006
Anywire Corporation
UMA-0A

Advertisement

loading
Need help?

Need help?

Do you have a question about the DB A40 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Anywire DB A40 Series

  • Page 1 Anywire Corporation ○ AnyWire DB A40 series ○ AnyWire Bitty series ○ AnyWire OpenTerminal series Link Connector Insulation Displacement Method of Flat Cable (Additional version) First version 07 November, 2006 UMA-0A...
  • Page 2 CAUTION ! ! ! ! minor injury or property damage. In order to use it safely - An AnyWire system is not a thing having a control function aimed for safe security. ! ! ! ! WARNING - When as follows, while having care special about safety measures which had a margin to rating and a function and to be used, such as a way and fail-safe, carried out, please consult to our company.
  • Page 3 In case of storage of the product, keep away from high temperature and high humidity. (Storage temperature is –20 to 75˚C.) When the emergency stop circuit or the interlock circuit for safety is arranged, provide these circuits outside the AnyWire System.
  • Page 4: Table Of Contents

    Contents Introduction Subject to combination Insulation Displacement to Flat Cable Terminal Insulation Displacement to the Intermediate of Flat Cable Connection AnyWire System Warranty Change History...
  • Page 5: Introduction

    Please refer to this manual as an additional manual separate from “pliers insulation displacement work”, a standard work method, introduced in AnyWire Technical manual or laying Manual. 2 2 2 2 Subject to combination (FK4-075-100 :AnyWire model)...
  • Page 6: Insulation Displacement To Flat Cable Terminal

    3 3 3 3 Insulation Displacement to Flat Cable Terminal Depending on AnyWire standard identification color, signals of flat cable are assigned as shown in the table below. Pin No Signal DN (Bitty, OpenTerminal) DP (Bitty, OpenTerminal) Name G (AnyWire DB A40)
  • Page 7 (3) Check the end surface of cable insert connector cover and attach a small hook properly. Check that cable should insert end surface. Check that hook attached securely. Insert connector body to connector cover of [3]. Four electrical poles from connector body should insert into four holes on connector cover.
  • Page 8 [5] Fasten the status of [4] using dedicated tools(Suzuden Corp.: L-Tool-N). Make sure that four large hooks attach into the connector cover holes properly with a snapping noise. It is recommended that dedicated tools be used for safe status. Hooks (both sides, two by two) attach securely after insulation displacement. (6) Completed.
  • Page 9: Insulation Displacement To The Intermediate Of Flat Cable

    4 4 4 4 Insulation Displacement to the Intermediate of Flat Cable Signal assigned to flat cable is same as previous section. (1) Prepare the connector cover. Cut the top of end surface parts by nippers or like device. End surface parts (2) Close the connector cover when flat cable insert to connector cover.
  • Page 10 [3] Check that a small hook insert properly. Check that hook attached securely. (4) Insert connector body to connector cover of [3]. Four electrical poles from connector body should insert into four holes on connector cover. Connector body hole Large hook Connector body コネクタボディ...
  • Page 11 [5] Fasten the status of [4] using dedicated tools(Suzuden Corp.: L-Tool-N). Make sure that four large hooks attach into the connector cover holes properly with a snapping noise. It is recommended that dedicated tools be used for safe status. Hooks (both sides, two by two) attach securely after insulation displacement after insulation displacement. (6) Completed.
  • Page 12: Connection

    5 5 5 5 Connection Three connection types are possible if coupling with insulation displacement (intermediate insulation displacement cable and the end cable insulation displacement). Addition T-type branch H-type branch T-type branch example...
  • Page 13: Anywire System Warranty

    6 6 6 6 AnyWire System Warranty > Warranty period The warranty of the Product delivered shall continue effective for one (1) year after the delivery thereof to a location as designated by the original owner. > Scope of warranty Should a defect occur in any part of the Product during the foregoing warranty period when it is used normally in accordance with specifications described in this User's Manual.
  • Page 14: Change History

    7 7 7 7 Change History Version Date Changes First version 07 November, Official version 2006...
  • Page 15 Anywire Corporation http://www.anywire.jp ■Headquarters (West Japan Office) 8-1, Shimoinden, Inouchi, Nagaokakyo-shi, Kyoto 617-0813 JAPAN TEL: 81-75-956-1611 FAX: 81-75-956-1613 ■East Japan Office 47, Kandakonya-cho, Chiyoda-ku, Tokyo 101-0035 JAPAN TEL: 81-3-5209-5711 FAX: 81-3-5209-5713 TEL: 81-52-452-8711 FAX: 81-52-452-8713 ■Kyoto Factory 19-2, Umatate, Kamiueno-cho, Muko-shi, Kyoto 617-0006 JAPAN...
