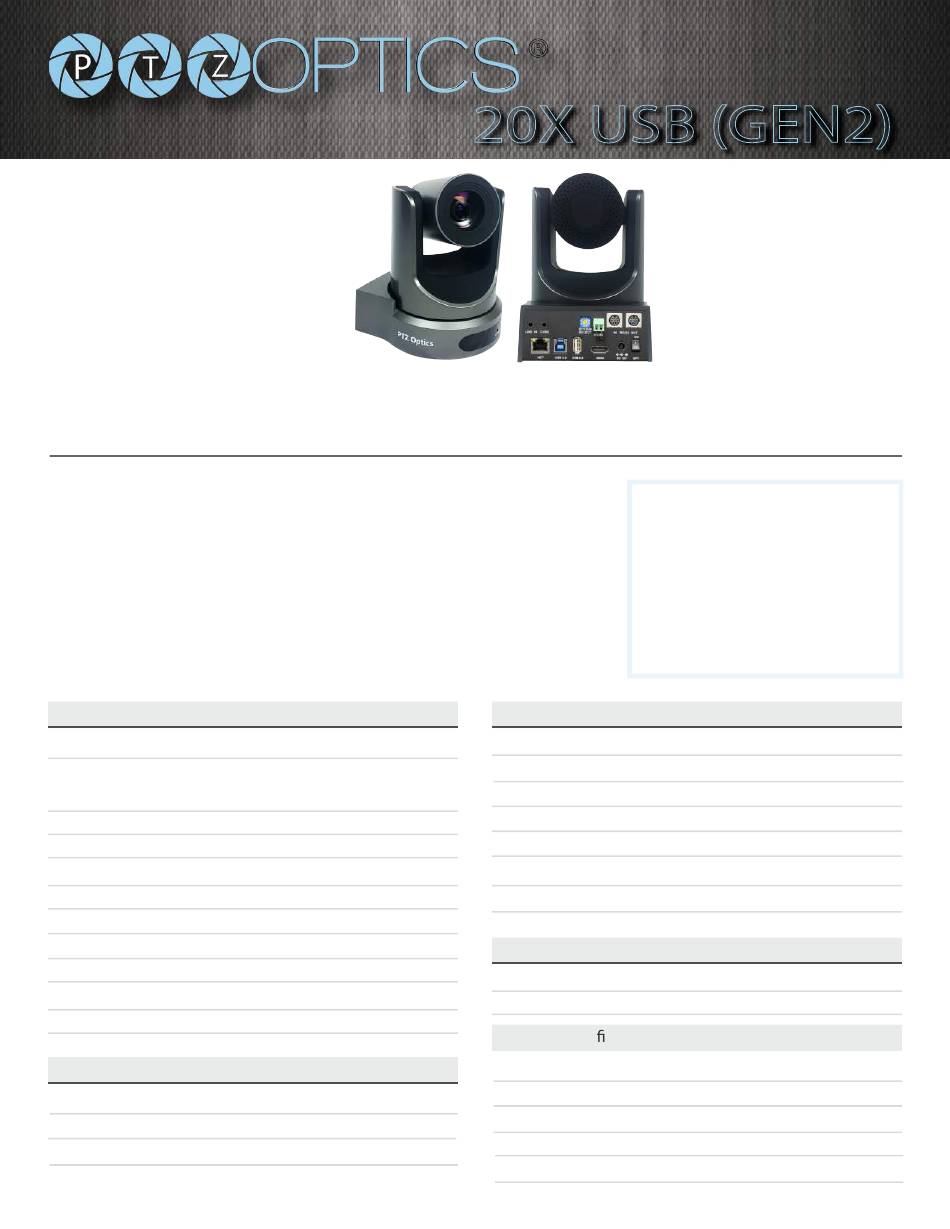

PTZ Optics PT20X-USB-GY-G2 Quick Start Manual

PTZOPTICS
Video Conferencing Camera

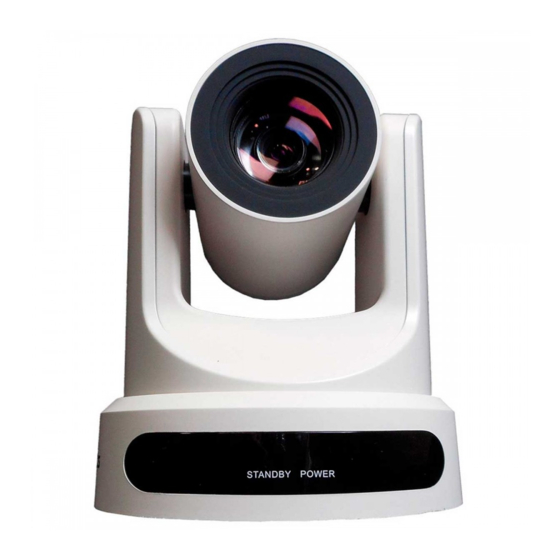

The PTZ Optics 20X-USB is a 1080p camera with 20X optical zoom for capturing HD video at long distanc-
es. With support for USB, HDMI and IP Streaming (H.264, H.265 & MJPEG) this camera is ideal for broad-
casting high definition video signals for broadcast or video conferencing applications.

KEY FEATURES

• 60.7 degree wide-angle lens.
• High performance in low illumination situations and Wide Dynamic Range.
• Full 1920x1080p HD Resolutions up to 60 frames per second.
• 2D and 3D noise reduction with our latest "low noise CMOS sensor".
• UVC 1.0, RS232, RS485 & IP Control
H.264, H.265 & MJPEG
• RJ-45
• HDMI, USB 3.0, IP Streaming (All Simultaneuos)
Camera & Lens
Video CMOS Sensor 1/2.7" CMOS, 2.12 Mega Pixels
Frame Rate 1080i/60 & 50, 1080p/60 & 50,
1080p/30 & 25, 720p/60, 50, 30 & 25
Lens 20x, F4.42mm-88.5mm, F1.8-F2.8
Lens Zoom 20x
Field of View 60.7°
Min Lux 0.5 Lux at F1.8, AGC ON
Shutter Speed 1/30s - 1/10000s
SNR ≥55dB
Vertical Flip & Mirror Supported
Horizontal Angle of View 3.36° (tele) to 60.7° (wide)
Vertical Angle of View 1.89° (tele) to 34.1°(wide)
Working Enviornment Indoor
Pan & Tilt Movement
Pan Movement ±170°
Tilt Rotation Up: 90°, Down: 30°
Presets 10 IR Presets (Up to 255 via RS-232 & UVC)
20X USB (GEN2)
Streaming port
®
Model Number:
PT20X-USB-GY-G2 (gray)
PT20X-USB-WH-G2 (white)
http://ptzoptics.com/20x-usb/
WHAT'S IN THE BOX

Rear Board Connectors

Video Output Interface USB 3.0, HDMI, IP Streaming, CVBS
Network Interface RJ45
Audio Interface Line In, 3.5mm (IP Stream Only)
Communication Interface RS-232, RS485
Baud Rate 2400/4800/9600 bits
Power Supply Interface JEITA Type Power Adapter (DC IN 12V)
USB 3.0 Interface USB 3.0 *(requires quad core processor)
USB 2.0 Interface (future use)

Electrical Index

Power Supply 12W (Max)
Input Voltage 12V DC (10.8 - 13.0V DC)
Physical Speci cations
Dimension (in.) 5.56W x 6.63H x 5.88D (7.25H w/ Tilt Up)
Dimensions milimeters 142W x 169H x 150D (185H w/ Tilt Up)
Box Dimensions 9"x9"x10" | 228mmx254mmx228mm
Camera Weight 3.10 lbs. (1.41kg)
Boxed Weight 5.4 lbs. (2.45 kg)
20X Zoom USB 3.0 Camera
Power Adapter + Cord
IR Remote Control
USB 3.0 Cable
RS-232C Cable
User Manual
Rev. 1.1 2/16
