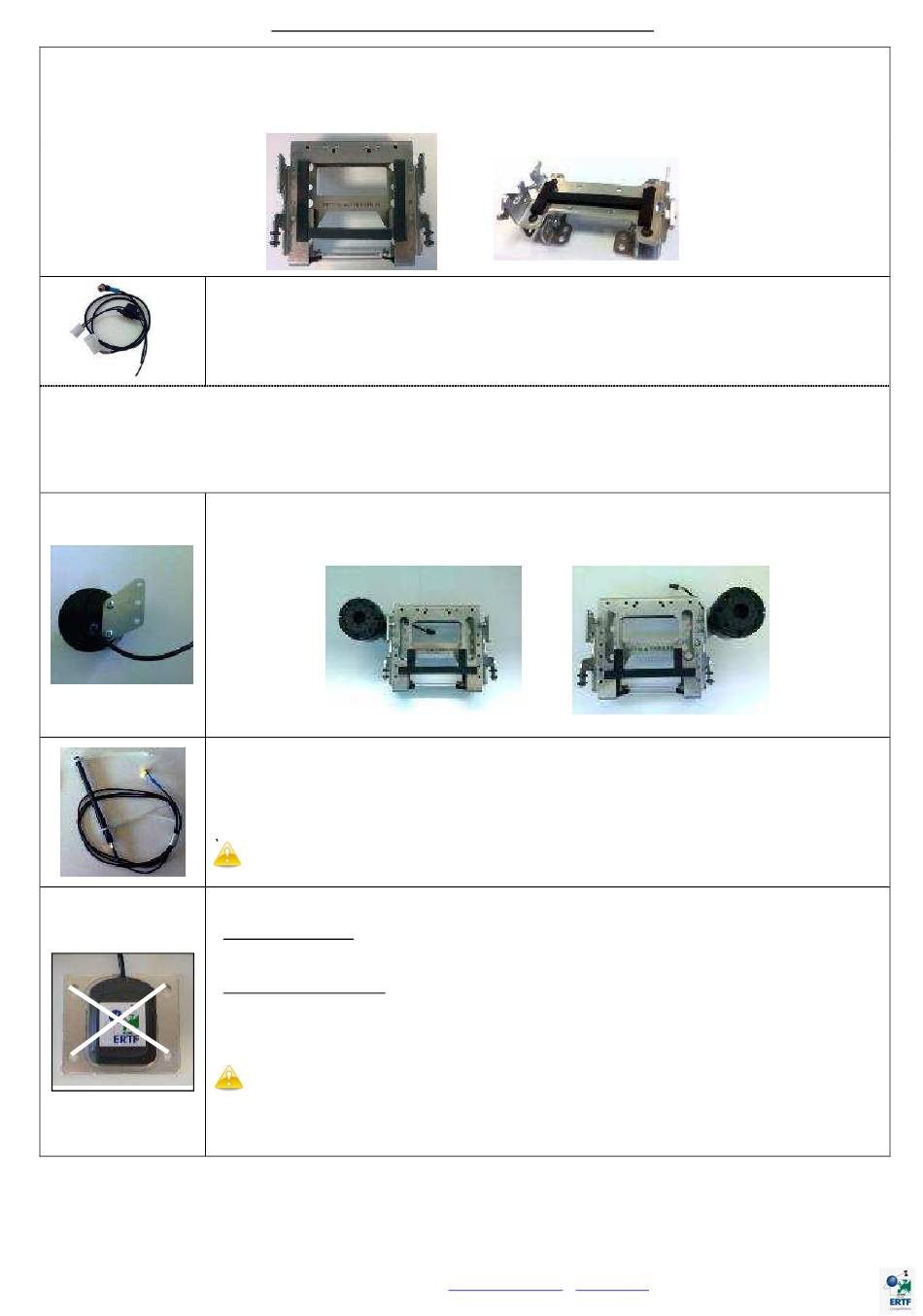

ERTF Unik2 Mounting

The GPS must be mounted on a special bracket (SUPC 201 or SUPC 202) to absorb vibrations and read data easily.
Bracket for handlebar only
Ref. SUPC-201
Power supply :
The GPS must be powered under a continuous and stabilized tension ranging from 9 to 24 V.
Careful! Connect this cable directly without using a circuit breaker.
Main power supply (internal battery full loaded):
Consumption under 12V:
- 180 mA with backlighting by default drive (60%).
100 mA with backlighting OFF
-
Buzzer Sentinel :
The buzzer is fixed on the left or right side of the support to absorb the vibrations.
Plate adapted ONLY to a fixation on the GPS bracket for handlebars (ref. SUPC-201).
Buzzer connection under the GPS.
Sentinel aerial :
Sentinel aerial is connected on the back of the GPS (blue sheath with «SENT ERTF»
inscription). The connector is spotted by a blue point.
Aerial must be fixed on handlebar or wiring sheath using the Ty-Raps and braces provided
(COMPULSORY).
GPS antenna :
- Antenna position: has to be mounted on the front of the bike (front mudguard or at the top
of the bubble or the instrumentation bracket). Fix the aerial plate directly on the mudguard.
- Secure the installation with two plastic Ty-Raps to maintain the antenna on the two
diagonals using bracket. No screw is necessary.
The antenna is not orientated, the upper part (stuck ERTF) shall point to the sky and must not
be hidden by metallic or carbon parts
Mounting advices Unik² GPS-Sentinel Bike/Quad
Autonomy/Consumption :
New advised installation :
IMPORTANT : Sentinel aerial must not be hidden
Do not pinch the cable
: Caution : no carbon, metal, backpacks... only plastic has no effect on GPS's signals.
Put the aerial cable as far as possible from the electric wires, high voltage coil and
exhaust pipe.
Do not pinch the aerial cable under the saddle or tanks.
ERTF Compétition
Parc technologique de Soye - 56275 Ploemeur Cedex Tél +33.2.97.87.25.85 - Fax +33.2.97.37.59.21
Support :
or
Supply on internal battery :
Autonomy with blacklighting "ON":
- 6h with repeater
- 16h without repeater
competition@ertf.com – www.ertf.com
Bracket for navigation
tower only
Ref. SUPC-202
