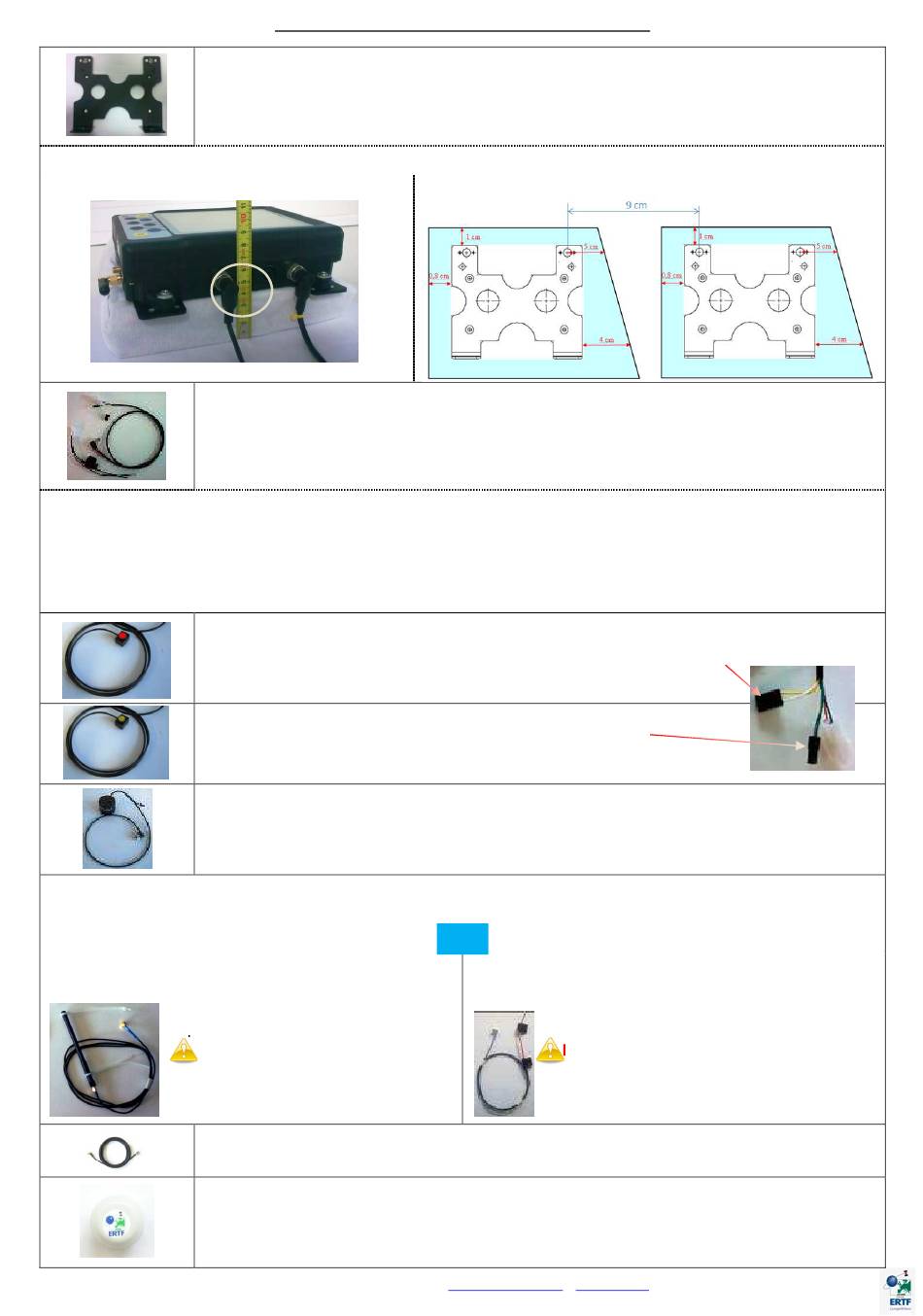

ERTF Unik 2 Quick Start Manual

Bracket : Dimensions : 180 x 155 x 24mm
The mechanical assembly shall be flexible and integrate the 4 provided silent blocks to absorb
vibrations.
GPS fixing through the bottom and binding by 2 auto-blocking screws assembled on the GPS.
For connectors, leave at least 4cm of free space
behind bracket.
Power supply :
The power supply will have to be protected by a minimal fuse of 3A and to deliver a controlled
tension ranging between 9 and 24 continuous volts.
The main circuit breaker of the vehicle has to act on the positive but the
Main power supply :
Consumption under 12V:
- 220 mA with backlighting by default drive (60%).
270 mA with backlighting ON
-
Sentinel Alarm button (red) :
The driver and the codriver must be both able to activate the Alarm Sentinel.
Alarm button is connected on the power supply cable (3 points connector).
The button must be accessible for both crew members
Sentinel push-button (yellow) :
Push-button is connected on the power supply cable (2 points
connector).
Sentinel buzzer :
Buzzer is connected on the top of the GPS.
An optional flash is directly connected to buzzer.
Sentinel aerial cable is connected on the right top of the GPS (blue sheath with « SENT ERTF » inscription). The
connector is spotted by a blue point.
Installation with the 2 collier straps and
Stick
braces given (COMPULSORY) on the
aerial
vertical roll bar on the right side, in the
top and the nearest of the windshield.
IMPORTANT : Sentinel aerial must
« see » the road and shall be located
not less than 2cm from any surface (no
installation on the dash board).
GPS cable antenna (3m) :
GPS cable antenna is connected on the right bottom side of the GPS.
GPS antenna :
A TNC type connector must be placed under the car aerial, which is fixed with an M18 wing (do
not forget to make a 20 mm-hole on the roof for the connector).
If you mount two GPS in the same vehicle, let at least 1m between the two aerials.

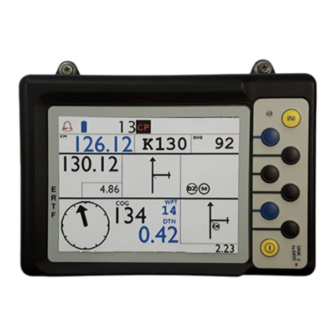

Mounting advices Unik² GPS-Sentinel Car/Truck
Minimal dimensions to apply for the bracket installation:
GPS must be directly connected.
Autonomy/Consumption
Sentinel aerial :
ERTF Compétition
Parc technologique de Soye - 56275 Ploemeur Cedex Tél +33.2.97.87.25.85 - Fax +33.2.97.37.59.21
If 2 GPS are close installed, leave at least 9cm between axes.
Supply on internal battery :
Autonomy with blacklighting "ON":
- 4h with repeater
- 9h without repeater
OR
Soft
The aerial must be fixed vertically on the right
aerial
side of the windshield in the top,
5cm from any metallic parts.
IMPORTANT: the Sentinel aerial must "see"
the road (no installation near metallic parts,
only stick it on the glass).
competition@ertf.com – www.ertf.com
at more than
