Summary of Contents for Phil Jones Bass DP-1

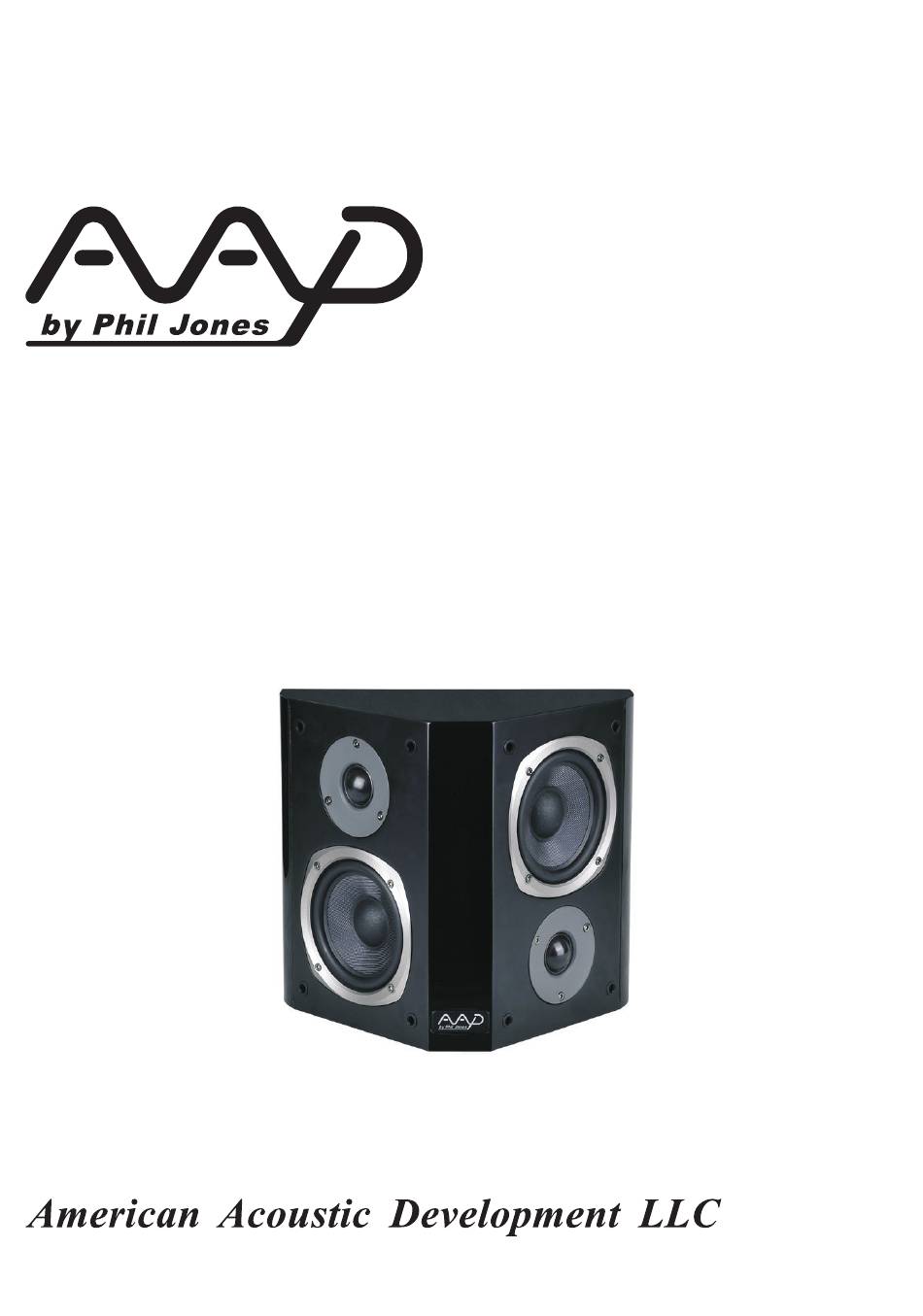

- Page 1 DP-1 Loudspeakers Owner s Information...
- Page 2 Placement (Application 1) When using the DP-1 for the surround channels in a 5-channel home theater system, refer to Figure 1. The speakers should be placed perpendicular to or slightly behind the primary listening location, as shown. Figure 1 Setting the Surround Configuration Selector It is generally recommended that the selectable surround mode configuration be set to Bipole.
- Page 3 Dolby Digital) soundtrack. Placement (Application 2) When using the DP-1 as a rear speaker(s) in a 7-channel home theater system, refer to Figure 2. The speaker(s) should be mounted on the rear wall facing the listening area, between the side channel speakers.
-
Page 4: Wiring The System
The side of the wire with a ridge or other coding is usually considered positive polarity (i.e., +). Heavier-gauge wire should be used when more than 50 feet (15m) of speaker wire is required. The wire channels on the rear of the DP-1 will accommodate most types of 14- to 18-gauge wire. -
Page 5: Specifications
IMPORTANT: Do not reverse polarities (i.e., + to – or – to +) when making connections. Doing so will cause poor imaging and diminished bass response. Figure 3. This example shows how to connect bare wires to the terminals. SPECIFICATIONS Frequency Ranges: 50Hz –... - Page 6 Warranty & Service The DP-1 speakers come with warranty period of 3 years, starting from the date of purchase. This warranty is provided to original owner, and covers defect in materials or workmanship that occurs in normal use. This warranty...
- Page 7 American Acoustic Development LLC 8509 MID COUNTY INDUSTRIAL DRIVE, ST.LOUIS MO 63114. USA Tel: 314-814-3383 Fax: 636-536-1338 www.philjonespuresound.com support@philjonespuresound.com Printed CHINA...
