- Page 1 DOLBY™ & DTS AV SIGNAL MANAGER ® Product Guide (English UK) CODE: DDSIGNALMANAGER Revision 1: 05/09/19...
- Page 2 Contents Content, In the box Features, Specifications Panel description & diagram Communicating over serial comms Example applications Conformity notice Product Guarantee Help is only an email away: support@hdanywhere.com.

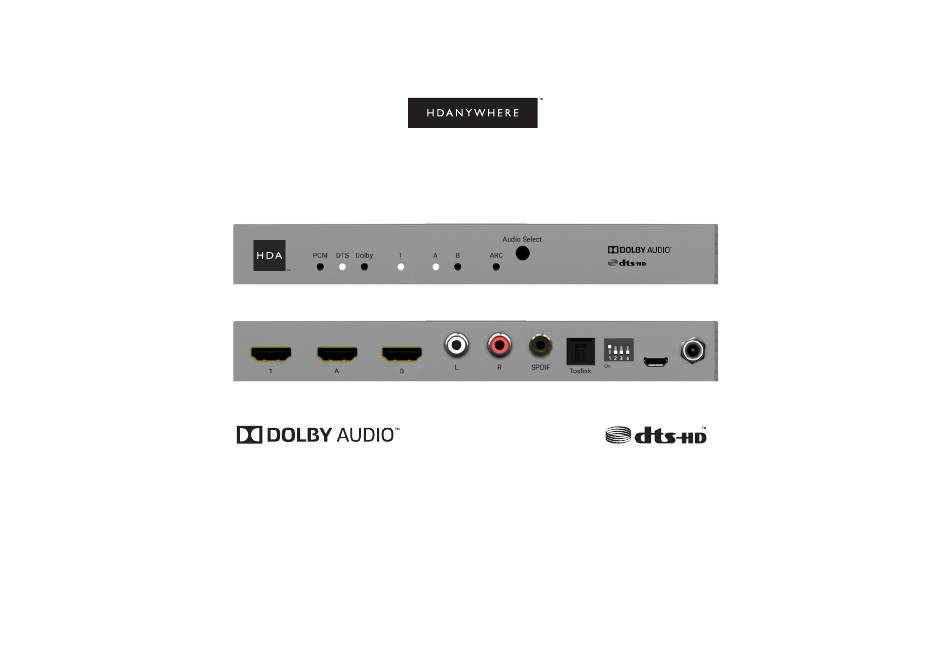

- Page 3 In the box Name: DOLBY™ & DTS AV SIGNAL MANAGER ® Product code: DDSIGNALMANAGER The DOLBY™ & DTS AV Signal Manager (DDAV) is an audio down-mixer supporting Dolby® Digital/DTS® Stereo Audio Decoding. It can be used for bypassing bitstream ® audio over HDMI and down-mixing to a secondary output which only support 2 channel stereo audio systems.
- Page 4 Control over serial non-ventilated space. Ensure that device vents are not covered and do not install near any heat sources or naked flames. Informative LED indicators CLEANING Clean the device with a dry cloth only. Help is only an email away: support@hdanywhere.com.
-
Page 5: Specification
Specification HDMI version HDMI 2.0 (a/b) Relative humidity 5 - 90% (Non-condensing) HDCP compliance HDCP 2.2 Housing Aluminium Enclosure Video bandwidth 18Gbps and above (using ICT) Colour Grey (Carbonite) Up to 4K@60Hz (4:4:4) with HDR Unit Video resolution Up to DCI 4K (4096x2160) 129 x 92 x 12 Dimensions (W/D/H) mm Colour space... -
Page 6: Panel Description
D. Audio Select: A single press will toggle between the modes described by the 6. DC5V: Power inlet. Connect the supplied power lead to this port to provide ARC indicator light. power to the device. Help is only an email away: support@hdanywhere.com. -
Page 7: Panel Diagram
Panel diagram REAR FRONT Audio Select DTS DOLBY Notice: For DTS patents, see http://patents.dts.com... - Page 8 GET OUT[X] EXA Get status of extracted audio output enabled or disabled (X=0, 0=ALL) GET OUT[X] EDID DATA Get output [X] EDID data (X=0-2) GET OUT[X] STREAM Get output [X] stream on/off status (x=0-2, 0=ALL) Help is only an email away: support@hdanywhere.com.
-
Page 9: Example Applications
Example applications HDMI Cable hub ir (IN) DISPLAY IR (IN) all IR (IN) SOURCE IR (OUT) aMP IR (OUT) Audio Cable DIGITAL STEREO DIGITAL STEREO DIGITAL STEREO DIGITAL STEREO RS232 RS232 RS232 RS232 18Gbps Source RS232 SOURCE INPUT with Dolby Digital / DTS Audio HUB CONTROL HDBASET HDMI... - Page 10 During the setup of MHUB, the HDA Pro (Installer) and End-User are required to agree to a set of terms, conditions, rules, policies and license agreements, including the HDANYWHERE Privacy Policy. These terms, notices and policies are, collectively, the “Agreements”. By installing or using MHUB, you agree to be bound by the Agreements.
