GARDENIQUE DCIPF3 Assembly Instruction Manual

Natural fiber three tier fountain and planter
Hide thumbs

Advertisement

Quick Links

Download this manual
REMINDER
CALL 1-888-755-5641
BEFORE RETURNING TO STORE.

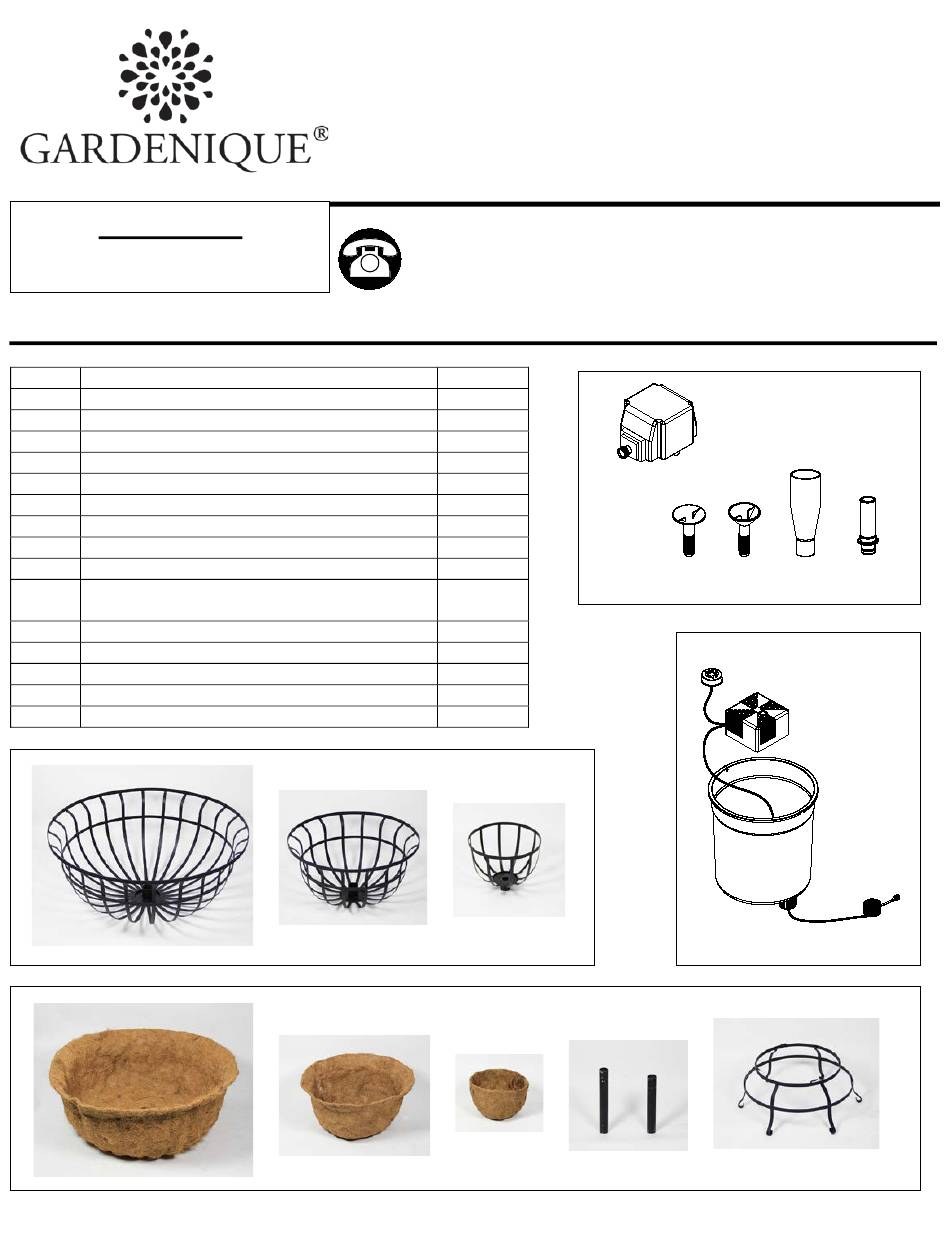

PACKAGE CONTENTS
Part
A
B
C
D
E
Connector (long)
F
Connector (short)
G
Large fiber planter
H
Medium fiber planter
I
Small fiber planter
Tank assembly (with pump, filter and LED
J
K
L
Waterbell nozzle insert
M
Trumpet nozzle insert
N
Lower fountain head nozzle
O
B
G
Natural Fiber Three Tier Fountain
and Planter
Description
Base frame
Large frame
Medium frame
Small frame
ring)
Transformer
Adapter
C
H
Questions, problems, missing parts? Before returning
to your retailer, call our customer service department at
1-888-755-5641, 8 a.m.-6 p.m., EST, Monday-Friday, or
email us at customercare@gardeniquedecor.com. Or
visit our website www.gardeniquedecor.com.
Quantity
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
D
I
K
M
L
A
E
F
ITEM # DCIPF3
O
N
J

Advertisement

loading
Need help?

Need help?

Do you have a question about the DCIPF3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GARDENIQUE DCIPF3

Summary of Contents for GARDENIQUE DCIPF3

  • Page 1 Natural Fiber Three Tier Fountain and Planter ITEM # DCIPF3 REMINDER Questions, problems, missing parts? Before returning to your retailer, call our customer service department at CALL 1-888-755-5641 1-888-755-5641, 8 a.m.-6 p.m., EST, Monday-Friday, or BEFORE RETURNING TO STORE. email us at customercare@gardeniquedecor.com. Or visit our website www.gardeniquedecor.com.
  • Page 2 WARNINGS AND CAUTIONS: PUMP WARNING • Do not exceed the voltage shown on the pump. • Always disconnect pump from the power source before beginning any maintenance or work on the pump. • Inspect cord for damage before installation and/or maintenance. Replace the entire pump assembly if damage is found.
  • Page 3 2. Put the fiber planter inside the frame. Fig. 2 Fig. 2 3. If hole is not present in the large fiber planter, make a hole appropriately 2 in. diameter in the bottom of the large fiber planter. Fig. 3 Fig.
  • Page 4 5. Install the medium frame. Fig. 5 Fig. 5 6. Put the medium fiber planter inside the frame. Fig. 6 Fig. 6 7. If a hole is not present in the medium fiber planter, make a hole appropriately 2 in. diameter in the bottom of the medium fiber planter.
  • Page 5 8. Install the long connector. Fig.8 Fig. 8 9. Install the small frame. Fig. 9 Fig. 9...
  • Page 6 10. Put the small fiber planter inside the frame. Fig. 10 Fig. 10 11. If a hole is not present in the small fiber planter, make a hole approximately 3/4 in. diameter in the bottom of the small fiber Hole for power planter by pushing the plug by hand.
  • Page 7 12. Run the cord of pump through the new hole and connector. Then place the tank assembly inside the small fiber planter. Fig. 12 NOTE: Rock and pebbles are NOT INCLUDED. Fig. 12 13. Put soil inside the large and medium fiber planter, then place plants in.
  • Page 8 14. Connect the adapter to the pump, then attach the LED ring. Fig.14 LED ring Adapter Fig. 14 15. Choose a fountain head for the desired water effect, and assemble your choice as shown in Fig. 15. Note: Place fountain head loosely on the extension tube to allow for easy adjustment and preclude excessive splashing once the water is flowing.

  • Page 9: Maintenance Procedure

    18. Plug the transformer into a properly grounded electrical GFCI outlet. Fig. 18 Note: Adjust the fountain head and extension tube to achieve desired effect Fig. 18 MAINTENANCE PROCEDURE 1. Unplug the pump, and remove it from the container. Fig. 19 Fig.

  • Page 10: Troubleshooting

    4. Reassemble the pump and filter box kit. Fig. 22 Fig. 22 CARE AND MAINTENANCE - PUMP • Regular cleaning of the pump may be necessary depending upon the environment in which it is operated. Clean the pump when it is visibly soiled or when a drop in performance is detected. •...

  • Page 11: Replacement Parts List

    REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 1-888-755-5641, 8 a.m.-6 p.m., EST, Monday-Friday. Part Description Transformer Waterbell nozzle insert Trumpet nozzle insert Lower fountain head nozzle Adapter Pump with LED light Base plate Filter block Filter cover Bulkhead fitting Gasket...

  • Page 12: Limited Warranty

    This warranty period begins on the date of purchase by the original purchaser. Unless otherwise specified all GARDENIQUE® electrical products are warranted to the user against defective material and workmanship, under normal working conditions for 1 year from the date of purchase.
