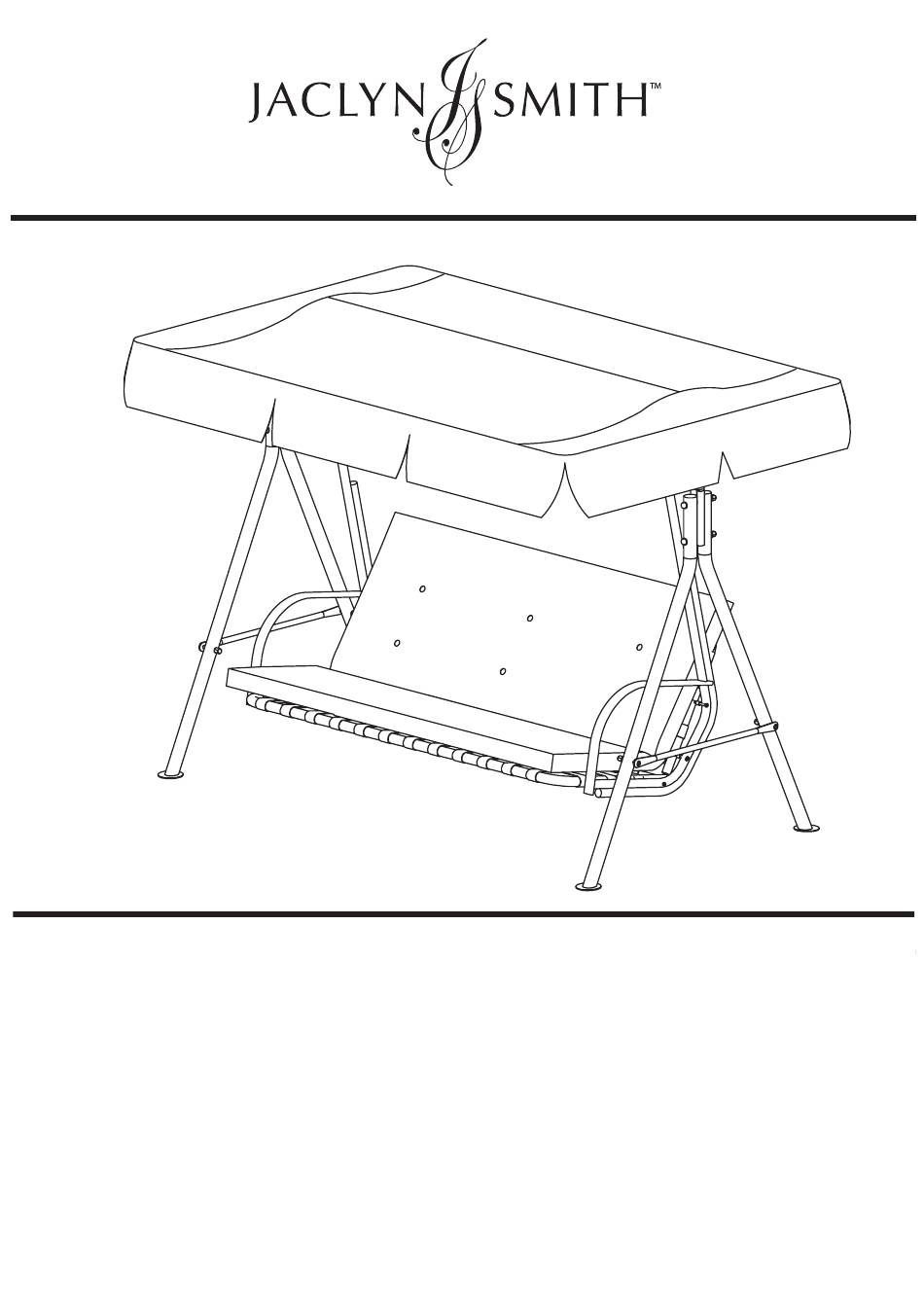

- Page 1 OWNER’ S MANUAL ADDISON SWING Product code: 0-03843271-2 UPC code: 769455 761293 Vendor Item: SC-160-2NGS Date of purchase:_____/_____/_____...
-
Page 2: Item Description
PARTS Read through all the instructions before beginning assembly. Unpack and identify all the parts. Place them on a flat, non-abrasive surface. Assembly by two people is recommended. ITEM DESCRIPTION QUANTITY Top Frame Bar Top Frame Bar Leg Crossbar Canopy Side bar with Teeth Mechanism Canopy Side Bar Strap Seat and Back Edge Ba... - Page 3 ACCESSORIES Jk (1) Ja (1) M6 Short Bolt Lock Washer Jl (2) Jb (4) Teeth Washer M6 Medium Bolt Jm (4) Jc (8 + 1 spare) Small Plastic Sleeve M6 Long Bolt Jd (2) Jd (2) Jn (8) Large Plastic Sleeve M8 Short Bolt M8 Short Bolt Je (4)
- Page 4 ASSEMBLY INSTRUCTIONS Ja x 1 M6 Short Bolt Jf x 1 M6 Nut Ji x 2 M6 Metal Washer Don’t tighten completely. Je x 4 M8 Long Bolt Jg x 4 M8 Nut Jj x 8 M8 Metal Washer Don’t tighten completely. Repeat procedure for the other side.
- Page 5 Jb x 4 M6 Medium Bolt Jf x 4 M6 Nut Ji x 4 M6 Metal Washer Jm x 4 Small Plastic Sleeve Note: the “inside” sticker faces inside. Don’t tighten completely. Repeat procedure for the other side. Securely tighten all bolts and nuts. Jc x 4 M6 Long Bolt Jf x 4...
- Page 6 Jc x 4 M6 Long Bolt Jf x 4 M6 Nut Ji x 8 M6 Metal Washer Jn x 4 Large Plastic Sleeve Don’t tighten completely. Repeat procedure for the other side. Jl x 2 Jd x 1 Teeth Washer M8 Short Bolt M8 Short Bolt Jo x 1...
- Page 7 Jd x 1 M8 Short Bolt M8 Short Bolt Jj x 1 M8 Metal Washer Jo x 1 Knob Secruely tighten the knobs.
-
Page 8: Care Instructions
Securely tighten all bolts. Now your swing is ready for use. CARE INSTRUCTIONS Wash with a mild solution of soap and water; rinse thoroughly. Dry completely. Do not use bleach or solvents. Cover furniture with outdoor furniture covers when not in use. Please refer to part numbers when reordering For questions or comments about product: Call toll-free: 1-800-457-4652...
