Veritas Appliance
Hardware Service Procedure
Replacing a 16Gb Fibre Channel SFP optic module: Veritas
appliances
Document Number: 211
Version: 1.3 (05/04/2020)

Purpose

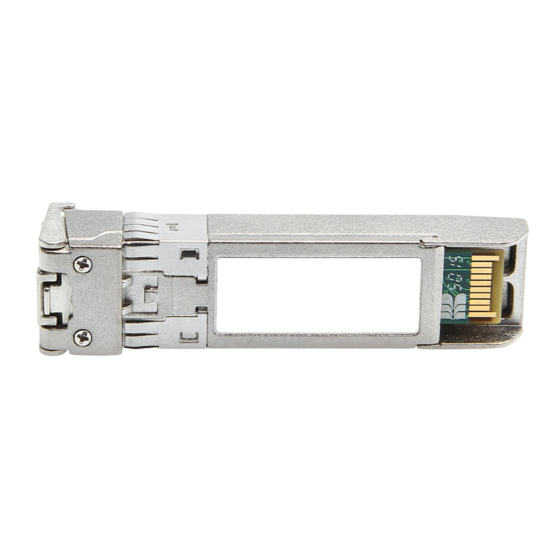

This document describes the process for replacing the 16Gb FC SFP optic transceiver modules
located on the rear of a Veritas appliance.

Affected appliance models

5240 Appliance
5250 Appliance
5340/5340 HA Appliance

Electrical Safety

The static discharged by human bodies can damage static-sensitive components on the boards.
When installing and maintaining the equipment, observe appropriate electrostatic safety precautions
to prevent personnel injuries or device damage.
When operating a device in an electrostatic sensitive area, you must take electrostatic-discharge
(ESD)-preventive measures. These include wearing ESD-preventive gloves, an ESD-preventive wrist
strap, and ESD-preventive clothes to avoid personnel injury or device damage.
To prevent damage to the device, pay attention to the following during operations:
Do not touch devices with bare hands because ESD from the human body may damage the
electrostatically sensitive elements on a board.
When dealing with the server or any of the internal components, wear an ESD-preventive wrist
strap, ESD-preventive gloves, and ESD-preventive suit.

High availability (HA) appliance service considerations

Attention: A HA or multi-node appliance is serviced in the same manner as a single node appliance.
