Si4703 FM Radio Receiver Hookup Guide

CONTRIBUTORS:

TONI_K



FAVORITE

Introduction

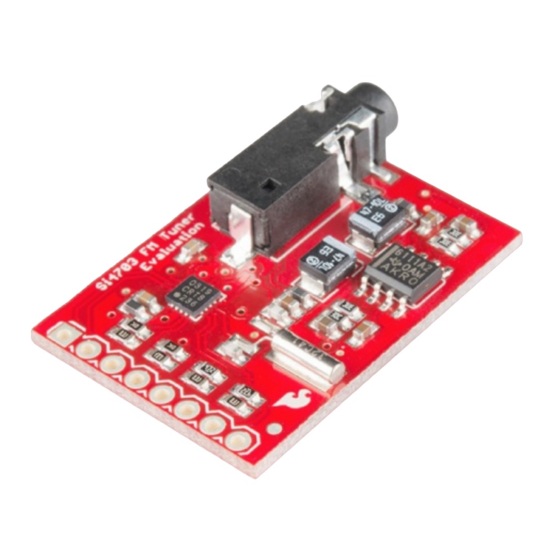

This breakout board enables you to tune in to FM radio stations, using the Si4703 FM tuner chip from Silicon Laboratories. This IC also works well for filter and carrier

detection, and enables data such as the station ID and song name to be displayed to the user.

Required Materials

You will need the following materials to work on this project.

Si4703 HookUp Guide

SparkFun Wish List

Jumper Wires Premium 6" F/F Pack of 10

PRT08430

This is a SparkFun exclusive! These are 155mm long jumpers with female connectors on both ends. Use these to jumper from any male header on any board,...

Break Away Male Headers Right Angle

PRT00553

A row of right angle male headers break to fit. 40 pins that can be cut to any size. Used with custom PCBs or general custom headers.**Features: ***...

SparkFun FTDI Basic Breakout 3.3V

DEV09873

This is the newest revision of our [FTDI Basic](http://www.sparkfun.com/commerce/product_info.php?products_id=8772). We now use a SMD 6pin header on ...

Arduino Pro Mini 328 3.3V/8MHz

DEV11114

It's blue! It's thin! It's the Arduino Pro Mini! SparkFun's minimal design approach to Arduino. This is a 3.3V Arduino running the 8MHz bootloader. Ar...

Keep in mind you will also need standard soldering materials to complete this tutorial, as well as either a set of speakers or headphones with a 3.5mm jack to plug into the

Si4703 board.

Need help?

Do you have a question about the Si4703 and is the answer not in the manual?

Questions and answers

Summary of Contents for sparkfun Si4703

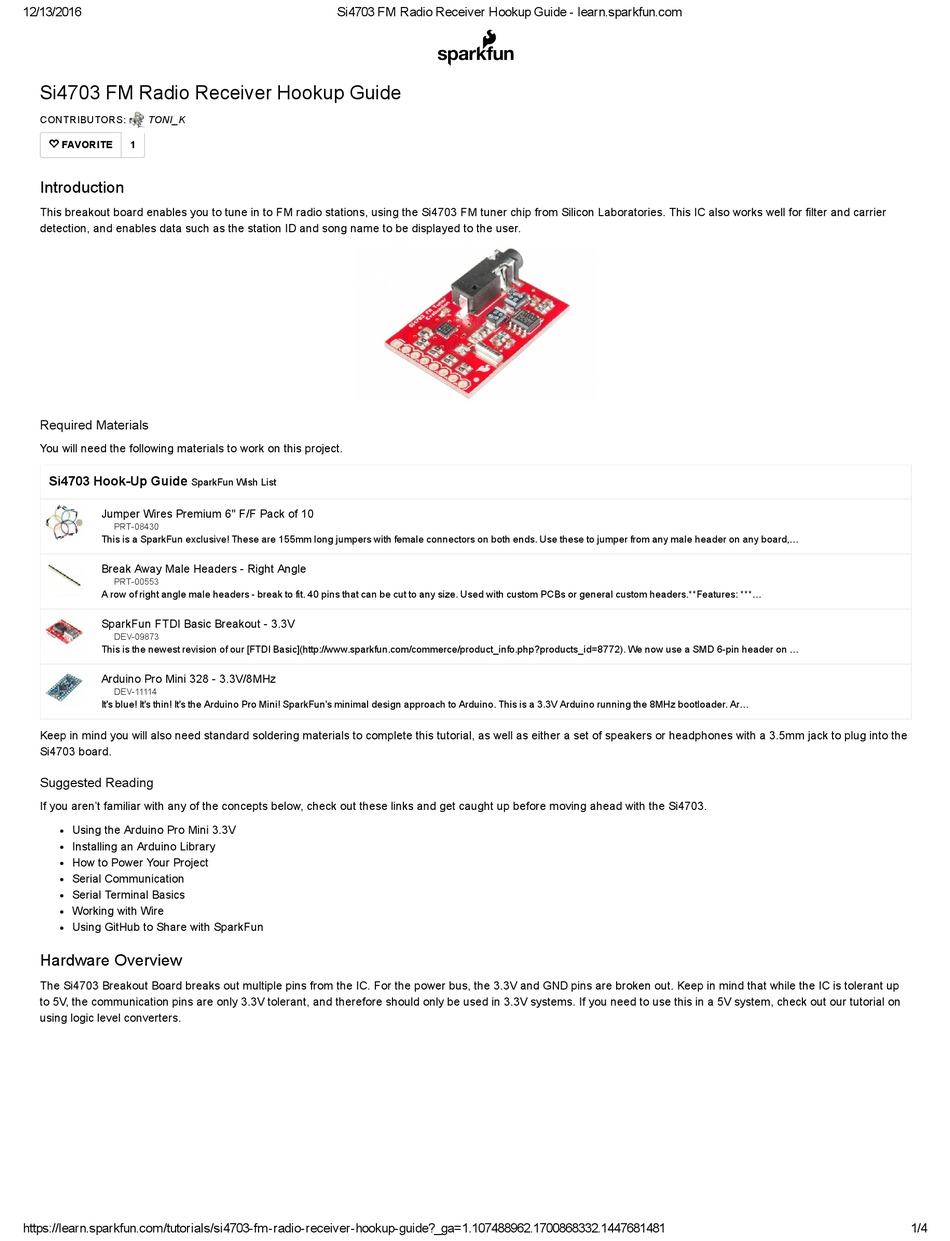

Page 1 12/13/2016 Si4703 FM Radio Receiver Hookup Guide learn.sparkfun.com   Si4703 FM Radio Receiver Hookup Guide CONTRIBUTORS: TONI_K  FAVORITE Introduction This breakout board enables you to tune in to FM radio stations, using the Si4703 FM tuner chip from Silicon Laboratories. This IC also works well for filter and carrier detection, and enables data such as the station ID and song name to be displayed to the user. Required Materials You will need the following materials to work on this project. Si4703 HookUp Guide SparkFun Wish List Jumper Wires Premium 6" F/F Pack of 10 PRT08430 This is a SparkFun exclusive! These are 155mm long jumpers with female connectors on both ends. Use these to jumper from any male header on any board,… Break Away Male Headers Right Angle PRT00553 A row of right angle male headers break to fit. 40 pins that can be cut to any size. Used with custom PCBs or general custom headers.**Features: ***… SparkFun FTDI Basic Breakout 3.3V DEV09873 This is the newest revision of our [FTDI Basic](http://www.sparkfun.com/commerce/product_info.php?products_id=8772). We now use a SMD 6pin header on … Arduino Pro Mini 328 3.3V/8MHz DEV11114 It's blue! It's thin! It's the Arduino Pro Mini! SparkFun's minimal design approach to Arduino. This is a 3.3V Arduino running the 8MHz bootloader. Ar… Keep in mind you will also need standard soldering materials to complete this tutorial, as well as either a set of speakers or headphones with a 3.5mm jack to plug into the Si4703 board. Suggested Reading If you aren’t familiar with any of the concepts below, check out these links and get caught up before moving ahead with the Si4703. Using the Arduino Pro Mini 3.3V Installing an Arduino Library How to Power Your Project Serial Communication Serial Terminal Basics Working with Wire Using GitHub to Share with SparkFun Hardware Overview The Si4703 Breakout Board breaks out multiple pins from the IC. For the power bus, the 3.3V and GND pins are broken out. Keep in mind that while the IC is tolerant up...
