Glamox LMS MG PIR CLS SENSOR-R LONG Manual

Presence detector
EN

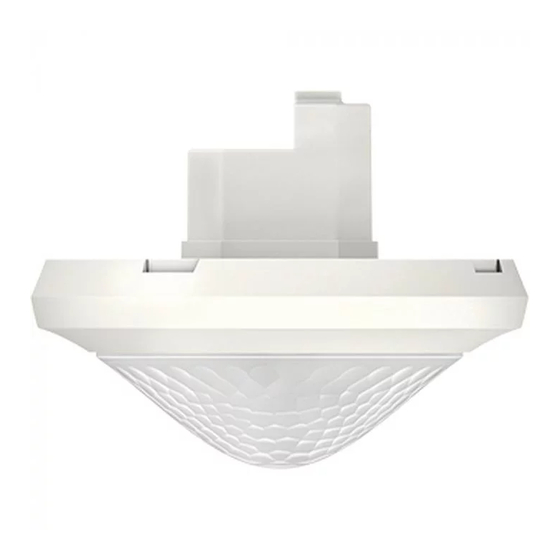

LMS MG PIR CLS SENSOR-R LONG
B29004003
1. General information
•
Passive infrared presence detector for ceiling installation
•
2 operating modes for lighting channel, switchable:
– 1 DALI broadcast lighting channel (factory setting) or
– 2 DALI addressable lighting channels
•
2 separate detection zones
•
Rectangular detection area (max. 30 m x 5 m/150 m
•
Switch or constant light control mode
with standby function
•
Mixed light measurement suitable for fluorescent lamps
(FL/PL/ESL), halogen/incandescent lamps and LEDs
•
Adaptable 2-channel light measurement
•
Fully or semi-automatic operation, switchable
•
Reduction of time delay when present briefly (short-term
presence)
•
1 presence channel for external DALI relay, e.g. for HVAC
control
•
Accessories: Surface mounting on ceilings possible with
back box LMS MG SURFACE MNT FRAME (B29011002),
optional; user remote control LMS MG USER REMOTE
(B29012001), optional; app remote control LMS MG
PROGRAM REMOTE BT (B29012003) optional, and the
corresponding Glamox Sensor-app (iOS/Android); safety
cover LMS SENSOR SAFETY COVER (B29011001), optional
2. Safety
Assembly and installation should only be carried
out by a qualified electrician, somebody who has
completed appropriate professional training and
has the knowledge and experience necessary to be
able to recognise and avoid the potential dangers
posed by electricity.
Before assembly/dismounting, disconnect the
power supply and ensure that the parts are no
longer live.
Read the entire manual and follow the instructions.
Prior to commissioning and using the product, read
the operating instructions.
3. Proper use
307204
•
The presence detector is used in passageways, stairca-
ses, garages, basements and warehouses for controlling
the lighting and HVAC.
•
The presence detector is intended for indoor installation.
4. Installation
Detection area
L The rectangular detection area enables the entire corridor
to be covered.
L The detection area is divided into two zones. These can
be activated or deactivated individually by remote control
(only with 1 DALI broadcast lighting channel).
)
2
L Recommended installation height: 2.0 m–6.0 m.
The sensitivity of the presence detector decreases when
the installation height is increased. From a installation
height of 3.5 m, the detection areas of several detectors in
the edge zones should overlap.
L The detection range is reduced as the temperature
increases.
L The detection area is divided into different areas based on
the walking direction (frontal/across).
Detection areas: zone 1 and zone 2 (factory setting)
A
Zone 1
Installation height
(A)
2.0 m
2.5 m
3.0 m
3.5 m
4.0 m
4.5 m
5.0 m
5.5 m
6.0 m
All figures are guidance values.
r
Zone 2
Walking persons Walking persons
frontal (r) across (t)
16 x 3.5 m (56 m ) 16 x 3.5 m (56 m
2
18 x 4 m (72 m ) 22 x 4 m (88 m
2
20 x 4.5 m (90 m ) 30 x 4.5 m (135 m
2
20 x 5 m (100 m ) 30 x 5 m (150 m
2
20 x 5 m (100 m ) 30 x 5 m (150 m
2
20 x 5 m (100 m ) 30 x 5 m (150 m
2
20 x 5 m (100 m ) 30 x 5 m (150 m
2
20 x 5 m (100 m ) 30 x 5 m (150 m
2
20 x 5 m (100 m ) 30 x 5 m (150 m
2
r
t
t
)
2
)
2
)
2
)
2
)
2
)
2
)
2
)
2
)
2
1
