User Guide
DERMALOG Fever Detection Application
Version 1.1
March 27, 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FLC1 and is the answer not in the manual?

Questions and answers

Related Manuals for Dermalog FLC1

Summary of Contents for Dermalog FLC1

  • Page 1 User Guide DERMALOG Fever Detection Application Version 1.1 March 27, 2020...
  • Page 2 This page is intentionally left blank. DERMALOG Fever Detection Application User Guide...
  • Page 3 The data contained in the examples are fictitious, unless otherwise noted. DERMALOG Identification Systems GmbH is not liable for any direct or indirect damages because of or in connection with the use of the documentation as far as there is no deliberate or grossly negligent conduct.

  • Page 4: Revision History

    EVISION HISTORY Revision history Document Software Version Version Date Author Changes 1.23.4.0 2020-03-20 DERMALOG Initial document 1.26.0.0 2020-03-27 DERMALOG Adaption to software changes Table 1: Revision history DERMALOG Fever Detection Application User Guide...

  • Page 5: Table Of Contents

    4.2.2 Perform a manual calibration using a medical thermometer ..................14 Best practices ..........................16 4.3.1 Observe the operating conditions for the DERMALOG FLC1 ..................16 4.3.2 Position person and device properly .......................... 16 4.3.3 Mind the person’s individual conditions ........................17 How do I …? ........................

  • Page 6: Introduction

    Fever is the major symptom of infections like COVID-19, called “coronavirus” (see Figure 1). Figure 1: Fever as the major symptom of COVID-19 The DERMALOG FLC1 detects the body temperature of a person in order to make a preselection. The temperature detection is no medical fever measurement. In suspected cases a reference measurement with the clinical thermometer is necessary.

  • Page 7: Audience

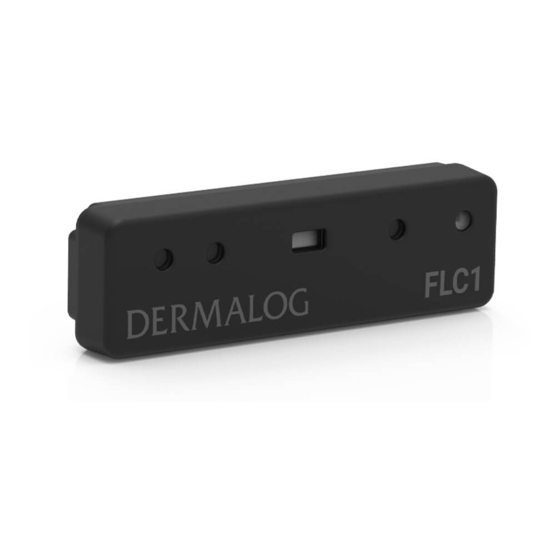

    UDIENCE 1 Audience This document is provided for the operator of the DERMALOG FLC1. 2 Document conventions TERMS AND DEFINITIONS Term Definition FLC1 DERMALOG’s camera for contactless measuring of persons’ body temperatures COVID-19 Dangerous viral disease effecting people’s lungs and airways, also known as “coronavirus”...

  • Page 8: Overview

    In today´s world of fast global travel, outbreaks of infectious diseases can cross national borders within the shortest time. The DERMALOG Fever Detection Application is designed for a fast and reliable fever check without disrupting passenger flow. The system is easy to use and detects persons with elevated body temperature accurately.

  • Page 9: Before You Start

    EFORE YOU START 4 Before you start 4.1 Installation process 4.1.1 Technical requirements To run the DERMALOG Fever Detection Application, your computer must meet the following hardware requirements:  Processor Intel i3/ 9th generation up to Intel i5/ 8th generation (or equivalent) ...
  • Page 10 STEP 3 Select the check box and click the Install button.  The software is being installed.  The application files are stored in the directory c:\Program Files\DERMALOG\FeverDetectionApp.  A message shows the successful completion. DERMALOG Fever Detection Application User Guide...

  • Page 11: Calibrate The Application

    DERMALOG Fever App Bundle installed. FINISH: You have installed the application. Calibrate the application This chapter shows you how to calibrate the DERMALOG Fever Detection Application. Calibration is required:  After installation  Whenever the ambient temperature changes by more than 2 degrees ...
  • Page 12 EFORE YOU START START: STEP 1 If the DERMALOG Fever Detection Application is already running, press Ctrl + R simultaneously on the keyboard and skip Step 2.  The Fever Detection screen for automatic calibration is shown. STEP 2 If the DERMALOG Fever Detection Application is not yet running, click the Dermalog Fever Detection App icon in the Windows Desktop.
  • Page 13  The Fever Detection screen for automatic calibration is shown. STEP 3 Place three test persons before the FLC1 at a distance of 0.5 to 2 m and watch the temperature shown on the screen above their heads. Replace a person if his/her temperature seems extreme.

  • Page 14: Perform A Manual Calibration Using A Medical Thermometer

    STEP 2 Stand before the FLC1 at a distance of 0.5 to 2 m and watch the temperature shown on the screen above your head. If there is no difference, calibration is not required and the following steps can be skipped.
  • Page 15  The Fever Settings window closes. STEP 6 Repeat Step 2 to verify the calibration. A difference of up to 0.3 degrees can be accepted. Otherwise repeat the calibration. FINISH: You have performed a manual calibration using a thermometer. DERMALOG Fever Detection Application User Guide...

  • Page 16: Best Practices

    EFORE YOU START 4.3 Best practices Follow these recommendations to protect the DERMALOG FLC1 and to obtain the best results for measuring the person’s body temperature. 4.3.1 Observe the operating conditions for the DERMALOG FLC1 Only use the DERMALOG FLC1 indoors.

  • Page 17: Mind The Person's Individual Conditions

    Avoid too many persons in the screening area The system works reliable for up to five persons within the captured area at the same time. If this is exceeded, people may pass through the area without being recognized by the camera. DERMALOG Fever Detection Application User Guide...

  • Page 18: How Do I

    5 How do I …? Measure a person’s body temperature using the DERMALOG FLC1 The DERMALOG FLC1 detects the body temperature of a person in order to make a preselection. The temperature detection is no medical fever measurement. In suspected cases a reference measurement with the clinical thermometer is necessary.
  • Page 19 OW DO START: STEP 1 Let the person to be screened stand before the DERMALOG FLC1 at a distance of 0.5 to 2 m. For positioning the person before the camera, note the recommendations in chapter 4.3 to get best results.

  • Page 20: Error Messages

    If so, unplug the cable from the computer interface and plug it in again. Restart the application. Table 5: Error messages 7 Additional documentation  DERMALOG FLC1 User Guide DERMALOG Fever Detection Application User Guide...
  • Page 21 This page is intentionally left blank.
  • Page 22 883 North Bridge Road, #17-02 Tel: +60-3-20921316 Philippines 198785 Singapore Fax: +60-3-20921690 Tel: +63 2 683 7500 asia@dermalog.com asia@dermalog.com Fax: +63 2 856 1138 office.manila@dermalog.com © 2020 All content and images are owned by DERMALOG Identification Systems GmbH and are actively protected by copyright.
