JMP Skan 60.0 Manual

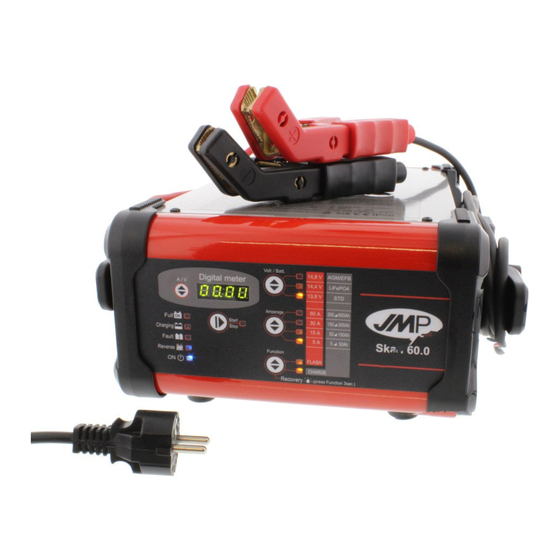

Skan 60.0
Battery Charger
JM-No. 609 01 99
Scope of supply:
JMP Skan 60.0, adapter cable with clips,
power cable
Thank you for choosing a JMP Skan battery charger. The JMP Skan 60.0 battery charger is suitable for use as a
power source for the diagnosis/flashing of control units and the charging of batteries.
Technical data:
12 V / 5-60 A, for batteries from 5 Ah to 600 Ah
Dimensions: 300 x 400 x 150 mm, weight: 5.9 kg, power cable: 1.7 m, connection cable: 2.7 m
Suitable for:
• Standard lead acid
• Gel
• AGM
• EFB
• Lithium (LiFePO4)
Safety information:
• Please read this operating manual through carefully before using the battery charger. Failure to comply with
this safety information can result in serious injuries.
• The device must not be used for purposes other than those specified herein.
• Do not use the device in explosive atmospheres or in the vicinity of flammable materials, as it may produce
sparks which can ignite dust or fumes.
• Store out of reach of children. This device is not a toy and must not be used as such.
• Do not inhale any gases escaping the battery.
• The battery acid is corrosive. In case of accidental contact between the acid and the skin or eyes, rinse imme-
diately under running water and consult a doctor.
• Use the battery charger in a dry, well ventilated environment and avoid moisture.
• Verify that the device is in full working order before using it.
• Improper use and unauthorised modification of the device void all warranty claims.
• Always wear safety goggles and protective clothes when connecting and disconnecting the battery and keep
the battery away from your face.
• Never allow the two clips to come into contact with each other.
• The device and power cable must only be repaired and serviced by authorised specialist personnel.
• Switch off all unnecessary consumer loads in the vehicle before connecting up the device.
