KAUGJUHTIMISSÜSTEEMID
TELECONTROL
SYSTEMS

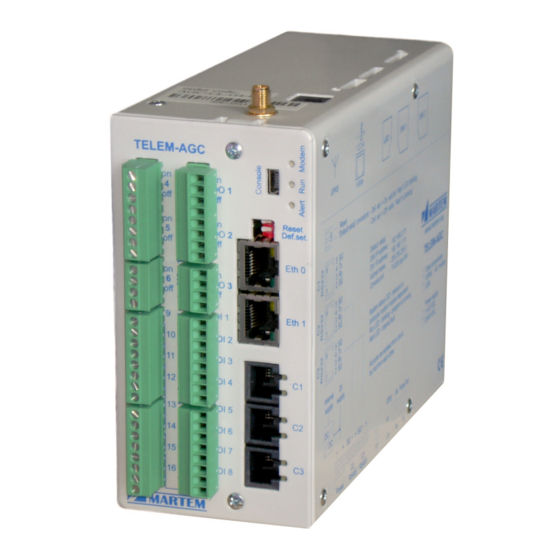

Data Concentrator TELEM-AGC
User Manual
Martem AS
2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TELEM-AGC and is the answer not in the manual?

Questions and answers

Related Manuals for Martem TELEM-AGC

Summary of Contents for Martem TELEM-AGC

  • Page 1 KAUGJUHTIMISSÜSTEEMID TELECONTROL SYSTEMS Data Concentrator TELEM-AGC User Manual Martem AS 2019...

  • Page 2: Table Of Contents

    Contents 1. INTRODUCTION ..........................3 2. FEATURES ............................3 3. TECHNICAL DATA..........................5 4. TERMINAL CONNECTIONS ......................7 5. COMMUNICATION CABLES ......................8 6. FIRMWARE UPDATE ........................10 7. USING CONFIGURATION FROM SD CARD................... 11 8. DIP SWITCHES..........................11 9. INDICATION LED-S.......................... 11 10.

  • Page 3: Introduction

    Data Concentrator TELEM-AGC User Manual Rev. 4 / 2019 1. Introduction TELEM-AGC is designed for use in electrical networks as communication concentrator, firewall and 4G/3G/2G modem. The software bases on Linux operating system. Main usage is communication device and RTU (Remote Terminal Unit) in electrical substations for data exchange between various substation devices and control centres.
  • Page 4 • Configuration export to ASCII, CSV format files • Configuration can be stored in SD card, which can used in replacement RTU • TELEM RTU devices can be remotely configured via TELEM-AGC • Logical operations between digital and analog signals •...

  • Page 5: Technical Data

    • IEC 61850 (licence can be linked to SD card and transferred to another RTU) Communication ports Depending on hardware configuration TELEM-AGC can have up to 5 Ethernet ports, and 7 serial communication ports. Ports can be freely configured for upper or lower level communication.
  • Page 6 AS Martem Data Concentrator TELEM-AGC User Manual Rev. 4 / 2019 Expansion modules • Module C • 4 x RS-485/232 • Module D • 8 optically isolated dry contact digital inputs (connected to dry contacts) • 3 double digital outputs (relay contacts max. 0.3A 110VDC, 2A 30VDC, 0.5A 125VAC)

  • Page 7: Terminal Connections

    AS Martem Data Concentrator TELEM-AGC User Manual Rev. 4 / 2019 4. Terminal Connections RJ9-4P4C SIM 2 SIM 1 1-WIRE UPSIDE GPRS Antenna OPTIONAL INTERFACES Telem-AGC See order codes MAIN BOARD, FRONT PANEL Modem DO 4 DO 1 Console Alert...

  • Page 8: Communication Cables

    AS Martem Data Concentrator TELEM-AGC User Manual Rev. 4 / 2019 5. Communication cables The newer models of RTU-T have & pin RJ12 RS232 connectors, older - 4 pin RJ9 AS MARTEM Tel: +372 639 7979 martem@martem.eu www.martem.eu...
  • Page 9 AS Martem Data Concentrator TELEM-AGC User Manual Rev. 4 / 2019 AS MARTEM Tel: +372 639 7979 martem@martem.eu www.martem.eu...

  • Page 10: Firmware Update

    (provided by Martem AS) choose Update From File • If you do not have .7z firmware update file choose Check martem.ee to refresh exsisting firmware versions list for this AGC-L device • Press Update to feature and choose needed firmware version. Download is starting...

  • Page 11: Using Configuration From Sd Card

    ALERT – red LED – failure Green LED-s on serial communication ports for RX, TX indication. 10. Configuration tool The Telem-AGC device is configured with Telem-GWS software. The configuration process is described in Telem-GWS software manual AS MARTEM Tel: +372 639 7979 martem@martem.eu...

  • Page 12: Data Objects Simulator

    AS Martem Data Concentrator TELEM-AGC User Manual Rev. 4 / 2019 11. Data objects simulator The values of measurement objects of IEC 61850 and other protocols can be simulated on RTU’s web page for testing the communication between RTU and SCADA •...

  • Page 13: Order Code

    AS Martem Data Concentrator TELEM-AGC User Manual Rev. 4 / 2019 12. Order code TELEM-AGC-XX-XX-XX-(XX) Modification B - Basic modem & router C - Data concentrator Power L - 11...33 V DC H - 20...60 V DC Extra communication S – FO SC serial G –...

  • Page 14: Maintenance Guidelines

    14. Open-source software information This device produced by Martem includes open-source components. The most up to date info of exact software used by Martem’s build system and licensing info of used software can be found from http://phobos.martem.ee/shr/br-sources/...
