Red Stone 58813TS Manual

Red Stone 58813TS Manual

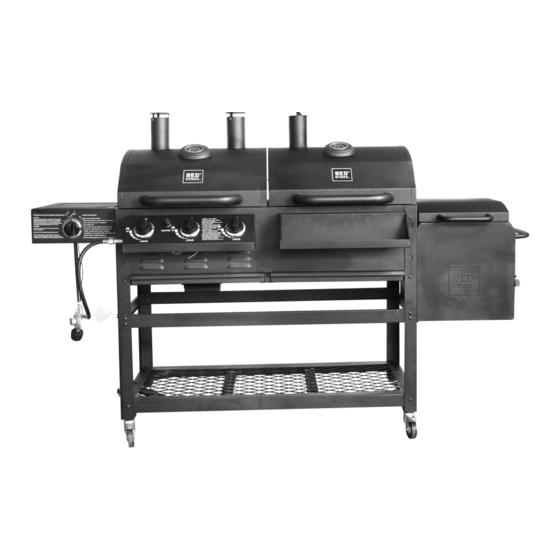

Gas & charcoal grill

Advertisement

Quick Links

� Read this grill guide before attempting to assemble or operate your grill.
� Follow all safety instructions.
� Check for your leaks according to directions in this grill guide before operating
your grill, even if you purchased this grill assembled.
� Keep this grill guide for future reference.
Always read and follow all
notices in this grill guide. Failure to follow these notices may result in
property damage, bodily injury,or death.
1. Grill installation must conform with local codes, or in their absence, with either the
National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane
Installation Code, CSA B149.1, or Propane Storage and Handling Code, B149.2.
" " " " Before
Before
Before
Before returning
returning to to to to your
returning
returning
1-877-292-9888
with
1-877-292-9888
1-877-292-9888
1-877-292-9888 with
with
with hours
1
your retailer,
your
your
retailer, call
retailer,
retailer,
hours
hours of of of of operation
operation
9:00am
hours
operation
operation 9:00am
9:00am – – – – 5:00pm
9:00am
call
call our
call
our customer
our
our
customer
customer
customer service
5:00pm
EST,
5:00pm EST,
5:00pm
EST,
EST, Monday
MODEL: 58813TS
service
service department
service
department at at at at
department
department
Monday
Friday.
Monday – – – – Friday.
Monday
Friday." " " "
Friday.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 58813TS and is the answer not in the manual?

Questions and answers

Summary of Contents for Red Stone 58813TS

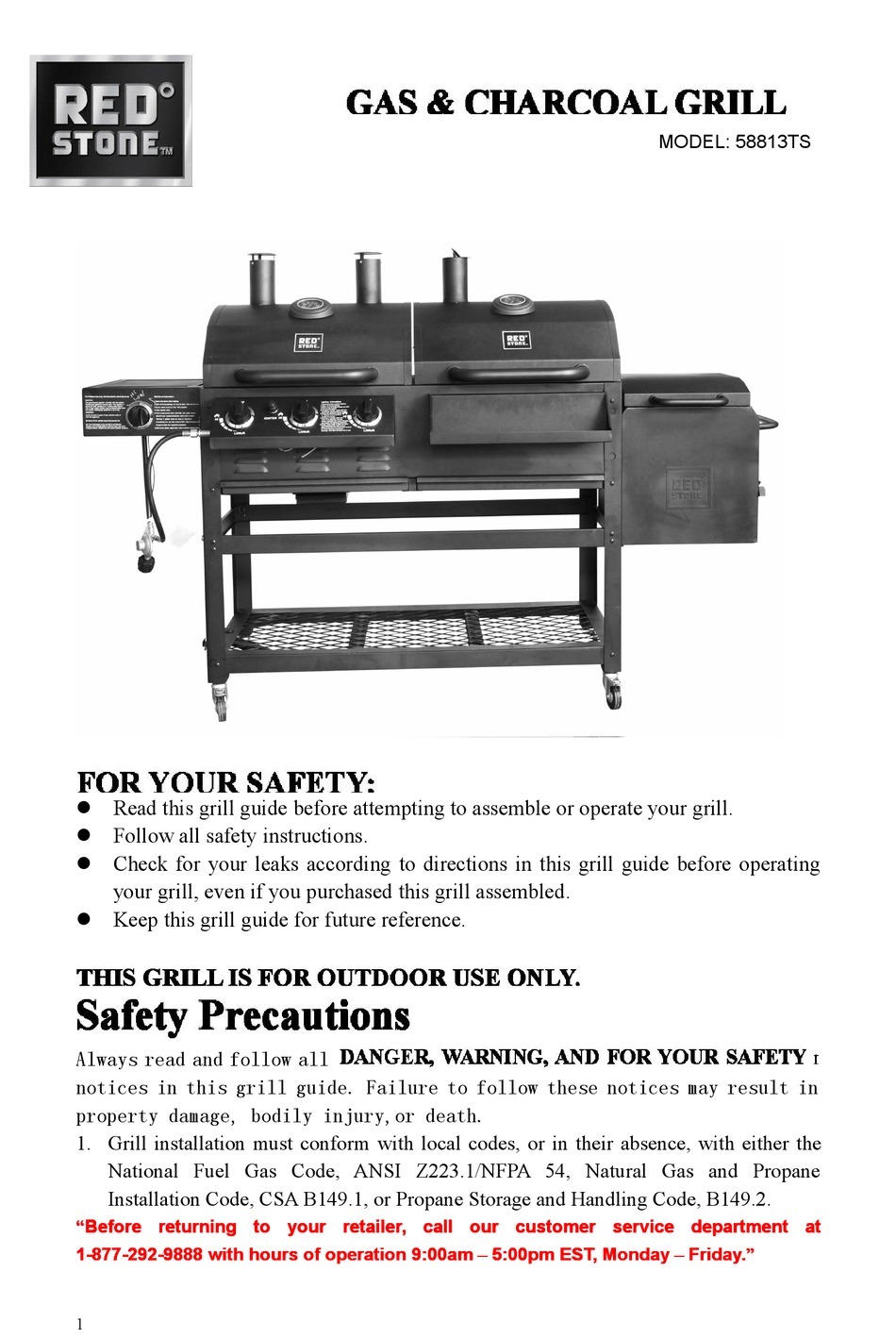

  • Page 1 MODEL: 58813TS � Read this grill guide before attempting to assemble or operate your grill. � Follow all safety instructions. � Check for your leaks according to directions in this grill guide before operating your grill, even if you purchased this grill assembled.
  • Page 2 This gas grill, when installed, must be electrically grounded in accordance with local codes, or, in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSAC22.1. This gas grill is intended for outdoor use only, and should not be used in a building, garage, or any other enclosed area.
  • Page 3 Parts Parts List List Parts Parts List List (1)Lid Handle Base-4pcs (2)Lid Handle -4pcs (3)Stack ( Gas)-2pcs (4)Stack ( Gas) cover-2pcs (5)Thermometer Bottom-2pcs (6) Thermometer-2pcs (7 )Stack ( Charcoal)-1pc (8) Chimney Lid-1pc (9)Warming Rack-2pcs (10)Cooking Grate-4 (11)Lifter-2pcs (12)Charcoal Panel-1pc (13)Flame Shield-3pcs (14)Burner-3pcs (15)Side Burner with Regulator and hose-1pc...
  • Page 4 (16)Knob-4pcs (17) Firebox-1pc (18-1)Gas Lid (18-2)Charcoal Lid (19)Gas Tank Hook-1pc ( 20)Control Panel-1pc (21)Accessories-1pc (22)Smoker Side Handle-1pc (23)Smoker Handle Base-4pcs (24)Smoker (25)Smoker Handle-1pc (26)Smoker Charcoal Grate-1pc (27)Smoker Cooking Grate-2pcs...
  • Page 5 (28)Smoker Ash Pan-1pc (29)Drip Pan-1pc (30)Grease tray-1pc (31)Ash Pan-1pc (32)Stabilizing Plate(Left)-1pcs 33Stabilizing Plate-2pcs (34)Stabilizing Plate(Right)-1pc (35)Gas Tank -1pc (36)Legs 4pcs (37)Caster-4pcs (38)Bottom Shelf-1pc (39)Fire Rod...
  • Page 6 Hardware List Hardware Hardware Hardware List List List ( H) Battery(AA) Qty: 1pc (A)M8 Nut Qty: 1pc (B)Spring Qty: 1pc ( I ) Hinge Pins Qty: 4pcs (C) M5×8bolt Qty:9pcs (J ) Cotter Pins Qty: 4pcs (D) M6×12bolt Qty:68pcs (E) M6×25bolt Qty: 8pcs (F) M6 Nut Qty:58pcs...
  • Page 7 Before assembly read instruction carefully.Assemble grill on a clean, flat surface. This unit is heavy. 1.Attach the gas Lid(18-1) and charcoal lid(18-2) to the firebox (17) by inserting hinge pins (I) through the holes on the upper hinges and lower hinges Insert cotter pins (J) into the ends of the hinge pins (I).
  • Page 8 4.Take out casters (37) and screw them tightly into the bottom holes of legs. 5.Turn the grill assembly upright and attach Stabilizing Plate(Left)(32),Stabilizing Plate(33),Stabilizing Plate(Right)(34) to the legs.Use hardware M6 x 12 bolts(D)and M6 Nuts (F). 6.Install the ash pan (31)and Install the drip pan (30) under the gas section.
  • Page 9 7.Assemble accessories shelf (21) charcoal section using hardware M6 x 12 bolts (D). See illustration below. 8.Assemble the control panel (20) to the gas section by using hardware M6 x 12 bolts (D). Install the knobs (16) to the panel. Tighten all connections.
  • Page 10 9.Attach the burners (14) into gas valve body using hardware M5 × 8bolt(C). See the illustration as below. 10. Install the knobs (16) to the side burner with regulator and hose (15). Assemble the side burner to the body. Use hardware M6 x 12 bolts (D) and M6 Nuts (F).Insert the regulator as shown.
  • Page 11 11.Attach theSmoker Side Handle (22) with Smoker Handle Base(23)and the Smoker Handle (25) with Smoker Handle Base(23)to the Smoker (24) using M6× 25bolts (E). And to the firebox Use hardware M6 x 12 bolts(D)and M6 Nuts (F). Tighten all connections at this time.
  • Page 12 13.Position Lifters (11) Charcoal Panel(12). Raise and position Lifters (11) on side supports in grill body. Install the flame shields (13) over the burner. 14.The thermometer Bottom(5) to the lid using M6 × 35 bolts(G) and M6 Nuts (F) , Unscrew the pre-assembled nut from the Thermometer (6).
  • Page 13 16.Insert warming racks (9) tab into hole of each grill lid and bottom end. 17.Place the cooking grates (10) into each grill body. Two pieces of each section.
  • Page 14 18. The grill is now assembled. This This This This charcoal charcoal charcoal charcoal grill grill grill grill is is is is warranted warranted warranted warranted for for 1 1 1 1 year year year year against against against against broken broken broken broken or or or or damaged...
  • Page 15 OPERATION OPERATION OPERATION OPERATION INSTRUCTIONS INSTRUCTIONS INSTRUCTIONS INSTRUCTIONS This grill has an adjustable charcoal tray. By turning the crank handle, the charcoal tray can be raised or lowered to desired height. This allows for different heat settings depending on the food you are cooking and the temperature you want to cook at. It also allows easy cleaning of the interior of the firebox after the unit has cooled down completely.
  • Page 16 OPERATION OPERATION INSTRUCTIONS INSTRUCTIONS OPERATION OPERATION INSTRUCTIONS INSTRUCTIONS Controlling Fire Controlling Controlling Controlling the the Fire Fire Fire � Allow enough time for properly building the fire and getting the grill up to desired temperature before attempting to cook. You simply cannot cook properly in a cold grill, nor can you nurse a fire to life while busy with the food.
  • Page 17 OPERATION INSTRUCTIONS OPERATION OPERATION OPERATION INSTRUCTIONS INSTRUCTIONS INSTRUCTIONS Cooking Cooking Cooking Cooking Methods Methods Methods Methods You can use your GRILL to cook three different ways – depending on the type of food, and how you want to prepare it. GRILLING �...
  • Page 18 OPERATION OPERATION OPERATION OPERATION INSTRUCTIONS INSTRUCTIONS INSTRUCTIONS INSTRUCTIONS SMOKING WOODS � Adding smoking woods to your CHARCOAL GRILL is an easy and effective way to create wonderful flavor combinations for all types of grilled, barbecued, or slow smoked foods. Wood chips are typically used for shorter cooking times, where chunks are better for longer cooking times.
  • Page 19 CARE CARE MAINTENANCE MAINTENANCE CARE CARE AND AND MAINTENANCE MAINTENANCE Grill Maintenance Grill Grill Grill Maintenance Maintenance Maintenance Frequency of cleaning is determined by how often the grill is used. Make sure coals are completely extinguished and the grates are cooled down before cleaning inside of the unit. To remove the stains on the lid and front panel caused by the fumigation while grilling, use of a cleaning pad is recommended.
