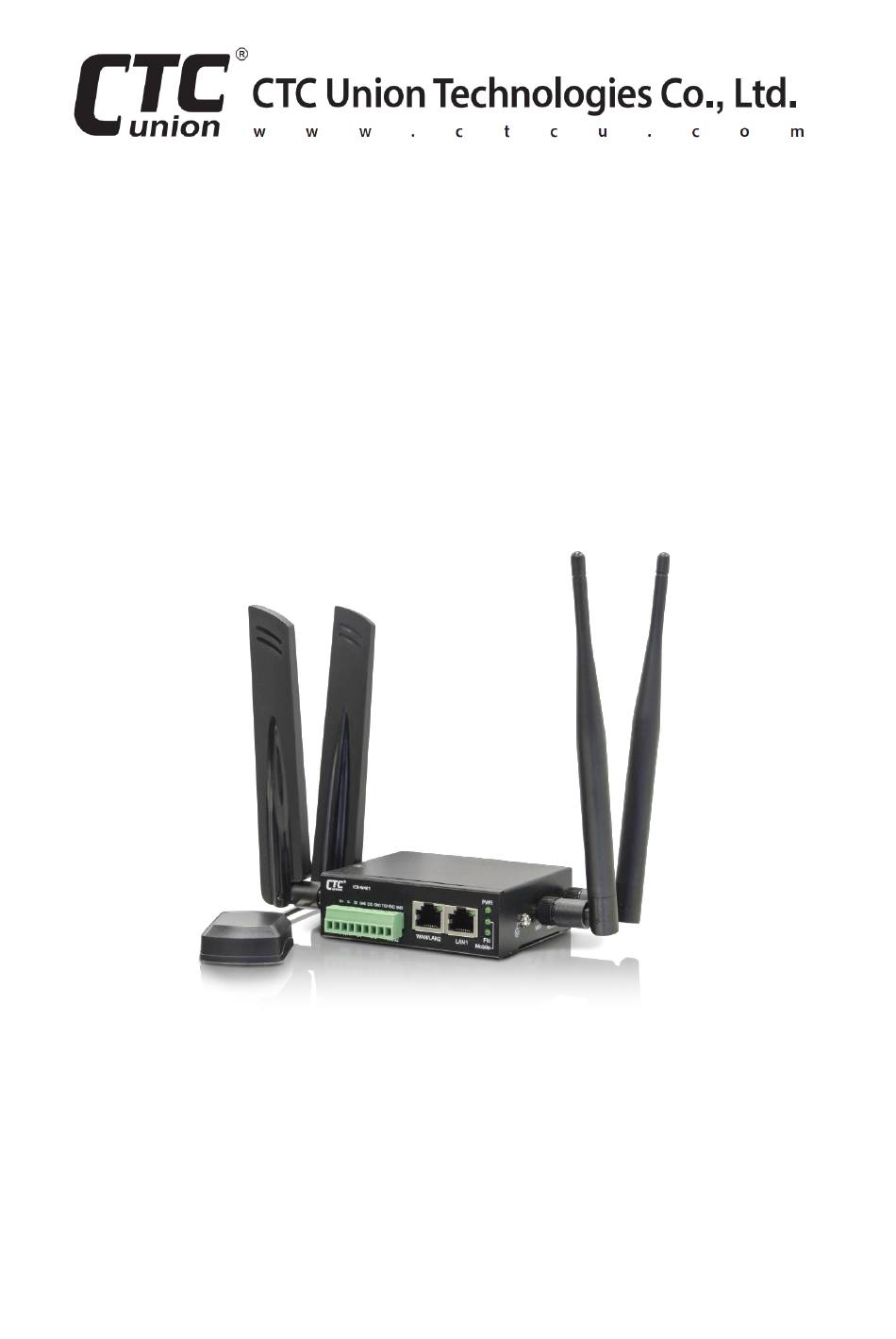

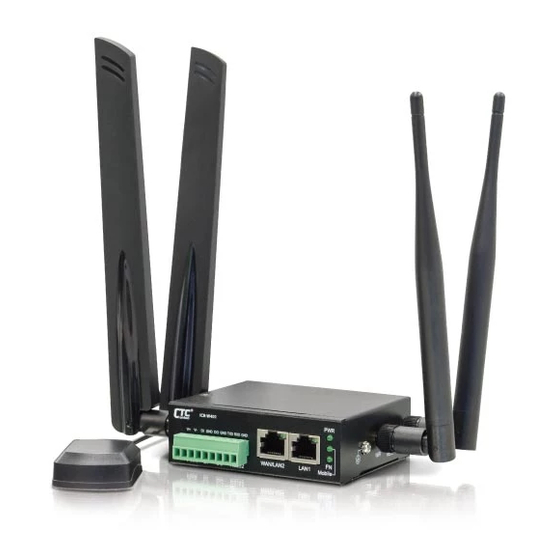

- Page 1 Quick Installation Guide ICR-W401 4G LTE WiFi IEEE 802.11b/g/n 2T2R Router sales@ctcu.com...
- Page 2 8F, No. 60 Zhouzi St., Neihu, Taipei 114, Taiwan T +886-2-26591021 F +886-2-26590237 E sales@ctcu.com H www.ctcu.com 2019 CTC Union Technologies Co., LTD. All trademarks are the property of their respective owners. Technical information in this document is subject to change without notice.
-
Page 3: Table Of Contents
Table of Contents Introduction .................. 4 Package List ................. 4 Features ..................4 Specifications ................5 Panel ..................... 7 Earth Ground Connection ............8 LED Indicators ................8 CLI & Web Basic Operation ............9 Installation .................. 10 Regional Code and Band Information ........11 Application .................. -
Page 4: Introduction
Integrated with WAN, LAN, SIM, VPN, Firewall, built-in DI/DO and serial port services, ICR-W401 routers are easy to be configured through embedded Web user interface. Additionally, they adopt higher level of industrial grade design which is the ideal solution for Industrial Internet... -
Page 5: Specifications
Specifications Interface 1 x Micro SIM card slot (push-push type) 2 x SMA connectors for detachable LTE antenna 2 x RP-SMA for WiFi antenna 1 x WAN (10/100Base-TX) RJ-45 1 x LAN (10/100Base-TX) RJ-45 1 x DI (non-isolated) and 1 x DO (non-isolated) ... - Page 6 Power Support removable terminal block Power input: 12/24/48VDC (9.6~60VDC) Power consumption: 7W (Max.) Mechanical IP30 grade housing protection Fanless design Dimensions: 30 mm (W) x 92 mm (H) x 75 mm (D) Mounting: DIN rail mounting or Wall mounting (Optional) ...
-
Page 7: Panel
Panel Figure 1. Front Panel Figure 2. Left Side Panel Figure 3. Right Side Panel Index No. Description Fast Ethernet RJ-45 LAN port Fast Ethernet RJ-45 WAN or LAN port Terminal block for PWR, DI, DO, RS232 LED indicators (PWR, Mobile, FN) Micro SIM card slot Mobile MAIN connector Mobile AUX connector... -
Page 8: Earth Ground Connection
Earth Ground Connection An earth ground connector is provided on the left side panel. Grounding the device can help to release leakage of electricity to the earth safely so as to reduce injuries from electromagnetic interference (EMI). Prior to connecting to the power, it is important to connect the ground wire to the earth. -
Page 9: Cli & Web Basic Operation
CLI & Web Basic Operation ICR-W401 are 4G-LTE cellular routers with WiFi function for industrial uses. Initial assignment of IP address may be accomplished via Command Line Interface (CLI). Once the desired IP address has been configured, a web browser can be used to configure the device through a more easy-to-use graphical user interface (GUI). -
Page 10: Installation
Installation The router can be installed on the DIN rail or mounted on the wall. When installing the DIN rail or wall-mounting bracket, be sure to correctly align the orientation pin. Figure 5. DIN Rail Figure 6. Wall Mount The router with DIN Rail bracket has a steel spring in the upper rail of the bracket. -
Page 11: Regional Code And Band Information
Regional Code and Band Information Band 4G LTE Regions or Region Countries GSM/ FDD LTE WCDMA Code EDGE B1(2100), B3(1800), Europe, Africa, B1(2100), B3(1800), B38(2600), B5(850), B8(900) Middle East, B5(850), B7(2600), B40(2300), B8(900) Korea, India, B8(900), B20(800) B41(2500) Thailand B2(1900), USA (AT&T, T- B2(1900), B4(1700), B4(1700),... - Page 12 Version Date Description 0.9b 2019/10/21 Use new document format 0.9c 2019/12/27 User A4 document format...
