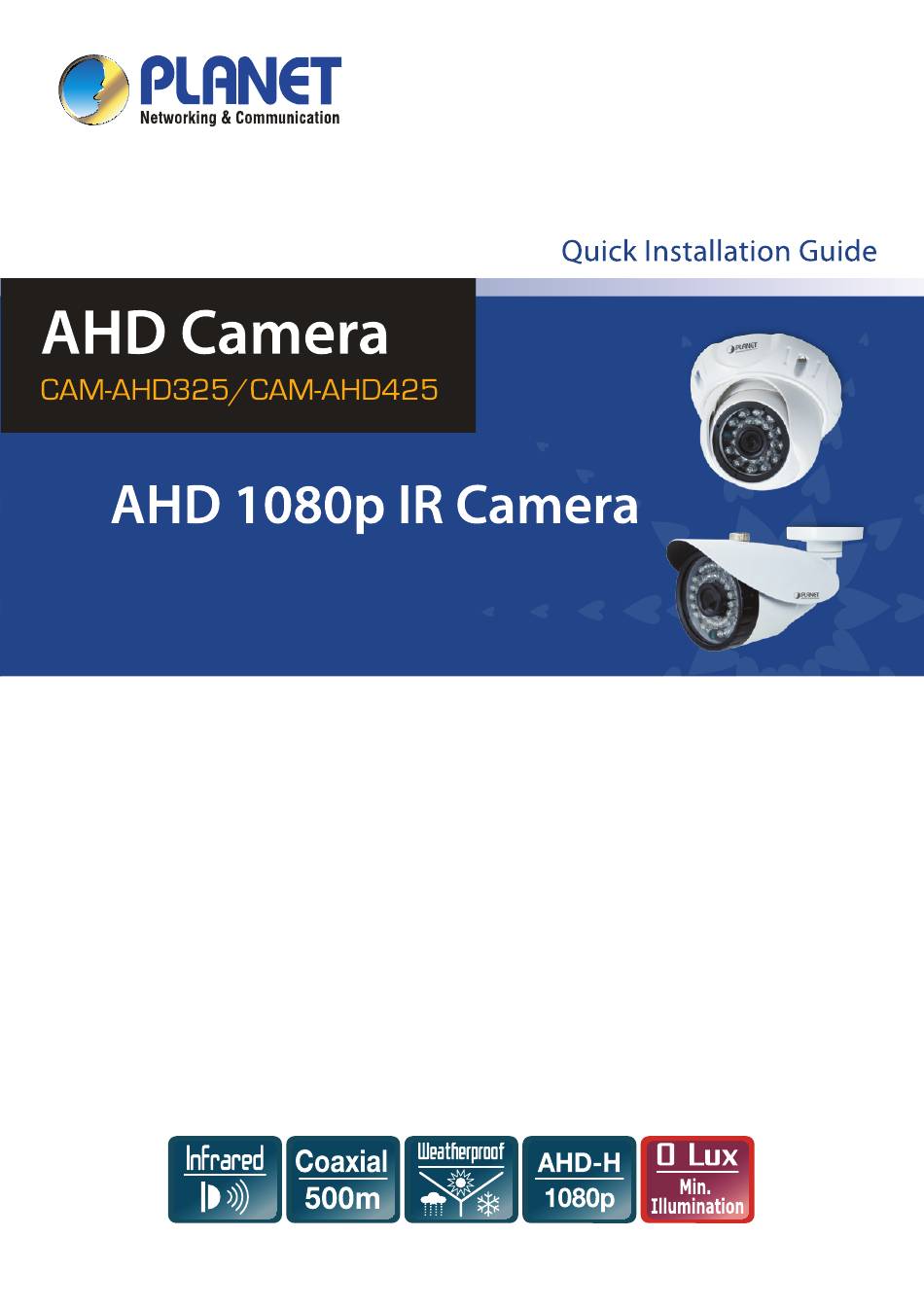

Summary of Contents for PLA.NET CAM-AHD325
-
Page 2: Packet Contents
1. Packet Contents VERIFY THE CONTENTS INSIDE THE PACKAGE BOX The package should contain the items plus CAM-AHD325/ CAM-AHD425. If any item is missing or damaged, please contact the seller immediately. Hex wrench x 1 Quick installation guide x 1... -
Page 3: Physical Introduction

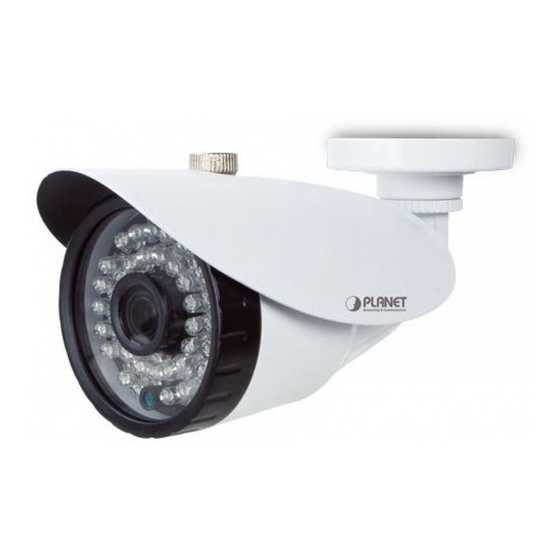

2. Physical Introduction CAM-AHD325 CAM-AHD425 IR LED Sunshield IR LED OSD Control Button Video Output Power Input Connector Description Power Input Connect to a 12V DC power adapter. Video Output BNC connector for analog video output. – 2 –... -
Page 4: Hardware Installation
3. Hardware Installation 1. Place the camera in a suitable location and attach with screws. 2. Adjust the camera to the correct direction. 3. Connect video output connector to your AHD DVR. 4. Connect a 12V DC power adapter to the Power Input connector. - Page 5 Setting Steps 1. Exposure 2. Digital Noise Reduction 3. Special Functions 4. Adjust – 4 –...
-
Page 6: Specifications
5. Specifications Product Model CAM-AHD325 CAM-AHD425 Camera Sensor SONY 1/2.8” 2MP CMOS Effective Picture 1920(H) x 1080(V) @ 30fps Elements Lens Furnished Board Lens 3.6mm/F1.2 Minimum 0.01 lux @ F1.2 (AGC ON), 0 lux Illumination with built-in IR LED 36 units of... - Page 7 Noise Reduction 2D/3D Synchronous Internal System Transmission Coaxial transmission common 75-3 Distance cable up to 300-500 meters Environment Operating -20 to 50 degrees C Temperature Video Output 1 Vp-p Composite Video/75 ohms Power Supply 12V DC, 1A Water Resistance IP66 IP65 Dimensions 83 x 192 x 77...
