Summary of Contents for Inkel IPA-60
-
Page 2: Table Of Contents
MIXING AMPLIFIER Contents Welcome Unpacking Before Use Safety Instruction Operation Features Front Panel Rear Panel Connectiong Speaker Setting IPA-CDR(CD&MP3, TUNER MODULE) Connection Block Diagram Specification Service and Warranty IPA-60/120/240/360... -
Page 3: Welcome
Welcome Welcome you from management and staffs of INKEL PA. All of the staffs here at INKEL PA have dedicated to provide excellent products of value, and we are glad that you have purchased one of our products. We sincerely trust that this product will provide satisfactory service, but if anything goes up you do not satisfy completely, we will endeavor to make things right. -
Page 4: Safety Instruction
These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of diposal. Note for the battery symbol (bottom two symbol examples): The sign Pb below the symbol for batteries indicates that this batteries contains lead. IPA-60/120/240/360... -
Page 5: Operation
Check the connection of SET when protect circuits are in operation. Features A PUBLIC ADDRESS AMPLIFIER WITH RATED OUTPUT OF 60W(IPA-60), 120W(IPA-120W), 240W(IPA-240), 360W(IPA-360) 4 MICROPHONE INPUT & 3AUX INPUT WITH LEVEL CONTROL. -

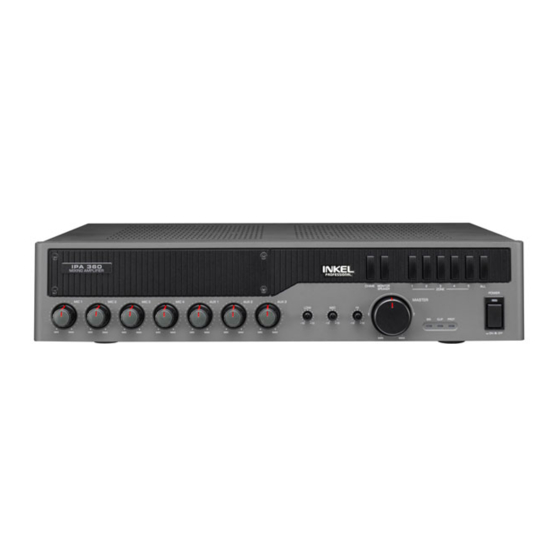

Page 6: Front Panel
USB) MODULE, change this blank panel to IPA- out from speaker. CDR/U. Adjust in/output level so that the clip LED is not illuminated during operation. 7. PROTECTION CIRCUIT INDICATOR This LED indicates the operation statue of protection circuit. When it is illuminated, output is blocked. IPA-60/120/240/360... -
Page 7: Rear Panel
SP 1~5 terminals are controlled by speaker jack, it can be used to expand amplifiers. Also, it can be used as patch by connecting effectors between pre- select-switch on the front panel. IPA-60 4Ω/15.5V 8Ω/17.8V 166Ω/100V amplifier output and amplifier input of this device. -
Page 8: Connectiong Speaker
2. Put the CD module connector 1. Assemble the CD module 3. Close the tope cover IPA-CDR/U 2. Assemble the antenna jack 4. Fix a form to do not touch antenna wire with heat sink by using tie band IPA-60/120/240/360... -
Page 9: Connection
MIXING AMPLIFIER Connection IPA-60/120/240/360... -
Page 10: Block Diagram
MIXING AMPLIFIER Block Diagram IPA-60/120/240/360... -
Page 11: Specification
MIXING AMPLIFIER Specifications ■ ■ ELECTRICAL Rated Output IPA-60/120/240 at T.H.D 1% IPA-60:60W, IPA-120:120W, IPA-240:240W IPA-360 at T.H.D 3% 360W Input Sensitivity/Impedance -60dB/600Ω, Bal -3/-10/-20dB/10KΩ, Unbal AMP IN 0dB/47KΩ, Unbal Frequency Response (+1/-3dB) 120Hz ~ 10KHz 100Hz ~ 12KHz AMP IN 80Hz ~ 15KHz T.H.D (at 1KHz, 1/2 Power) -
Page 12: Service And Warranty
SERVICE AND REPAIR For replacement parts, service and repairs please contact the INKEL PA distributor in your country. INKEL PA does not release service manuals to consumers, and advice users to not attempt any self repairs, as doing so voids all warranties. - Page 13 MIXING AMPLIFIER MEMO IPA-60/120/240/360...
- Page 14 MIXING AMPLIFIER MEMO IPA-60/120/240/360...
- Page 15 MIXING AMPLIFIER MEMO IPA-60/120/240/360...
