TRENDnet TC-P08C6AS Quick Installation Manual

Quick Installation Guide

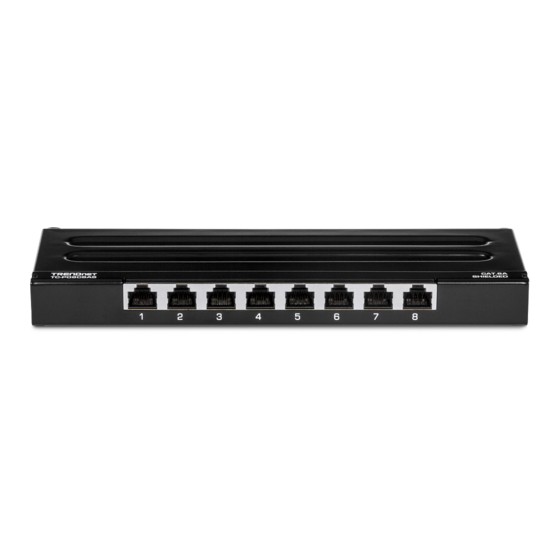

8-Port Cat6A Shielded Wall Mount Patch Panel
TC-P08C6AS
12-Port Cat6A Shielded Wall Mount Patch Panel
TC-P12C6AS

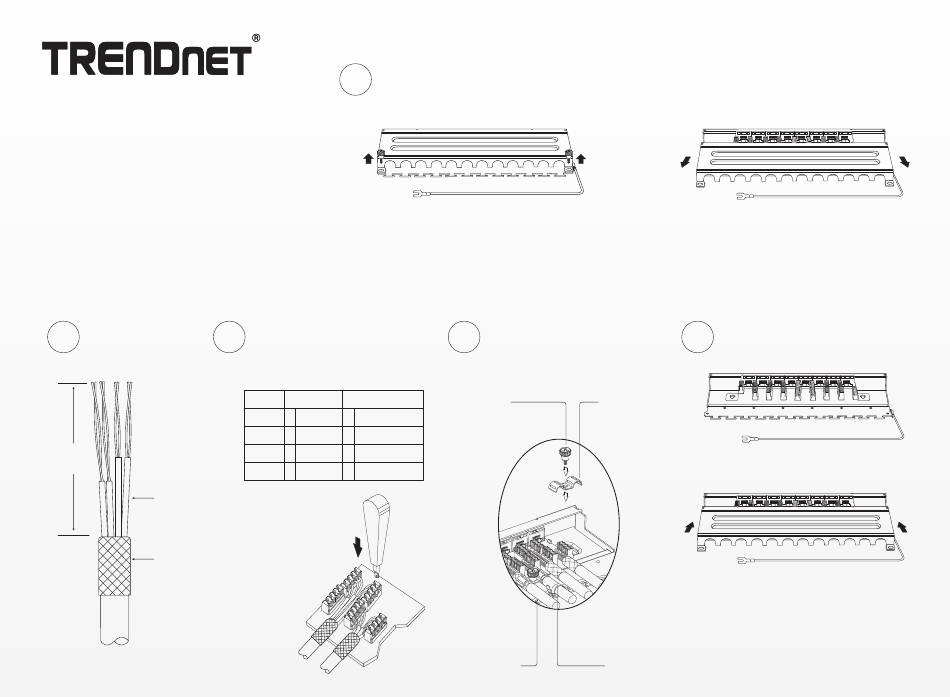

Strip and remove 80mm of
2
the Ethernet cable jacket. Fold
Shielding back over jacket.
80mm
Foil
Braid Shield
Remove the cover screws.
1
Layout the wires onto the patch panel based on the
3
IDC color code. The IDC color codes can be found
on the table below. (Reference the color codes
labeled A for T568A. Reference the color codes
labeled B for T568B)
IDC T568A T568B
Terminals Pair/Wire Color Pair/Wire Color
Pin 5 White/Blue White/Blue
1 1
Pin 4 Blue Blue
Pin 1 White/Green White/Orange
2 2
Pin 2 Green Orange
Pin 3 White/Orange White/Green
3 3
Pin 6 Orange Green
Pin 7 White/Brown White/Brown
4 4
Pin 8 Brown Brown
*Use punch down tool to
press each wire and
trim excess length until
all pairs are terminated.
Place Grounding clip on the cables, screw on the
4
bolt until the cables are fastened to secure
grounding between cable and panel. Use supplied
cable ties to tighten the cables. When finished
replace the metal cover and finish the installation.
Screw (Bolt) Grounding Clip
Cable Fixture Hole Cable Tie
Lift the left and right sides of the metal cover and slide the
metal cover backwards as shown below.
Connect ground wire to your grounding point and
5
reattach the metal cover to complete the installation.
Grounding Wire
Grounding Wire
