Basalte ASANO A4 Installation Manual

ASANO A4
Installation Manual
Description

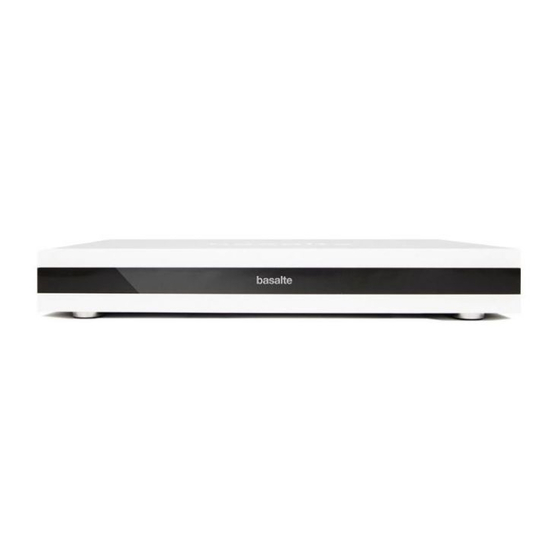

Asano A4 is a networked 4-zone stereo output module that allows connecting up to 4 zones of third party amplifiers
or active speakers with the Asano system. Every zone has a separate trigger output to switch on and off the external
amplifier or active speaker. Asano A4 is able to connect three analogue input sources.
A4 can only be used in combination with S4 and is fully controlled over the audio network. The S4's integrated KNX
control allows you to integrate the Asano A4 in a KNX system.

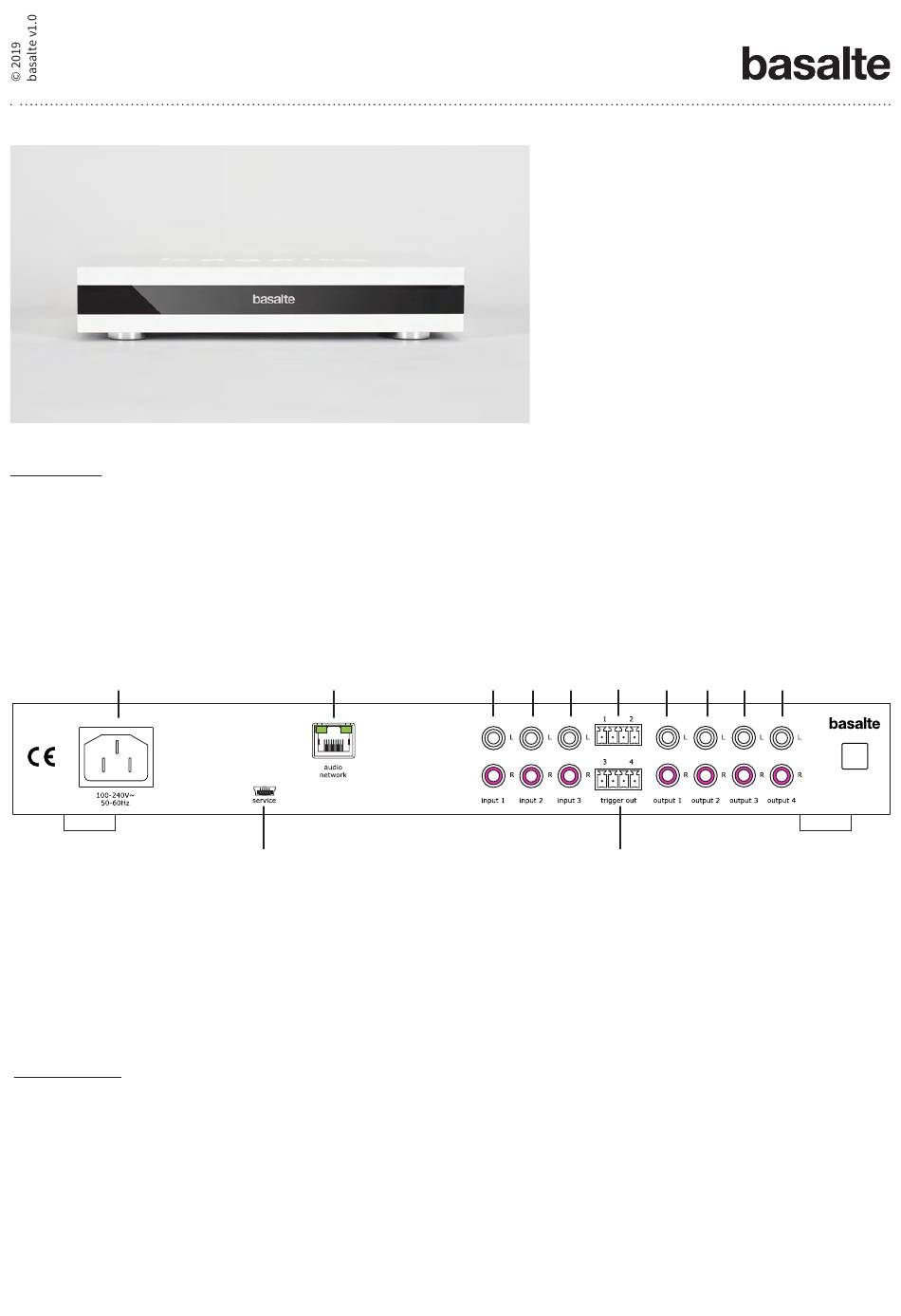

1
1 Power supply
2 USB - only for service
3 Audio network
LED feedback
The Asano A4 front panel has a feedback LED which indicates following statuses:
• Blue: standby mode
• White: at least one output zone amplifier is active
• Following status indicates a possible device failure:
- Red flashing
- Purple flashing
- Cyan flashing
3
2
4 Analogue input
a Source 1
b Source 2
c Source 3
Before operating the unit, please read this
manual thoroughly and retain it for future
reference.
Model No. 0702-04
Caution: any changes or modifications not
expressly approved in this manual could void
your authority to operate this equipment.
4a 4b 4c 5a
+ - + -
+ - + -
5b
5 Trigger output
a Zone 1 - 2
b Zone 3 - 4
6a 6b 6c 6d
6 Analogue output
a Source 1
b Source 2
c Source 3
d Source 4
