Preface
Thank you for purchasing OPS-25 portable speaker cabinet. Please read the user manual carefully before operation and
keep it for reference in future. If you have any question or suggestion, please contact our local dealer.
Features
• Tailored for outdoor performance, personal performance, small party, program rehearsal
• Two 6.5 inch high performance cone speaker cabinets, high output volume, powerful full range stereo
• One XLR mic input and one guitar input connector for convenient singer performance
• Independent EQ and reverb and delay adjusting function to suit for microphone or instrument in different applications
• Trapezoidal enclosure design and socket for stage reinforcement or stand mounting
• Compact and portable design and solid structure and bag supplied for convenient outdoor application
• Built-in 5.0 bluetooth module, reliable transmission, HiFi sound, freely wireless music playing
• Use iPhone/iPad for recording or live broadcast via cell phone connector
• Built-in 2500mAh Li-ion battery, low power consumption, more than 6h operation
Product content
OPS-25 speaker cabinet .................................................................................................1pc
Wired microphone...........................................................................................................1pc
Microphone cable............................................................................................................1pc
Power adapter.................................................................................................................1pc
Bag....................................................................................................................................1pc
User manual ....................................................................................................................1pc
Specification
Speaker cabinet specification：
Speaker： 6.5 inch *2（woofer），1 inch*1（tweeter）
Frequency response：100Hz-15kHz
Rated Power：24W
Peak Power：40W
Distortion：＜1%
AUX Input Sensitivity：0.775V，frequency range：20Hz-15kHz
MIC Input Sensitivity：45mV，frequency range：200Hz-15kHz
GUITAR Input Sensitivity：100mV，frequency range：200Hz-15kHz
Operation Temperature：-10℃～45℃
Dimension：420X215X280mm（D * W * H）
Weight：approximate 6kg
Battery specification：
Type：Li-ion battery
Specification：11.1V 2500mAh
Charging： DC 12V 2A
Operation Time: approximate 6h
Charging Time：approximate 2.5h
Note: the above data are obtained from the test of Takstar laboratory and Takstar has the final interpretation right.

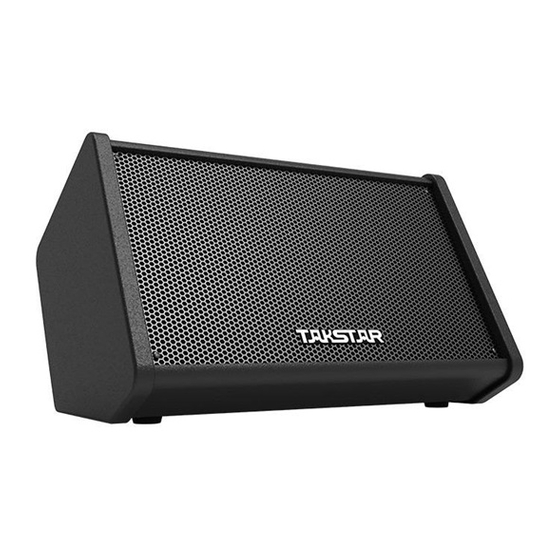

OPS-25 Portable Speaker Cabinet
Advertisement
Table of Contents
Related Manuals for Takstar OPS-25
Summary of Contents for Takstar OPS-25
- Page 1 Dimension：420X215X280mm（D * W * H） Weight：approximate 6kg Battery specification： Type：Li-ion battery Specification：11.1V 2500mAh Charging： DC 12V 2A Operation Time: approximate 6h Charging Time：approximate 2.5h Note: the above data are obtained from the test of Takstar laboratory and Takstar has the final interpretation right.
- Page 2 OPS-25 Portable Speaker Cabinet Function instruction Do not disassemble the speaker cabinet by yourself. There is no part inside for you to repair. 1. Microphone connector（MIC/LINE）：Φ6.35mm microphone connector to link with wired microphone or wireless receiver. 2. Mic reverb（REVERB）：turn it clockwise to increase mic reverb effect, and vice versa.
- Page 3 1.Turn on the speaker cabinet power switch. When the sound prompt “Bluetooth is ready”, this means the Bluetooth matching status. 2.Find Bluetooth item in “setting” menu of the cell phone. Turn on the Bluetooth function. When it searches “TAKSTAR OPS-25”, click “TAKSTAR OPS-25” for connection. When the speaker cabinet has the sound prompt “Bluetooth connected”, this means the Bluetooth is connected successfully.
