M-PCON-20A/M-PCON-30HWA
THANK YOU
Thank you for purchasing the MPR-A PCON Module. Please read these instructions thoroughly
before installing/assembling this product.
Instruction Sheet
MPR-A SERIES

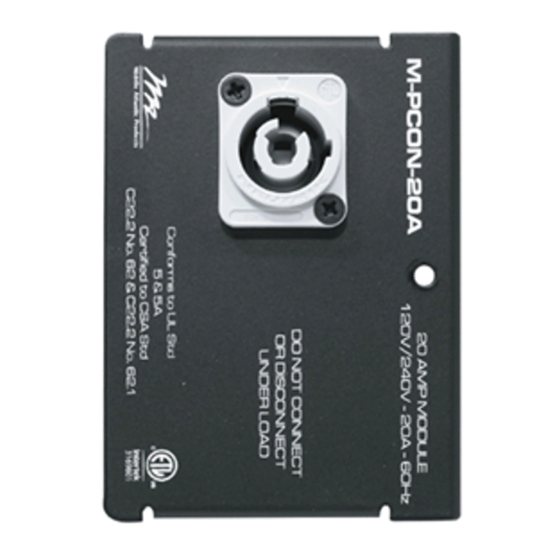

M-PCON-20A
Conforms to UL Std
Certified to CSA Std
C22.2 No. 62 & C22.2 No. 62. 1
M-PCON-30HWA
Conforms to UL Std
Certified to CSA Std
C22.2 No. 62 & C22.2 No. 62. 1
20 AMP MODULE
120V/240V - 20A - 60Hz
DO NOT CONNECT
OR DISCONNECT
UNDER LOAD
5 & 5A
30 AMP MODULE
120V/240V - 30A - 60Hz
DO NOT CONNECT
OR DISCONNECT
UNDER LOAD
5 & 5A
I-00593
Rev -
Advertisement
Related Manuals for Middle Atlantic MPR-A Series
Summary of Contents for Middle Atlantic MPR-A Series
- Page 1 Instruction Sheet MPR-A SERIES M-PCON-20A/M-PCON-30HWA 20 AMP MODULE M-PCON-20A 120V/240V - 20A - 60Hz DO NOT CONNECT OR DISCONNECT UNDER LOAD Conforms to UL Std 5 & 5A Certified to CSA Std C22.2 No. 62 & C22.2 No. 62. 1...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS DANGER HAZARDOUS VOLTAGE/DANGER HAUTE READ AND SAVE THESE INSTRUCTIONS! TENSION CONSERVER CES INSTRUCTIONS! The lightning flash with the arrowhead symbol, within an equilateral triangle is intended to alert the user to the • To reduce risk of shock , disconnect the device from the power source before presence of uninsulated dangerous voltage within the servicing any connected equipment product’s enclosure that may be of sufficient magnitude to...
- Page 3 DO NOT CONNECT OR DISCONNECT PCON UNDER LOAD M-PCON-20A INSTALLATION 1) Interconnect M-PCON-20A module with our genderless J or T series connector, part numbers J-xX6/T-xX6 2) Jumpers can be attached to either common connector (FIGURE A). For ease of cable management connect cabling as shown.
- Page 4 (FIGURE F) WARRANTY Middle Atlantic Products, Inc. (the "Company") warrants the MPR-A Modules to be free from defects in material or workmanship under normal use and conditions for a period of (3) years from the date of shipment by the company.
