Summary of Contents for Middle Atlantic MPR-A Series
Page 1

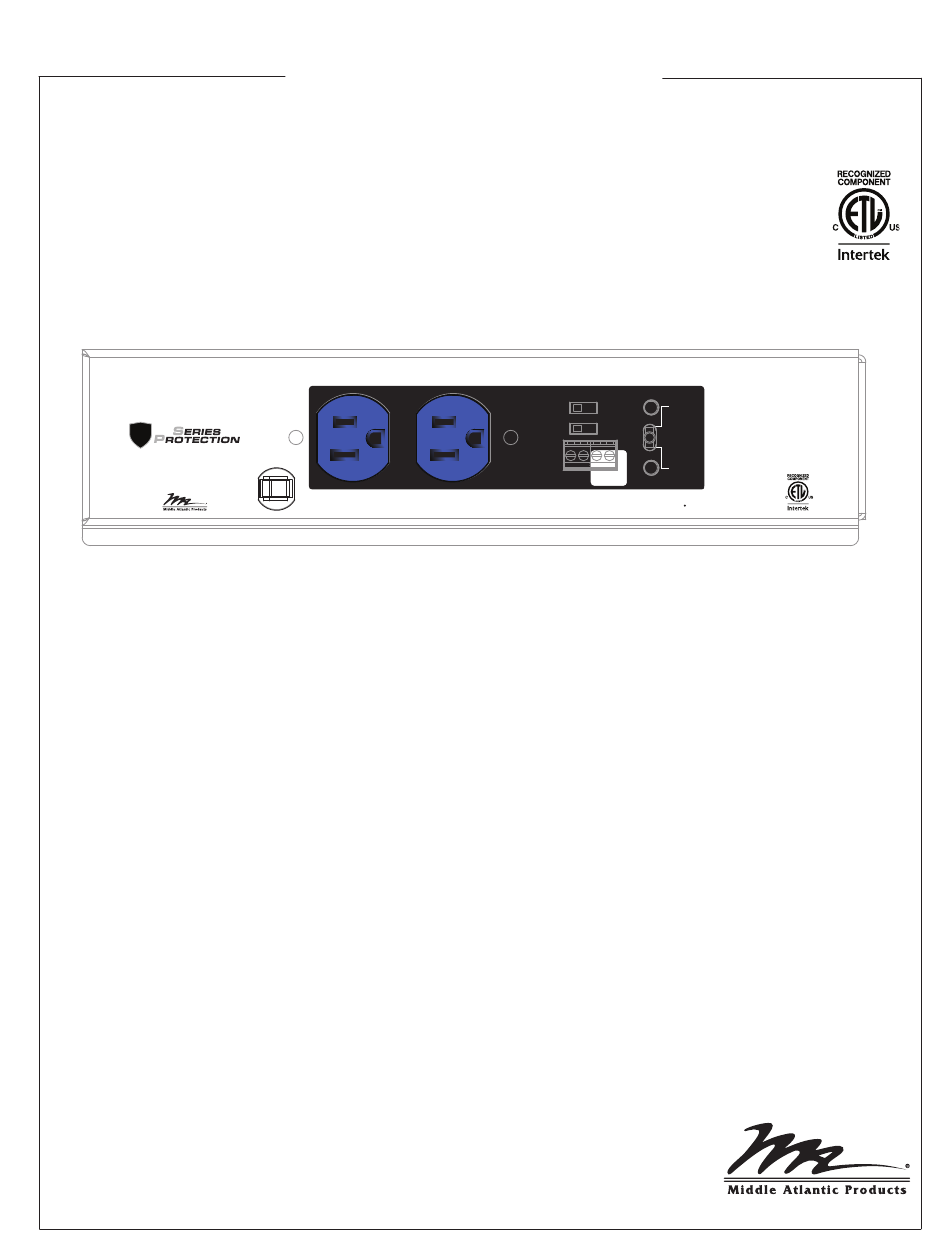

1449 C22.2 No. 8 RLM-15A-SP SHOWN Thank you for purchasing the MPR-A Series Protection Module. Please read these instructions thoroughly before installing this product. - Non-sacrificial surge technology protects equipment without compromising system ground - No MOVs or other degrading parts...
IMPORTANT SAFETY INSTRUCTIONS DANGER HAZARDOUS VOLTAGE/DANGER HAUTE READ AND SAVE THESE INSTRUCTIONS! TENSION CONSERVER CES INSTRUCTIONS! The lightning flash with the arrowhead symbol, within an equilateral triangle is intended to alert the user to the • To reduce risk of shock , disconnect the device from the power source before presence of uninsulated dangerous voltage within the servicing any connected equipment product’s enclosure that may be of sufficient magnitude to...
Page 3
FUNCTIONALITY THE RECEPTACLES RECEIVE POWER VIA THE CONTROL CIRCUITS UNDER THE FOLLOWING CONDITIONS: A) The AUTO-OFF-ON switch is in the ON position. B) The AUTO-OFF-ON switch is in the AUTO position with the NORMALLY OPEN/CLOSED control selector switch in the NORMALLY OPEN position and there is a contact closure on the remote control terminal block.
Page 4
CONNECTIONS, CONTROLS AND INDICATORS (RLM SERIES) SERIES PROTECTED AND CONTROLLED RLM-15A-SP 15 AMP MODULE 120V - 12A - 60Hz Activation Momentary Maintained Normally Closed Normally Open RESET AUTO Control Status OUTPUT Conforms to UL Standard Certified to CSA Standard 1449 C22.2 No.
Page 5
CONNECTIONS, CONTROLS AND INDICATORS (M SERIES) SERIES PROTECTED M-15A-SP 15 AMP MODULE 120V - 12A - 60Hz RESET Conforms to UL Standard Certified to CSA Standard 1449 C22.2 No. 8 M-15A-SP SHOWN DUPLEX RECEPTACLE: All Modules contain one duplex receptacle. 15A Models - (NEMA 5-15R) 20A Models - (NEMA 5-20R) CIRCUIT BREAKER: Press to reset if the circuit breaker trips.
Page 6
INSTALLATION OF MODULE TO RACEWAY 1) Insert the flange on the module into the raceway. (FIGURE A) 2) Place the module into raceway. (FIGURE B) FIGURE A FIGURE B 3) Screw the module to the raceway (FIGURE C). USE A HAND-HELD SCREWDRIVER AND DO NOT OVERTIGHTEN FIGURE C Page 6...
Page 7
INSTALLATION OF MODULE TO RACEWAY Please note that there is a separate input and output for this module. The bottom of the circuit board is shown below denotes the input/output. Page 7...
WARRANTY Middle Atlantic Products (the "Company") warrants the Series Protection Module to be free from defects in material or workmanship under normal use and conditions for a period of three (3) years from the date of shipment by the company.
