MAKS KEYPAD MINI Quick Start Manual

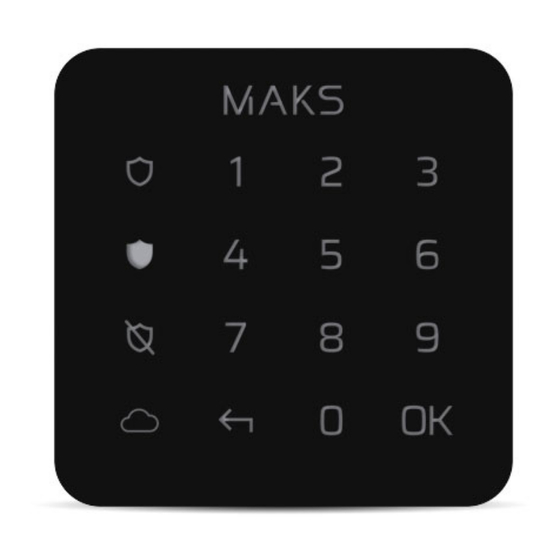

WIRELESS MINI KEYPAD
• ergonomic miniature keypad
• elegant design, slim profile
• available in two colors
• security modes management
• hands-free identification
• numeric keys
• 868,0 ... 868.6MHz, several channels for redundancy,
range up to 2000 m
• two AAA batteries (LR03)
• up to two years' service life
• easy and fast installation
The wireless keypad is designed for arming and disarming, displaying
alarms and device status, as well as interaction with the user of the alarm
system.
The keypad has the reader of contactless active identifiers MAKS TAG
which allows authorization in the hands-free mode near the keypad.
Radio communication
Keypad transceiver operates in several channels of 868.0 ... 868.6 MHz
band for redundancy.
Secure two-way radio communication.
Distance - up to 2000 m in the open space.
Three grades of power, maximum - up to 20 mW.
Keypad usage
Enter the user code and select an action by clicking the appropriate
button: (Arming), (Disarming) or
After the first digit of the code is pressed, LED indicators will be activated.
Erroneous digits can be reset with the
To change your code, press and hold the OK button it until beep.
Press key 4 and enter your current code and then enter the new code twice.
To view the indication press OK key to activate the keypad.
Setting
The keypad operates only with the MAKS PRO wireless
security center, connection to other systems is not provided.
The keypad connects to the security center and
is configured using the MAKS SETUP mobile application.
Batteries
The device uses AAA batteries
Lithium batteries (FR03)
Alkaline batteries (LR03, alkaline)
Salt batteries (R03)
(Partially arming).
("Cancel") button.
Usage allowed
Included
Do not use!
Characteristics
ISM wireless interface, up to 2000 m
secure two-way communication
Power
(alkaline batteries included)
consumption in standby mode
consumption in active mode
service life of battery
Operating temperature range
Case color
Dimensions
Weight
Using MAKS TAG
To arm: go to the keypad with the MAKS TAG. Activate the keypad
by pressing the "OK" button, the user will be authorized.
Then select an action by pressing the corresponding button:
or (Partial arming).
To disarm: after entering the door equipped with MAKS WDC, the keypad
will be activated automatically, otherwise activate the keypad by pressing
the "OK" button.
The user who approaches the keypad with the MAKS TAG will be
authorized.
Just press the "Disarm" button
For more information on setting up and operating the
device, please visit www.maks.systems
868.0... 868.6 MHz
key - 256 bits
two AAA batteries
(LR03) 1.5V
not more than 30 µA
not more than 35 µA
up to 2 years
from -10°C to +55°C
white, black
84.5 x 84.5 x 14.6 mm
75 grams
(Arming)
to disarm the device.
