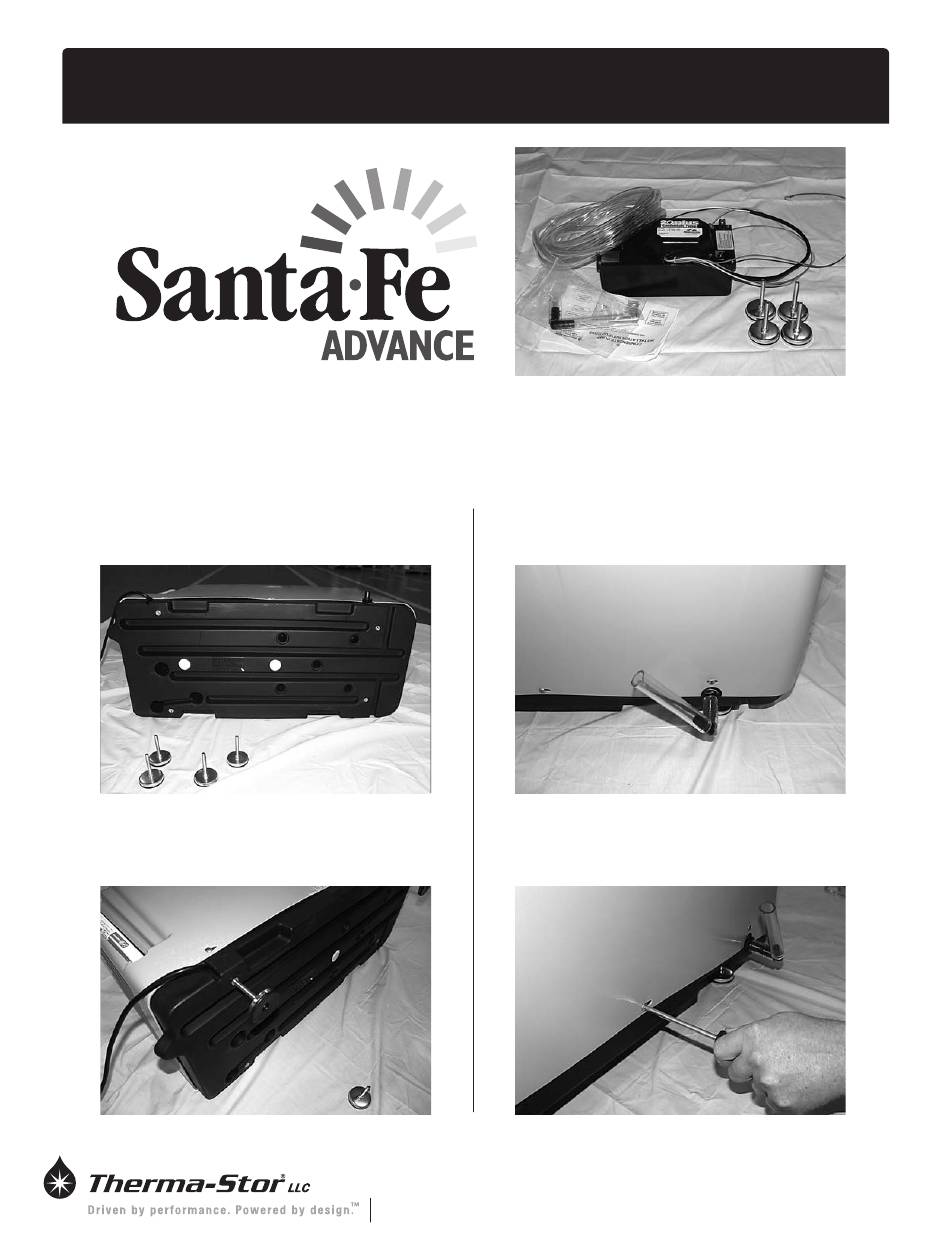

Condensate Pump Installation

Note: Before attaching pump assembly, ensure that the dehumidifier has either the
casters or leveling legs installed in it. These will be needed for additional height. The
mounting bracket is not to be used as a support bracket for the dehumidifier.
Step 1. Lay the unit on it's side. Make sure the filter door
is facing upward. Note the locations of the four leveling feet
and the hose adaptor.

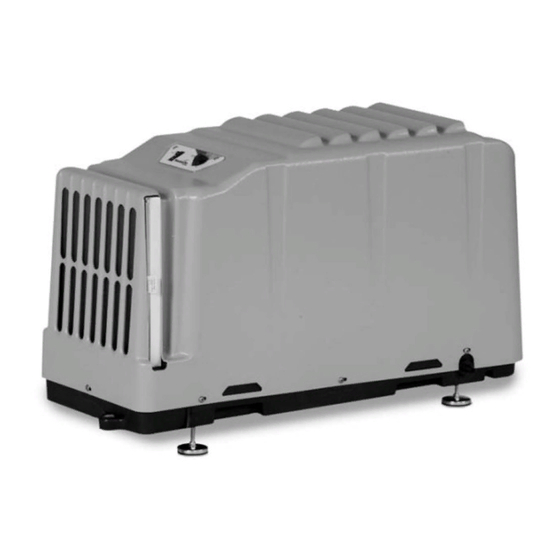

Step 2. Partially screw in the leveling feet at the four locations.
Step 3. Turn unit upright and install short end of
hose connector on drain port.
Step 4. Remove middle top cover screw located on the drain
port side. Do not discard this screw. It will be used to attach the
mounting bracket.
