- Page 1 HOME AUTOMATION, INC. Model 10A11-1 Two-Way Audio / Voice Alarm Module Installation Manual Document Number 10I11-1 March, 2001...

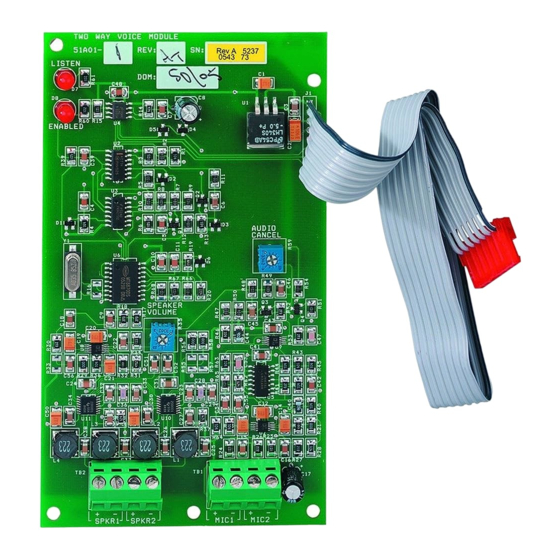

- Page 2 DESCRIPTION The Model 10A11 Two-Way Audio/Voice Alarm Module allows two-way communication with a central station after an alarm, paging and listening from an on-premises or remote phone, annunciation of alarm and zone by voice, and voice messaging*. The Model 10A11 can be used with OmniLT, Omni, and OmniPro automation controllers.
- Page 3 Figure 1 - Speaker/Microphone Connections MOUNTING When mounting and connecting the Model 10A11, power down the controller (AC and battery). Mount the Model 10A11 to the upper right side of the enclosure using the supplied double-sided tape. When connecting to an Omni or OmniPro, route the cable along the top of the enclosure to the connector on the left side marked "J2".
- Page 4 Figure 3 - OmniLT Installation CONTROLLER SETUP When using a Model 10A11 for two-way communication with a central station, the Two-Way Voice option must be enabled. From the Installer Setup menu, select the 3 (DCM) key. Press the down arrow ( ) key to until you reach the Two- Ø...
- Page 5 1. Listen mode is used to listen to the premises from an inside, remote, or central station telephone. You cannot talk to anyone on premises in listen mode. Whenever the module is switched on, it is set to the listen mode. 2.
- Page 6 PAGING AND LISTENING By accessing the telephone menu, you can use an inside or remote phone to talk (page) and listen to someone on the premises. From the main telephone menu choose the 8 (PHONE). To talk or listen to the premises, press the 3 (INTERIOR). If no key is pressed, the system will automatically switch to listen mode.
