V-TAC VT-8023 Installation Instruction

Microwave sensor

WEEE Number: 80133970

INSTALLATION INSTRUCTION

Model: VT-8023

Microwave Sensor

INTRODUCTION

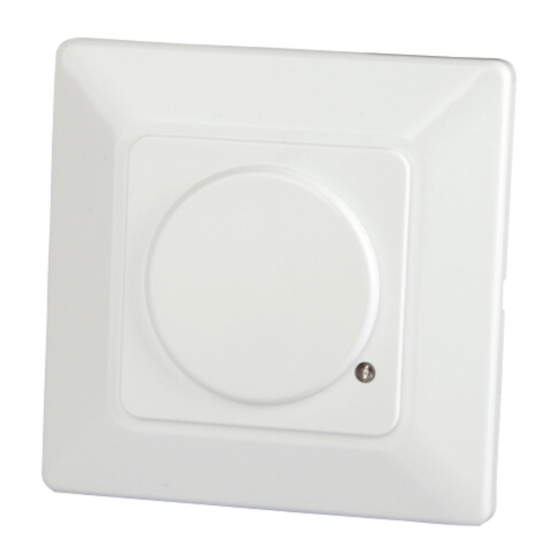

The product is a new saving-energy switch; it adopts microwave sensor mould with high-

frequency electro-magne�c wave (5.8GHz), integrated circuit. It gathers automa�sm,

convenience, safety, saving-energy and prac�cality func�ons. The wide detec�on ﬁeld is

consis�ng of detectors. It works by receiving human mo�on. When one enters the detec�on

ﬁeld, it can start the load at once and iden�fy automa�cally day and night. Its installa�on is

very convenient and its using is very wide. Detec�on is possible through doors, panes of glass

or thin walls.

Table of Contents

Do you have a question about the VT-8023 and is the answer not in the manual?

Page 1 WEEE Number: 80133970 INSTALLATION INSTRUCTION Model: VT-8023 Microwave Sensor INTRODUCTION The product is a new saving-energy switch; it adopts microwave sensor mould with high- frequency electro-magne�c wave (5.8GHz), integrated circuit. It gathers automa�sm, convenience, safety, saving-energy and prac�cality func�ons. The wide detec�on ﬁeld is consis�ng of detectors.
Page 2 FUNCTION • Can iden�fy day and night: It can work in the day�me and at night when it is adjusted to the “sun” posi�on (max). It can work in the ambient light less than 3LUX when it is adjusted to the “3” posi�on (min). As for the adjustment pa�ern, please refer to the tes�ng pa�ern.
Page 3 INSTALLATION INSTRUCTIONS (See the Diagram) • Unload the faceplate of sensor and adjust the �me and LUX knob.(refer to ﬁgure 1) • Loose the screws in the connec�on terminal, and then connect the power to connec�on terminal of sensor according to connec�on-wire diagram. •...
Page 4 If there are con�nual signals in the detec�on ﬁelds. b. If the �me delay is set to the longest. c. If the power corresponds to the instruc�on. In case of any query /issue with the product please reach out to us at support@v-tac.eu...
