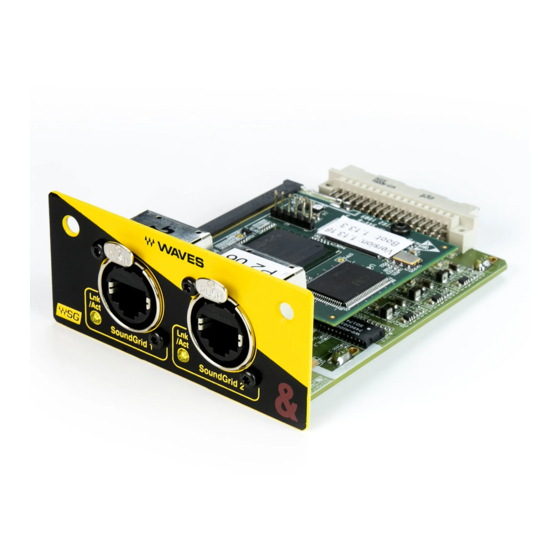

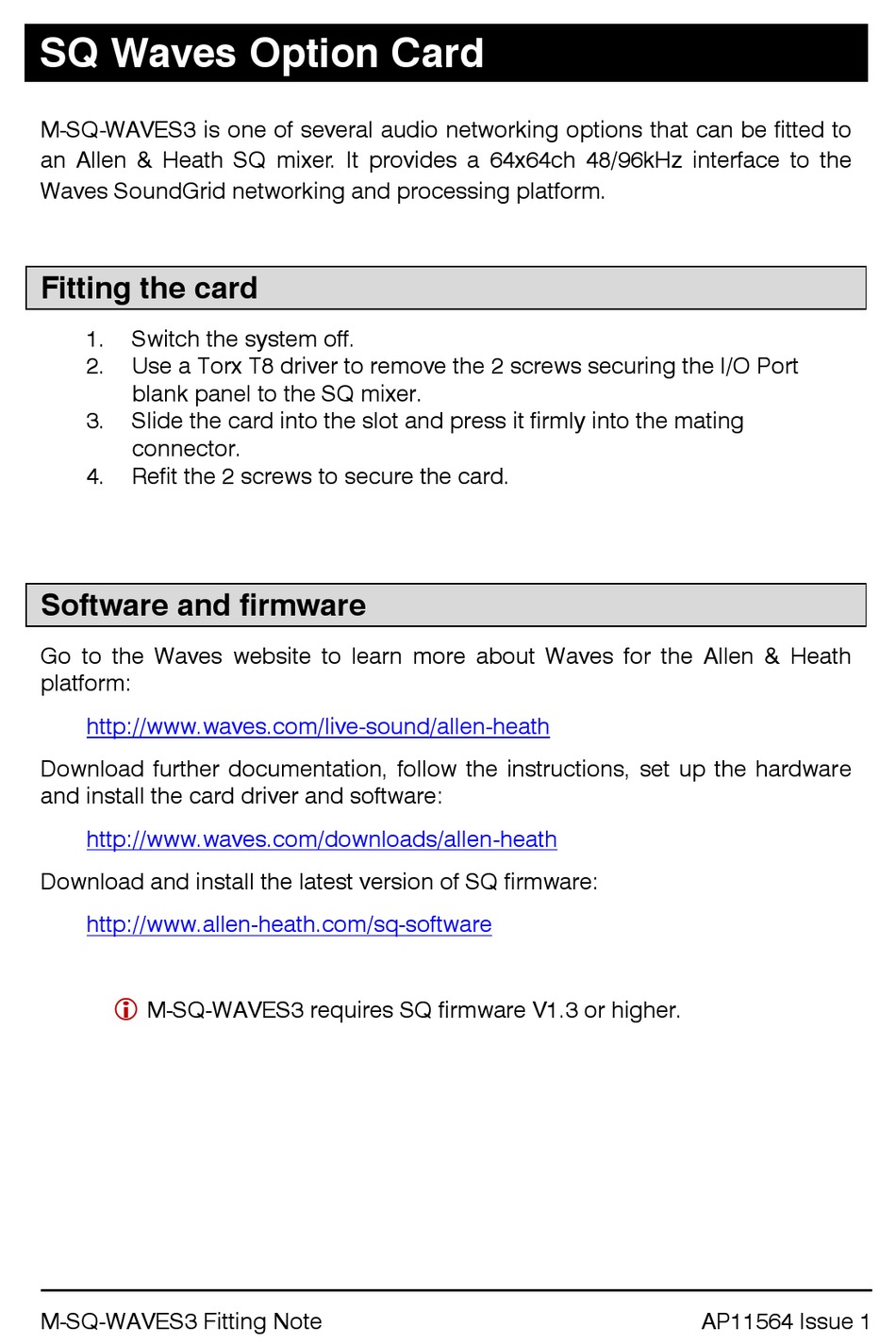

SQ Waves Option Card
M-SQ-WAVES3 is one of several audio networking options that can be fitted to
an Allen & Heath SQ mixer. It provides a 64x64ch 48/96kHz interface to the
Waves SoundGrid networking and processing platform.
Fitting the card
1.
Switch the system off.
2.
Use a Torx T8 driver to remove the 2 screws securing the I/O Port
blank panel to the SQ mixer.
3.
Slide the card into the slot and press it firmly into the mating
connector.
4.
Refit the 2 screws to secure the card.
Software and firmware
Go to the Waves website to learn more about Waves for the Allen & Heath
platform:
http://www.waves.com/live-sound/allen-heath
Download further documentation, follow the instructions, set up the hardware
and install the card driver and software:
http://www.waves.com/downloads/allen-heath
Download and install the latest version of SQ firmware:
http://www.allen-heath.com/sq-software
M-SQ-WAVES3 requires SQ firmware V1.3 or higher.
M-SQ-WAVES3 Fitting Note
AP11564 Issue 1
Advertisement
Table of Contents
Related Manuals for ALLEN & HEATH M-SQ-WAVES3
Summary of Contents for ALLEN & HEATH M-SQ-WAVES3
- Page 1 SQ Waves Option Card M-SQ-WAVES3 is one of several audio networking options that can be fitted to an Allen & Heath SQ mixer. It provides a 64x64ch 48/96kHz interface to the Waves SoundGrid networking and processing platform. Fitting the card Switch the system off.
- Page 2 Front panel SoundGrid ports A built-in Gigabit switch with 2 locking EtherCon ports for Link Status connecting up to two Flashes to indicate devices directly network activity Setting clock and patching signals Use the SQ screen to patch signals to or from the I/O Port. Use the Setup / Audio / Audio Sync screen to select the clock source for the...
