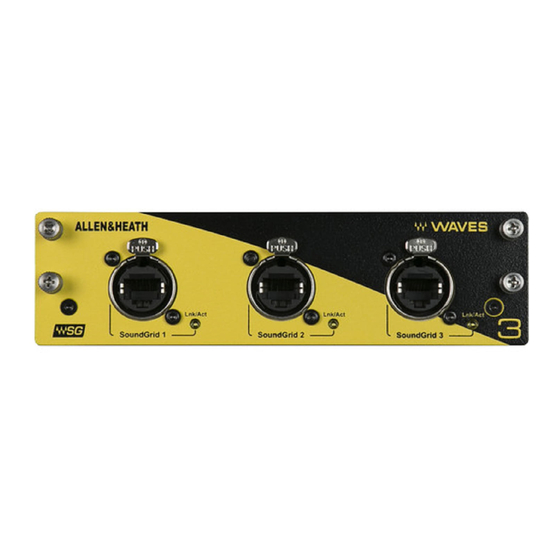

M-DL-WAVES3 is one of several audio networking options that can be fitted to an
Allen & Heath dLive I/O Port. It provides a 128x128ch 48/96kHz interface to the
Waves SoundGrid networking and processing platform.
Fitting the card
1.
Switch the system off.
2.
Remove the 4 screws securing the I/O Port blank panel on the dLive
MixRack or Surface.
3.
Slide the card into the slot and press it firmly into the mating
connector.
4.
Secure the card by tightening the 4 captivated thumb screws.
2
Software and firmware
Go to the Waves website to learn more about Waves for the Allen & Heath
platform:
http://www.waves.com/live-sound/allen-heath
Download further documentation, follow the instructions, set up the
hardware and install the card driver and software:
http://www.waves.com/downloads/allen-heath
Download and install the latest version of dLive firmware:
http://www.allen-heath.com
M-DL-WAVES3 requires dLive firmware V1.3 or higher.
M-DL-WAVES3 fitting note
M-DL-WAVES3 fitting note
3
1
AP10844 Issue 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ALLEN & HEATH M-DL-WAVES3
Summary of Contents for ALLEN & HEATH M-DL-WAVES3

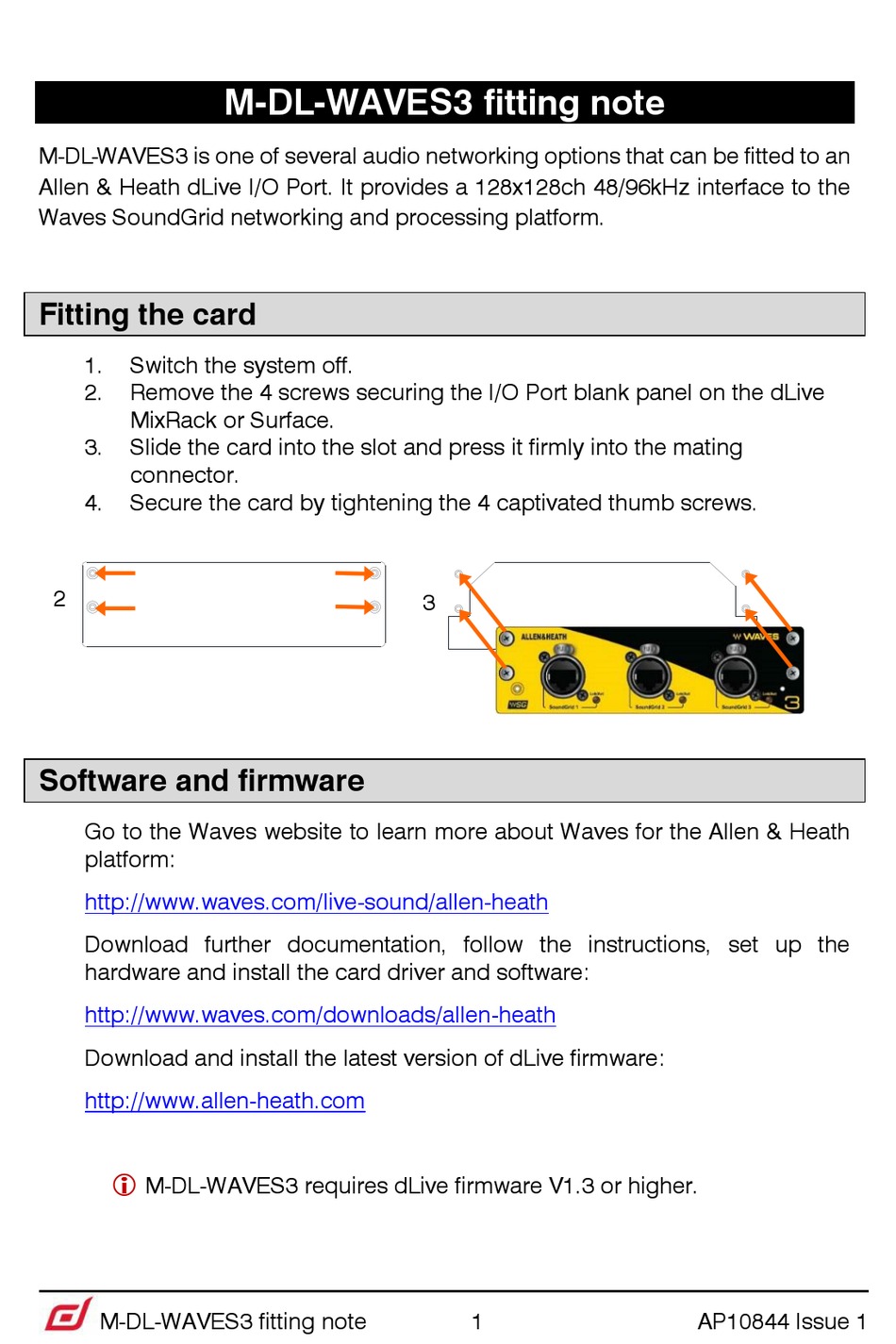

- Page 1 M-DL-WAVES3 fitting note M-DL-WAVES3 is one of several audio networking options that can be fitted to an Allen & Heath dLive I/O Port. It provides a 128x128ch 48/96kHz interface to the Waves SoundGrid networking and processing platform. Fitting the card Switch the system off.
