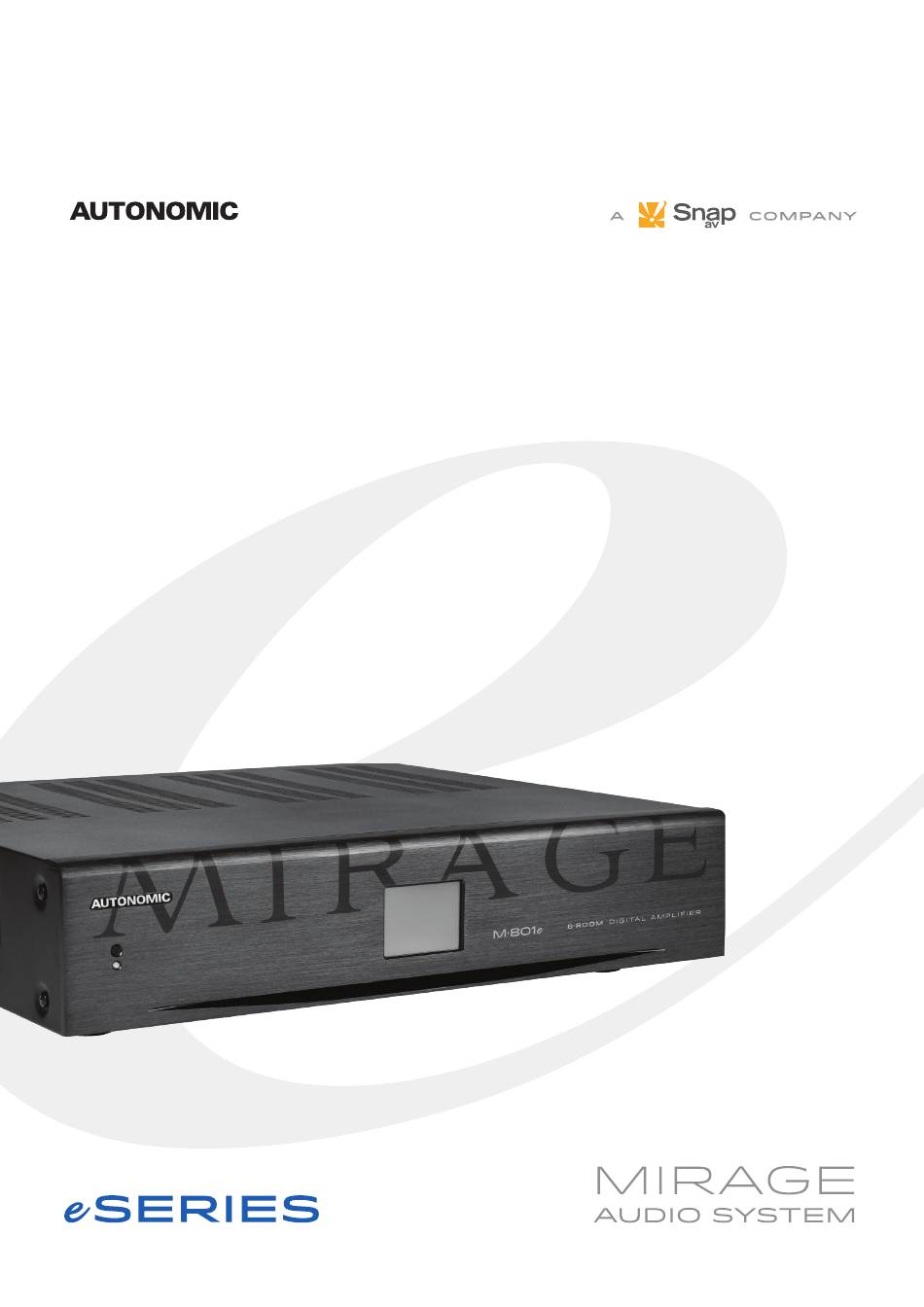

- Page 1 MAS m∙801e 4-room Digital Amplifier with eAudioCast™...
-
Page 3: Table Of Contents
Table of Contents Important Safety Instructions Precautions Declaration of Conformity Features Front Panel Guide Rear Panel Guide Typical System Configuration Multiple Amplifier Stacks Controller Wiring Menu Navigation Ethernet Protocol Specifications... -
Page 4: Important Safety Instructions
Important Safety Instructions Precautions AC Fuse Read these instructions. a flue like gap for warm air to escape. The AC fuse inside the unit is not us- Keep these instructions. Good airflow is necessary to help ensure er-serviceable. If you cannot turn on the proper operation. -
Page 5: Declaration Of Conformity
For North American Models For Canadian Models FCC interference statement NOTE: THIS CLASS B DIGITAL APPARATUS Speaker Shorts This device complies with Part 15 of the COMPLIES WITH CANADIAN ICES-003. Under no circumstances should the FCC Rules. Operation is subject to the speaker output terminals of the unit be For models having a power cord short circuited, grounded or connected... -
Page 6: Features
Features Thank you for purchasing an M-801e MAS Multi-Zone Amplifier. Please read this manual thoroughly before making connections and plugging in the device. Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your new Multi-Zone Amplifier. Please retain this manual for future reference. Amplifier Zone ON Status –... -
Page 7: Front Panel Guide
Front Panel Guide Front Panel Power Indicator Chassis Feet Solid Aluminium front Panel. The power indicator glows blue when- Set high enough to provide unrestricted ever AC power is applied. air-flow through the chassis for convec- Infra-Red Receiver tion cooling. Receiver for front panel IR control (Used 2.4"... -
Page 8: Rear Panel Guide
Rear Panel Guide AC Inlet Ethernet Port – MAIN IN 11. Optical Digital Inputs IEC socket. MAIN IN is 10/100 Base T primary Ethernet Optical (TOSLINK) digital inputs. port for connection to the Home network. Speaker Terminals 12. Controller Interface Plug in terminal clamp connectors Ethernet Port –... -
Page 9: Typical System Configuration
Typical System Configuration FIGURE 1 Zone 1 KP-6 Zone 2 Study KP-iOS Zone 3 Lounge Tablet To Ethernet Router Autonomic Media Server Satellite Receiver Tuner CD Player CD Player... - Page 10 Typical System Configuration (Continued) Fig. 1 depicts a typical configuration where Speakers the M-801e amplifier is providing audio Speakers in each zone are connected to the into six of the possible eight listening zones. amplifier by "Home Run" speaker cables. Only three of the zones are depicted.
-
Page 11: Multiple Amplifier Stacks
Multiple Amplifier Stacks FIGURE 2 Linking to the next M-401e or M-801e Multi-Zone Amplifier To Ethernet Router* Autonomic Media Server Satellite Receiver Tuner CD Player... -
Page 12: Controller Wiring
Multiple Amplifier (Continued) In large installations where multiple M-801e Fig 2. shows a stack of M-801e with Source amplifiers are required, Ethernet conveys connections to first amplifier where they are amplifier control, and link to other Media converted to Digital audio, buffered and sent sources if connected to the Home network to the next amplifier in the stack. -
Page 13: Menu Navigation
Menu Navigation Front Panel User Interface The M-801e amplifier has a 2.4" Touch Panel LCD color display which is used for control and accessing status of all amplifier functions. After 2 minutes of inactivity the LCD dims to 50% brightness. After a further 15 minutes it dims OFF. - Page 14 Menu Navigation (Continued) MAX VOLUME BALANCE NAME: AQUARIUM ZONE NAME: AQUARIUM ZONE LINKING EDIT A B C D E F ZONE: 100 G H I J K L M N O P Q R S T U V W X Y Z Levels Setup Page Zones Setup Page Zone Name Page...
- Page 15 Menu Navigation (Continued) INTERNET TIME / TIME ZONE SOURCE SETTINGS GAIN (Analog Input) A B C D E F FRI 9:33:06 PM UTC - 4:00 (Daylight Savings Time) G H I J K L M N O P Q R S T U V W X Y Z GET TIME...
-
Page 16: Ethernet Protocol
Ethernet Protocol The Ethernet port provides data acquisition and control of the MASamplifiers by a home automation system, or PC Via TCP port 17037. Command Structure: <command> <zone> <data> <line feed> Please see online support documents under the amplifiers section. Command Command Description... - Page 17 Data Command Content Standby 00 – Standby OFF (01) 01 – Standby ON 04 – Toggle Mute 00 – Mute (02) 01 – Un-mute 02 – Toggle Mute Source Selection 00 – S5 04 – S8 (03) 01 – S6 05 –...
-
Page 18: Specifications
Notes Specifications • When a command is sent to an ampli- fier it will first be transmitted on the control bus and then returned to the PC Rated Output Power (FTC) 55W per channel / 8Ω loads (Home Automation System). If an error All Channels 75W per channel / 4Ω... - Page 19 ©2006–2019 Inc. Autonomic and TuneBridge are registered trademarks of Autonomic Controls, Inc. Autonomic Controls MirageAudioSystem.com/eSeries All other trademarks are property of their respective owners. 013119...
