5216 Portside Dr, Medina Oh 44256 USA • PH: 1 330.722.5033 • FAX: 1 330.722.5037
Read all instructions BEFORE assembly and USE of product.
THIS IS THE ASSEMBLY INSTRUCTIONS FOR CRIBS SOLD IN THE UNITED STATES
FOR CUSTOMER SERVICE CALL
1-877-716-2757
(outside of U.S. 330-722-5033). DO NOT CALL
RETAILER OR RESELLER FOR SERVICE
AS THEY ARE NOT AUTHORIZED TO
RESOLVE ANY SERVICE ISSUES.
FOR FEDERAL SAFETY STANDARD
COMPLIANCE CERTIFICATES, PLEASE VISIT
OUR WEBSITE AT
www.
childcraftbaby
ASSEMBLY ASSISTANCE
IMPORTANT: retain for future reference read
carefully.
Foundations
strives for the highest quality in our
®
products but occasionally a missing part or problem
can occur during assembly.
If any parts are missing or broken or you need
assistance with assembly, DO NOT return the
product to your dealer. Go to our website at
www.childcraftbaby.com or Call Foundations
for assistance at 1-877-716-2757 (U.S. Only) or
1-330-722-5033 (Monday through Friday, 9:00
a.m.– 4:00 p.m. Eastern Time). Please have the
model number and manufacture date available
when you call or write us at:
Foundations
, 5216 Portside Dr. Medina Oh. 44256
®
ASSEMBLY INSTRUCTIONS
• Adult assembly required.
• Read all instructions BEFORE assembly and USE
of product. KEEP INSTRUCTIONS FOR FUTURE
USE.
• Unpack carton, remove packing materials,
including poly bag. Identify and check all parts.
Foundations
www.childcraftbaby.com

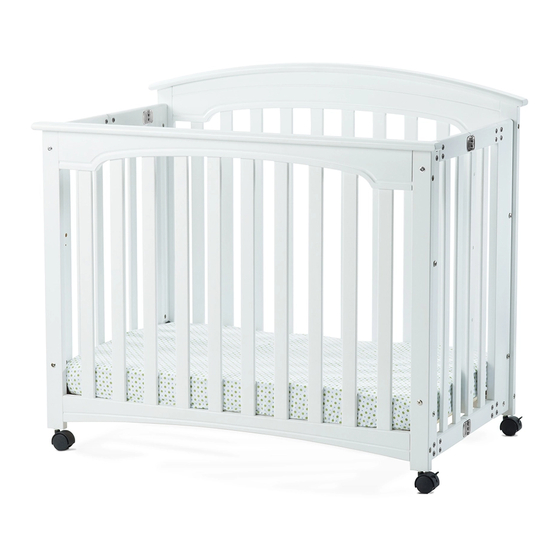

Folding Mini Wood Crib
Models Covered: F61301.
KEEP INSTRUCTIONS FOR FUTURE USE
.com
®
Worldwide, Inc.
®
Record the information for your product here:
Model number:
Manufacture date:
PO number:
1
.
AB20046_G1
