CipherLab 9500CE Quick Installation

Vehicle cradle

Hide thumbs Also See for 9500CE:

Download this manual

9500CE Vehicle Cradle

Quick Installation

Version 1.02

Need help?

Do you have a question about the 9500CE and is the answer not in the manual?

Page 2: Inside The Package
Inside the Package 9500CE Vehicle Cradle Mount Base Charging Cable Cable Assembly with In-line Fuse Holder (3A) USB Cable (Type A to Type B)
Page 3 Dimensions Dimensions of the Mount Base are in inches.
Page 4 Installing the Cradle & Base Adjustable Bracket...

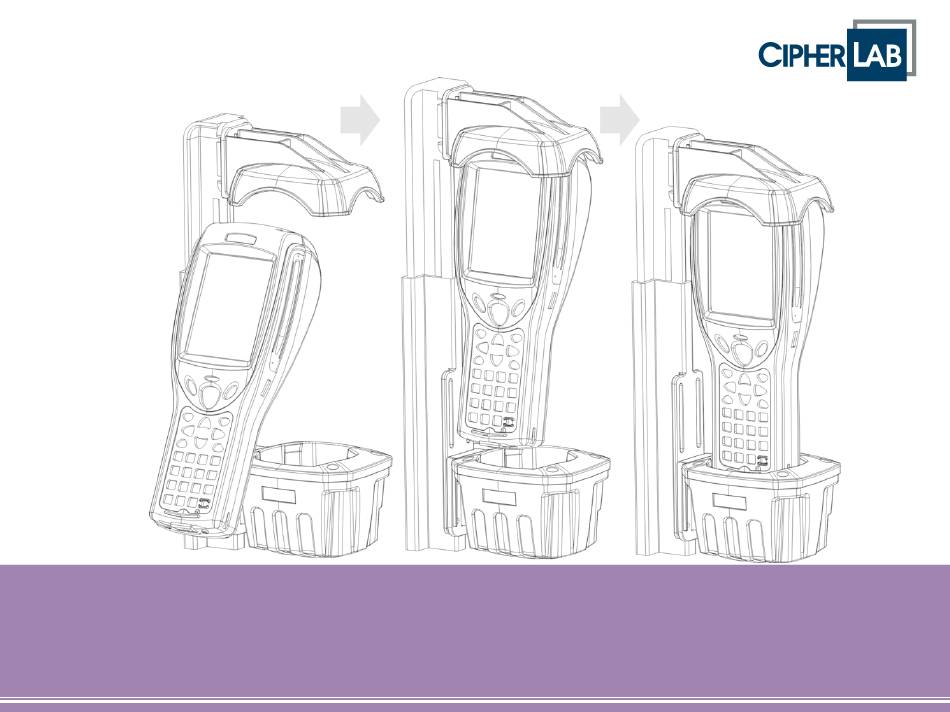

Page 5 Seating 9500CE in the Cradle...
Page 6 Connect one end of the charging cable to the receptacle of the Cradle. Connect the other end to the cigarette lighter of your vehicle. Charging 9500CE from a 12V DC Power Source Instead of connecting the Cradle to the cigarette lighter, you can connect it to a 12V DC power source by making use of the cable assembly with the in-line fuse holder pre-installed.
Page 7 Communications Connecting to USB Host To enable data communications between 9500CE and your computer, use the USB cable that ships in the package. Connect Type B connector of the USB cable to the bottom of the Cradle. Connect Type A connector to the USB port of your notebook.
Page 8: Specifications
Specifications Physical Specification (W) 154 mm × (H) 262 mm × (D) 94 mm Dimensions Operating Temperature -20°C ~ 80°C Storage Temperature -30°C ~ 90°C Operating Humidity 10% ~ 90% non-condensing Storage Humidity 5% ~ 95% non-condensing Electrical Specification Operating Power Output –...
