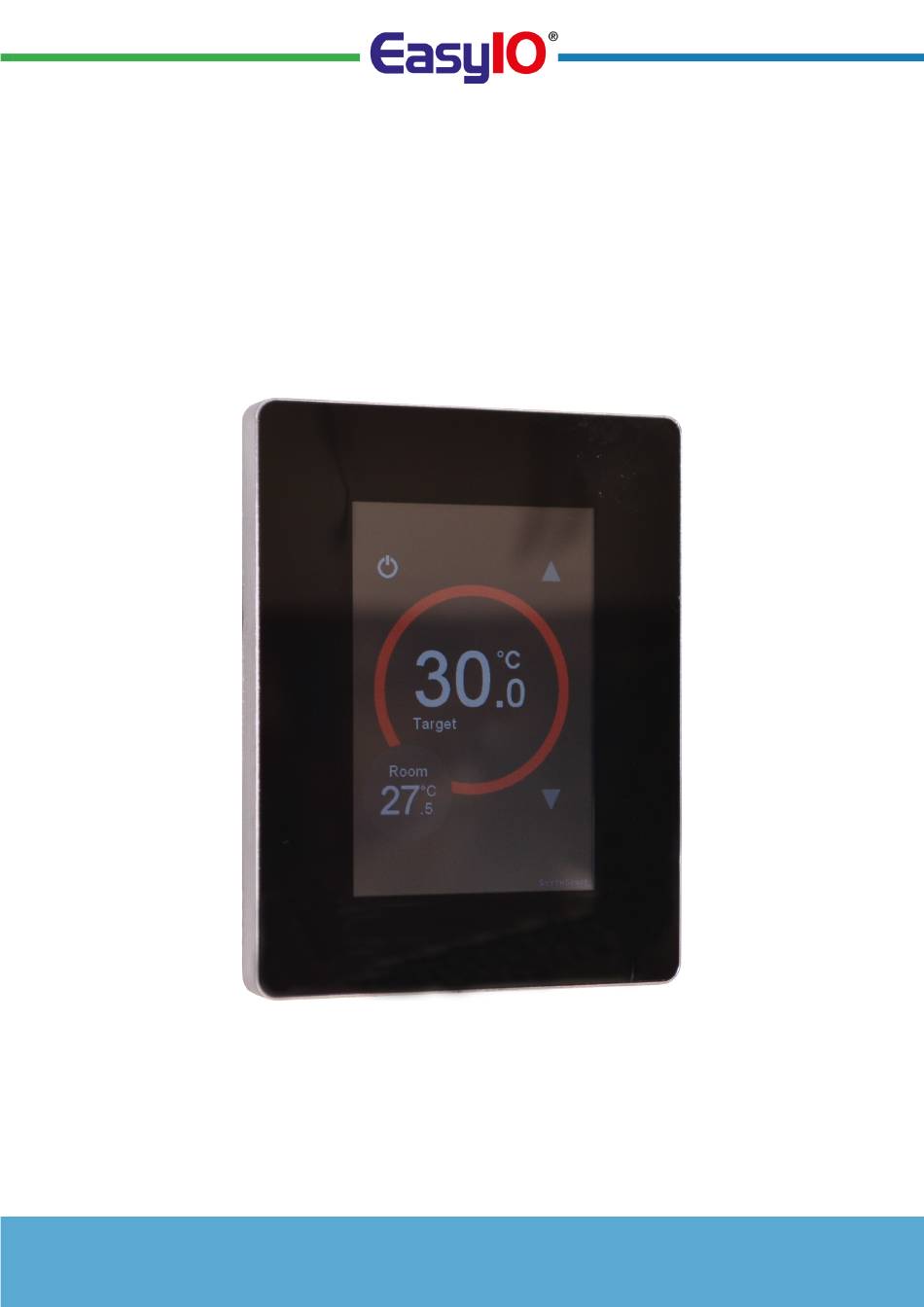

- Page 1 Touchscreen Modbus & BACnet thermostat (with Fan speed control) product manual v2.2 SH-TSX SH-TSX Product Manual - © EasyIO / www.easyio.eu...
- Page 2 System Setting “Screen Refresh Rate added. This can be used in cases when noise on power supply affects the display. Decreasing the refresh rate will slow down the speed that the screen is redrawn. (firmware version 3.12). SH-TSX Product Manual - © EasyIO / www.easyio.eu...
-
Page 3: Table Of Contents
Party Mode (Boost) ............................. 15 Frost Icon ............................... 16 Cleaning Mode .............................. 16 A/C and Lights Buttons ..........................16 Energy Ring Display ............................ 17 Lock Mode ..............................17 Alarm Display ............................... 18 External Sensor RI1 and RI2 Inputs ...................... 18 DI Digital Volt-Free Input ......................... 18 Humidity Measurement (-RH option) ....................19 Touchscreen Calibration ........................... 19 Language Selection ............................. 19 Configuration Parameters ........................19 Control settings ............................20 Inputs & Outputs ............................20 Operating modes ............................20 Display ................................21 System ................................22 SH-TSX Product Manual - © EasyIO / www.easyio.eu... - Page 4 Parameter Storage ............................23 Modbus Registers ............................23 BACnet Interoperability Building Blocks Supported (Annex K) ..........27 BACnet Standard Object Types Supported ..................28 Device Object Properties .......................... 29 Dimensions ..............................30 SH-TSX Product Manual - © EasyIO / www.easyio.eu...
-
Page 5: Introduction
Introduction The SH-TSX series smart thermostats offer a modern flush mounted slim design look for the heating and cooling control. The thermostats can be used for various zone control or underfloor heating, cooling and fan control applications. The SH-TSX thermostats have attractive 3.5" backlit touchscreen. -
Page 6: Technical Data
Housing Housing Material Polycarbonate Plastics, Self Extinguishing, (V0 rated), Silver and Black Mounting Wall or Junction Box Mounting Dimensions W88 x H112 x D43mm; Flush: W88 x H112 x D14.5mm Weight 220g SH-TSX Product Manual - © EasyIO / www.easyio.eu... -
Page 7: Wiring Connections
Remote NTC10 Temperature Sensor Input 2 Volt-Free Digital Input Contact Modbus / BACnet MS/TP RS485 A+ Connection Modbus / BACnet MS/TP RS485 B- Connection 0V Common WARNING: Switch off the power before any wiring is carried out. SH-TSX Product Manual - © EasyIO / www.easyio.eu... -
Page 8: Typical Thermostat Home Screens
• A/C ICON; when AC is enabled the AC can be enabled/disabled from this icon • LIGHTS ICON; when LIGHTS are enabled, the lights can be enabled/disabled from this icon SH-TSX Product Manual - © EasyIO / www.easyio.eu... -
Page 9: Touchscreen Backlight
The screen backlight is automatically activated when it is touched. Measurement Displays The SH-TSX thermostat can show up to 3 temperatures (sensor 1, sensor 2, sensor 3) in the ACTION CIRCLE. With the RH humidity sensor option, the relative humidity sensor is also displayed in the ACTION CIRCLE. -
Page 10: Target Setpoint
CLEANING icon is used to enable timed cleaning mode • LIGHT and AC icons are used to switch lighting or AC on in system applications • COG WHEEL icon allows entry to the maintenance mode. SH-TSX Product Manual - © EasyIO / www.easyio.eu... -
Page 11: Fan Speed Display And Manual Override
(0000). If activated, the user will need to enter the Staff Code to enter the screen. Fan Speed Display and Manual Override The SH-TSX has fan icon and line bar to indicate the fan speed. It is also possible to use the line bar only to indicate other signals by disabling the fan icon. - Page 12 AUTO (speed set by network) - N (night) - M1 - M2 - M3 - M4 - M5 - M6. The night speed is set by Modbus register 135. The Auto speed is set by register 111 and displays ’A’ next to speed. The register 134 shows the current speed. SH-TSX Product Manual - © EasyIO / www.easyio.eu...
-
Page 13: Operating Mode Icon
Operating Mode Icon The SH-TSX has Operating Mode icon that allows the unit operating mode to be set (network variable). By touching the icon the operating mode rotates between the below options. The number of options depend on the configuration setting. -
Page 14: Off Mode Icon
OFF Mode Icon The SH-TSX can be switched to OFF mode via the touchscreen, digital volt-free input (e.g. time clock) or via the communication network (system configuration). In the OFF mode the OFF icon is displayed in red, the target display is dimmed and up&down buttons are hidden. -
Page 15: Night Mode (Digital Input Override)
NETWORK, the party mode has no effect on the relay. The PARTY MODE icon can also be activated / deactivated over the network. CANCEL PARTY MODE WHEN ACTIVE °C INDICATES THE CURRENT REMAINING PARTY MODE TIME 6 mins. Remaining SH-TSX Product Manual - © EasyIO / www.easyio.eu... -
Page 16: Frost Icon
After entering FURTHER INFORMATION screen, by selecting the CLEANING icon, it is possible to activate the cleaning mode. The SH-TSX will enter a "Clean Screen" state where all touchscreen presses are ignored and 30 second countdown timer is displayed. This allows cleaning of the interface. -
Page 17: Energy Ring Display
Energy Ring Display The SH-TSX has a large ring around the target temperature ("energy ring"). The ring colour can be set from the network, or it can automatically change density between red-grey-blue by calculating the difference between the target and sensor 1/2/3 temperature. -
Page 18: Alarm Display
Alarm Configuration - when the contact closes the "DI Contact Alarm" alarm message is displayed on the screen. Network option is selected when the digital input is used for monitoring purposes only. SH-TSX Product Manual - © EasyIO / www.easyio.eu... -
Page 19: Humidity Measurement (-Rh Option)
System Maintenance Screen pressing the screen during the reboot. Calibrate the screen by swiping to the all four edges of the screen and then press OK to accept the new settings. Language Selection The SH-TSX user pages can be displayed in different languages by selecting the language from the System Configuration pages. Configuration Parameters... -
Page 20: Control Settings
Default: Sensor 3 (built-in Sensor) Fan Night Speed Fan Speed at Night (OFF 0..6 (Default 0) Mode) Operating modes Parameter name Description Range Lock Mode Lock Operation 0 = Disabled (default) 1 = On/Off/Boost Workable Only SH-TSX Product Manual - © EasyIO / www.easyio.eu... -
Page 21: Display
4 = Auto/Htg/Clg/Fan 5 = Auto/Htg/Fan 6 = Auto/Clg/Fan Enable OFF Icon Enable OFF Icon 0 = Disabled (default) 1 = Enabled Humidity Display Enable / Disable Humidity Display (if 0 = Disabled SH-TSX Product Manual - © EasyIO / www.easyio.eu... -
Page 22: System
0000 – 9999 Staff Page Password - Access (default 0000 = disabled) Password to Further Settings Screen Language Default Language for User 0 = English (Default) Screens 1 = Finnish 2 = Swedish SH-TSX Product Manual - © EasyIO / www.easyio.eu... -
Page 23: Parameter Storage
Off - On OFF Mode Status 0..1 Off - On Screen Lock Status 0..1 Off - On Party Mode (Boost) Status 0..1 Off - On ECO Mode Status 0..1 Off - On SH-TSX Product Manual - © EasyIO / www.easyio.eu... - Page 24 (Default 0.0) Minimum Setpoint Unsigned 16 0...990 0.0...99.9°C/°F/% (Default 14°C) Maximum Setpoint Unsigned 16 0...990 0.0...99.9°C/°F/% (Default 30°C) Colour Ring Mode Unsigned 16 0..10 0 = White 1 = Red 2 = Blue SH-TSX Product Manual - © EasyIO / www.easyio.eu...
- Page 25 0 = Disabled (default) 1 = Enabled Lock Mode Unsigned 16 0..3 0 = Lock mode disabled (default) 1 = On/Off/Boost workable only 2 = Temp settings only available 3 = All buttons disabled SH-TSX Product Manual - © EasyIO / www.easyio.eu...
- Page 26 2 = Override Relay Staff Code Unsigned 16 0..9999 0000…9999 Language Unsigned 16 0..2 0 = English (Default) 1 = Finnish 2 = Swedish Unsigned 16 0..16 0 = Disabled Sensor 1 Text (RI1/Network) SH-TSX Product Manual - © EasyIO / www.easyio.eu...
-
Page 27: Bacnet Interoperability Building Blocks Supported (Annex K)
Unsigned 16 0..1 0 = Normal 1 = Force Factory Defaults BACnet Interoperability Building Blocks Supported (Annex K) Application Service Initiate Execute BIBB ReadProperty DS-RP-B ReadPropertyMultiple DS-RPM-B WriteProperty DS-WP-B ReinitializeDevice Who-Is DM-DDB-B I-Am SH-TSX Product Manual - © EasyIO / www.easyio.eu... -
Page 28: Bacnet Standard Object Types Supported
MSV(3) – Device Mode Status [Read only] (1=Comfort, 3=OFF, 4=Boost) MSV(4) – Alarm Status [Read only] (Add 1 to bit values) Bit 0 – Internal NTC (1) Bit 1 – RI1 (2) Bit 2 – RI2 (4) SH-TSX Product Manual - © EasyIO / www.easyio.eu... -
Page 29: Device Object Properties
Device System Status STATUS_OPERATIONAL Vendor Name EasyIO Vendor Identifier Model Name SH-TSX Protocol Version Protocol Revision Max APDU Length Segmentation Support APDU Timeout 6000 ms Number APDU Retries MaxMaster Max_Info_Frames Database Revision SH-TSX Product Manual - © EasyIO / www.easyio.eu... -
Page 30: Dimensions
Dimensions SH-TSX Product Manual - © EasyIO / www.easyio.eu...
