EIO-75 Series Modbus/BACnet
Room Interfaces

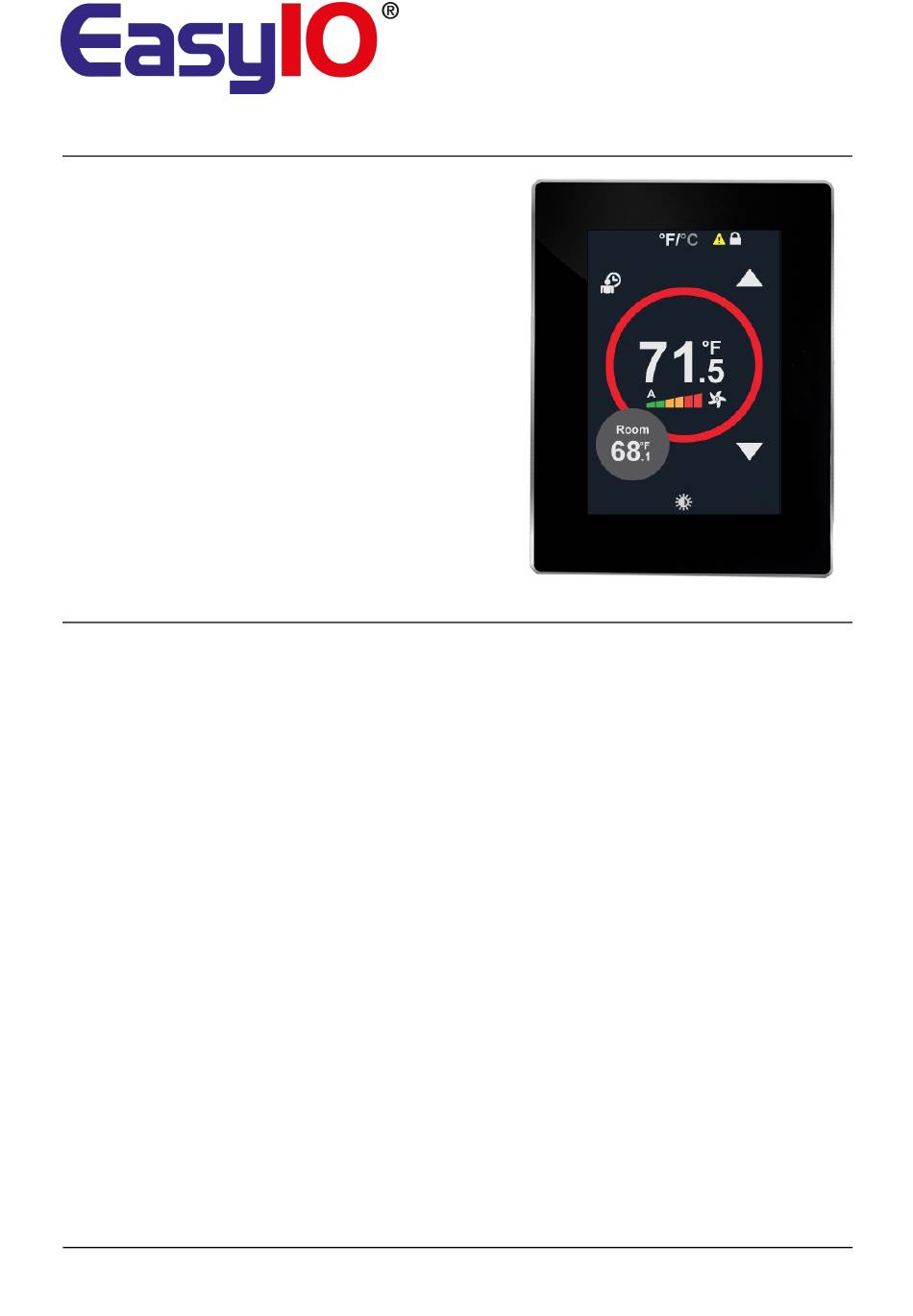

The EIO-75 series Modbus/BACnet Touchscreen user interfaces
provide modern looking low profile user interface and I/O-module
for flush mounting in room spaces.
The EIO-75 series interfaces have attractive 3.5" backlit
touchscreen with smart designer interface.
The MOD models have built-in Modbus RTU communications and
the BAC models provide BACnet MS/TP communications.
Features
• 24VAC/DC Power Supply
• 3.5" Inch Backlit Touchscreen Display
• BACnet and Modbus Communication Models
• Flush Mounting in the UK, EURO and US Wall Mounting Box
• Attractive Modern Designer Look
• Built-In Temperature Sensor
• 2 x Remote NTC10 Sensor Inputs
• 24V 5A Switched Network Relay
• Digital Input for Overrides / Measurement
Model Type
EIO-75-BAC
EIO-75-BAC-CO2
EIO-75-BAC-CO2-RH
EIO-75-BAC-RH
EIO-75-MOD
EIO-75-MOD-CO2
EIO-75-MOD-CO2-RH
EIO-75-MOD-RH
*Devices are not UL Listed
BACnet MSTP Touchscreen LCD Room Interface, 24Vac/dc Power Supply, 24V rated relay, degF default
BACnet MSTP Touchscreen LCD Room Interface, CO2, 24Vac/dc Power Supply, 24V rated relay, degF default
BACnet MSTP Touchscreen LCD Room Interface, CO2, 24Vac/dc Power Supply, 24V rated relay, degF default
BACnet MSTP Touchscreen LCD Room Interface, 24Vac/dc Power Supply, 24V rated relay, degF defaults
Modbus Touchscreen LCD Room Interface, 24Vac/dc Power Supply, 24V rated relay, degF defaults
Modbus Touchscreen LCD Room Interface, CO2, 24Vac/dc Power Supply, 24V rated relay, degF defaults
Modbus Touchscreen LCD Room Interface, CO2, 24Vac/dc Power Supply, 24V rated relay, degF defaults
Modbus Touchscreen LCD Room Interface, 24Vac/dc Power Supply, 24V rated relay, degF defaults
EIO-75
EIO-75 032719
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EasyIO EIO-75 Series
Summary of Contents for EasyIO EIO-75 Series
- Page 1 The EIO-75 series Modbus/BACnet Touchscreen user interfaces provide modern looking low profile user interface and I/O-module for flush mounting in room spaces. The EIO-75 series interfaces have attractive 3.5" backlit touchscreen with smart designer interface. The MOD models have built-in Modbus RTU communications and the BAC models provide BACnet MS/TP communications.
- Page 2 Polycarbonate Plastics, Self Extinguishing (V1 rated) Mounting Wall or Junction Box Mounting, Silver and Black Dimensions W88mm (3.46") x H112mm (4.41") x D43mm (1.68") Flush: W88mm (3.46") x H112mm (4.41") x D14.5mm (0.57") Weight 220g EasyIO Holdings EIO-75 032719 www.easyio.com...
- Page 3 Remote NTC10 Temperature Sensor Input 2 Volt-Free Digital Input Contact 485A+ Modbus / BACnet MS/TP RS485 A+ Connection 485B- Modbus / BACnet MS/TP RS485 B- Connection 0V Common WARNING:Switch off the power before any wiring is carried out. EasyIO Holdings EIO-75 032719 www.easyio.com...
- Page 4 By pressing the DIM icon when the screen is active the screen is immediately dimmed to the "stand-by" level. Pressing the DIM icon when the device is in the "stand-by level", switches the backlight OFF. The screen backlight is automatically activated when it is touched. EasyIO Holdings EIO-75 032719 www.easyio.com...
-
Page 5: Measurement Displays
Inside the large circle on the HOME SCREEN the EIO-75 shows the target value. As default the Target Units units are in temperature (Fahrenheit / Celcius). It is possible to change the units to ’percentage’ to display the target values for percentage based control. The EIO-75 Series have Fahrenheit to Centigrade to Fahrenheit UNIT SELECTION Display Celcius icons on the top of the Home Screen. - Page 6 WHEN FAN SPEED IS 1 TO 6 FAN ICON the line bar (in 6 steps/bars). ROTATES. The shading of the bar can be set to follow greyscale, or green/yellow/red color scheme. EasyIO Holdings EIO-75 032719 www.easyio.com...
- Page 7 ING ICON ROTATES °F BETWEEN AUTO-FAN-HTG- As default the Mode icon is not active and it can be activated and configured in the configuration parameters. The options are:- • DISABLED • HTG/CLG; rotates between Heating/Cooling EasyIO Holdings EIO-75 032719 www.easyio.com...
- Page 8 DISABLED: Icon Not Visible (default) • ENABLED: OFF Icon is displayed in the HOME SCREEN in the FUNCTION BASED ICON area if the PARTY MODE has not been enabled. Otherwise it is displayed in the FURTHER SET- TINGS SCREEN. EasyIO Holdings EIO-75 032719 www.easyio.com...
-
Page 9: Cleaning Mode
°F possible to override the Icons ON or OFF over the network. A/C STATUS, AND ON/OFF The buttons are enabled through the Maintenance SWITCH Mode in the Display settings. A/C ON Room A/C OFF °C EasyIO Holdings EIO-75 032719 www.easyio.com... -
Page 10: Information And Settings
A remote NTC10k3 sensor can be connected to the RI1 and RI2 input and used for the monitoring Inputs purposes. The measurement is always available over the communications network. If configured the reading is also showed on the display in the SMALL ACTION CIRCLE area. EasyIO Holdings EIO-75 032719 www.easyio.com... -
Page 11: Setting Program Schedules
22:30 SELECT 23:30 Copy 7 DAYS OR 5+2 DAYS MODE SELECTION Enter 7 Days The EIO-75 user pages can be displayed in different languages by selecting the language from Language Selection the System Configuration pages. EasyIO Holdings EIO-75 032719 www.easyio.com... -
Page 12: Control Settings
Lock Operation 0 = Disabled (default) 1 = On/Off/Boost Workable Only 2 = Temp Adjust Only Available 3 = No Input - All Buttons Disabled Lock Mode Password Lock Mode Password 0000 - 9999 (default 0000) EasyIO Holdings EIO-75 032719 www.easyio.com... - Page 13 1 = Enabled (default) Show Unit Swap Show Icon to Select Between Centigrade and 0 = Disabled Fahrenheit 1 = Enabled (default) Setpoint Unit Sets the unit of the target parameter 0 = Temperature (default) 1 = Percentage EasyIO Holdings EIO-75 032719 www.easyio.com...
- Page 14 If the changes are carried out over the network (Modbus), then "NonVol Update" flag is required to be forced on to save the changes. When configured via the display, when the parameters are stored after the timeout or exit button. EasyIO Holdings EIO-75 032719 www.easyio.com...
-
Page 15: Modbus Registers
Relay, Bit 2 = Holiday etc.) Current Fan Speed Unsigned 16 0..6 0..6 Mode Icon Status Unsigned 16 0..3 0 = Auto 1 = Heating 2 = Cooling 3 = Ventilation Fan Firmware Version Unsigned 16 EasyIO Holdings EIO-75 032719 www.easyio.com... - Page 16 0 = Lock mode disabled (default) 1 = On/Off/Boost workable only 2 = Temp settings only available 3 = All buttons disabled Show Unit Swap Unsigned 16 0..1 0 = Disabled 1 = Enabled (default) EasyIO Holdings EIO-75 032719 www.easyio.com...
- Page 17 11 = Cooler measurement from the display. 12 = Flow 13 = Hot Water 14 = Tank 15 = Pool 16 = Cabin Sensor 2 Source Unsigned 16 0..1 0 = RI1 1 = Network Sensor (Default) EasyIO Holdings EIO-75 032719 www.easyio.com...
- Page 18 0..2400 0..2400 (Default 1300) Thursday Switching Time 4 Unsigned 16 0..2400 0..2400 (Default 1700) Thursday Switching Time 5 Unsigned 16 0..2400 0..2400 (Default 2200) Thursday Switching Time 1 Target Unsigned 16 0..1 0..1 (Default 0) EasyIO Holdings EIO-75 032719 www.easyio.com...
- Page 19 0..1 0 = Normal 1 = Force Reset Non Volatile Memory Update Unsigned 16 0..1 0 = Normal 1 = Update Force Factory Defaults Unsigned 16 0..1 0 = Normal 1 = Force Factory Defaults EasyIO Holdings EIO-75 032719 www.easyio.com...
- Page 20 MSV(0) - Set Ring color (1-White, MutliState Value 2=Red, 3=Blue, 4=Green, 5=Orange, 6=Yellow, 7=Magnenta, 8=Cyan, 9=Sensor1, 10=Sensor2, 11=Sensor3) MSV(1) - Set Mode Icon (1=Auto, 2=Heating, 3=Cooling, 4=Fan, 5=None) MSV(2) - Auto Fan Speed 1..7 (corresponding speeds 0..6) EasyIO Holdings EIO-75 032719 www.easyio.com...
- Page 21 0 = Buillt-In Sensor (Default) 1 = Network Sensor 40104 Minimum Setpoint REAL 0.0...99.9°C/°F/% (Default 57°F) 40105 Maximum Setpoint REAL 0.0...99.9°C/°F/% (Default 86°F) 40107 Sensor 1 Source Unsigned 0 = RI1 1 = Network Sensor (Default) EasyIO Holdings EIO-75 032719 www.easyio.com...
- Page 22 1 = Enabled (Home Screen) 40135 Night Speed - Set Fan Speed in Unsigned 0..6 Night Mode 40137 Staff Code Unsigned 0000...9999 40138 Language Unsigned 0 = English (Default) 1 = Finnish 2 = Swedish EasyIO Holdings EIO-75 032719 www.easyio.com...
- Page 23 1 = Force Reset 40401 Non Volatile Memory Update Unsigned 0 = Normal 1 = Update 40403 Force Factory Defaults Unsigned 0 = Normal 1 = Force Defaults Dimensions 14.5mm / 0.56” 87.40mm / 3.46” 52mm / 2.05” EasyIO Holdings EIO-75 032719 www.easyio.com...
