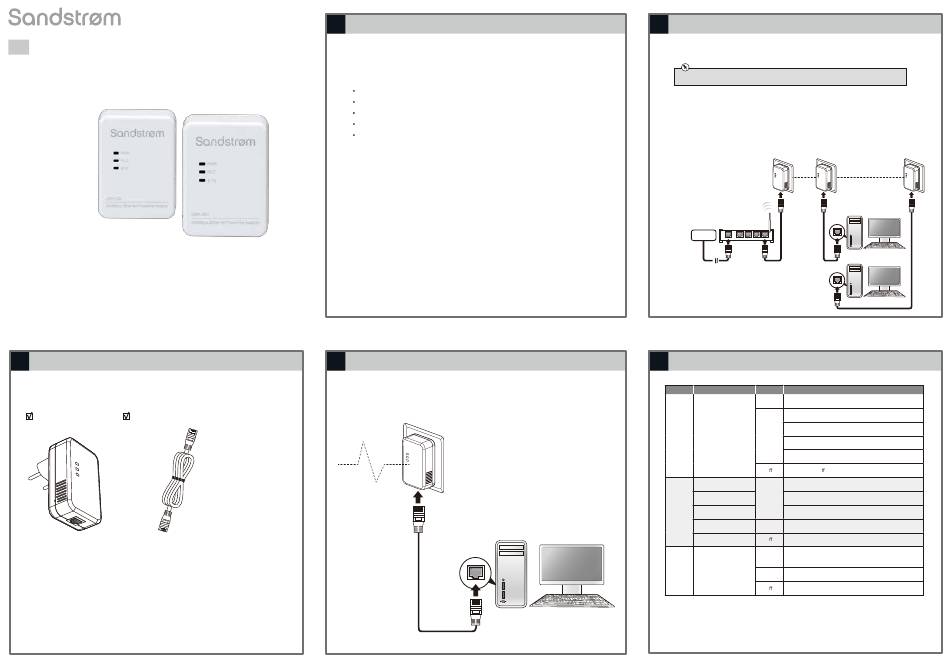

Sandstrom SSPL500 Quick Start Manual

Quick Start Guide
GB
500Mbps Ethernet Powerline Adaptor
Thank you
for purchasing your new Sandstrøm 500Mbps Ethernet Powerline
Adaptor.
We recommend that you spend some time reading this instruction manual in order that
you fully understand all the operational features it offers. You will also find some hints and
tips to help you resolve any issues.
Read all the safety instructions carefully before use and keep this instruction manual for
future reference.
1
Unpacking
Remove all packaging from the unit. Retain the packaging.
If you dispose of it please do so according to any local regulations.
Powerline Adaptor x 2 RJ-45 Ethernet Cable x 2
SSPL500
2
System Requirements
1. Minimum 2 x AC 100V ~ 240V power outlets
2. RJ-45 Ethernet Cable x 2
3. Standard home power wiring
4. A computer with the following:
Operating System with TCP/IP installed
Pentium III compatible processor and above
Ethernet LAN card installed with TCP/IP protocol
64 MB RAM or more
50 MB of free disk space (minimum)
3
Hardware Connection – Computer
To connect a computer to the Powerline Adaptor, you must use an Ethernet
(RJ-45) cable (included).
Connect to
Adaptor's
Ethernet port
Ethernet
Cable
Connect to
Mains Socket
Connect to computer's
Ethernet port
4
Creating a Powerline Network Using the Pair Buttons
1. Press and hold the Pair button of Powerline Adaptor A for 3-8 seconds
then release, the Power indicator will start flashing.
The Pair buttons must be pressed within 2 minutes of each other.
2. Press and hold the Pair button of Powerline Adaptor B for 3-8 seconds then
release, the Power indicator will start flashing.
3. Wait for about 1 minute while your Powerline Adaptors A and B are
connecting. The Power indicator on both Powerline Adaptors will stop
flashing and will light up
Powerline Powerline
solidly when the
Adaptor A Adaptor B
connection is
successful.
Internet
WAN 1 2 3 4
5
LED Indicators
Item Color Status
Solid The adaptor is on.
The adaptor is power saving mode.
The adaptor is pairing procedure.
Power LED Green Blinking
The adaptor is leaving a powerline network.
The adaptor is resetting to its factory defaults.
O
The adaptor is o .
Green Connection rate is more than or equal to 80Mbps.
Amber On Connection rate is between 20Mbps and 80Mbps.
Powerline
Red Connection rate is less than or equal to 20Mbps.
LED
Green/Amber/ Red Blinking The adaptor is transferring data.
O The adaptor isn't connected to any powerline network.
The Ethernet port is connected, but there is no data being
Solid
transferred.
Ethernet
Green
LED Blinking The Ethernet port is transferring data.
O The Ethernet port isn't connected.
Powerline
Adaptor C
WAN
WAN
Indication
