Summary of Contents for yellow jacket BULLET X
- Page 1 ULLET Vacuum Pump ® Operation and Maintenance Manual Models: 93600, 93610, 93640, 93690 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 PART #144310 Rev.B 5/20 Visit us at www.TestEquipmentDepot.com...
-
Page 2: Table Of Contents
Warranty and Service....................11 Important Notices to Purchaser Check for damage immediately. The CARRIER ALONE is responsible for handling and settling your claim. Ritchie Prior to shipment, all YELLOW JACKET ® Engineering will cooperate in assessing BULLET X Vacuum Pumps are completely ®... -

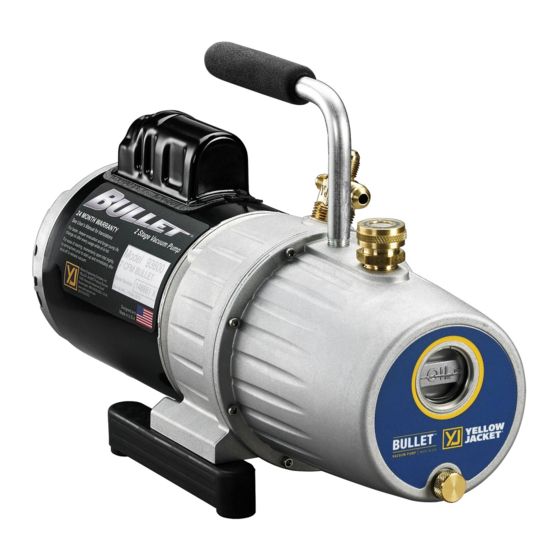

Page 3: Features Of Your New Pump
Features of Your New Pump Heavy duty steel handle for Wide-mouth reservoir port well-balanced carrying for easy, clean oil fills 1/4” x 3/8” x 3/8” intake fittings with integrated check valve Elongated sight glass for better oil level monitoring 1/2 HP motor, heavy-duty rotors and bearings Built-in cooling fins... -
Page 4: Design
The Purpose of the BULLET X Design ® The BULLET X Pump is a 2-stage ro tary ® vane design (Fig.1) that increases efficien- cy and speeds pump down to 30 microns. The pump lowers the internal pressure of a refrigeration system until moisture boils into a vapor. -
Page 5: Important Steps Of Initial Start-Up
6. When turning pump off, open intake fitting to break vacuum just prior to 2. Remove oil fill cap on pump cover. shut-off. Fill with YELLOW JACKET BULLET ® ® Pump Oil until oil level is even with oil 7. -
Page 6: Dual Voltage Motor Power Conversion
If you think there is excessive mois- 8. Use a SuperEvac System I or II to ™ ture, blow out the AC&R system with dry decrease vacuum nitrogen wherever possible. This reduces time by over 50%. the amount of contaminants that must These systems be “pulled”... -
Page 7: Basic Troubleshooting
Basic Troubleshooting • Your BULLET X Pump features a heavy- Four Most Common Comments on ® duty high torque motor for cold weather Pump Return Paperwork: starting, but dirty oil makes starting 1. “Will not pump”. This usually means more difficult, causing unnecessary wear on your unit. -
Page 8: Diagnostic Chart
Diagnostics Chart Condition Pump Area Possible Problem Solution Dirty oil Flush 1 to 3 times Drive coupling or set screw loose Repair or replace Quiet pump Bent or broken exhaust valve Repair or replace Pump not oiling Call factory Vanes not functioning Call factory Poor Pump dropped... - Page 9 Diagnostics Chart continued Condition Pump Area Possible Problem Solution Worn motor Replace motor Motor areas Losse motor bolts Tighten bolts Drive coupling Adjust/replace coupling Flush and replace oil Unusually Dirt, low, improper oil Tighten Noisy Air leaks: Replace/put on oil 1.
-
Page 10: Replacement Parts
Replacement Parts 93399 93394 92961 92942 93050 93262 92941 92940 93390 93641 93391 93513 93047 93031 92935 92964 92960 92933 92962 92959 92950 92963 93368 Part # Description Part # Description 93641 Motor 93394 1/4 Flare Cap and Strap 93513 1/2 hp Motor Dual Voltage 115/60, 93399 3/8 Flare Cap and Strap... -
Page 11: Warranty And Service
Warranty Information Ritchie Engineering guarantees YELLOW If found defective, we will either replace JACKET products to be free of defective ® or repair at our option products within material and workmanship which could warranty period. Returns must be prepaid. affect the life of the product when used Warranty does not cover use of lithium for the purpose for which it was designed.
