Summary of Contents for TVILIGHT Gateway 3.1

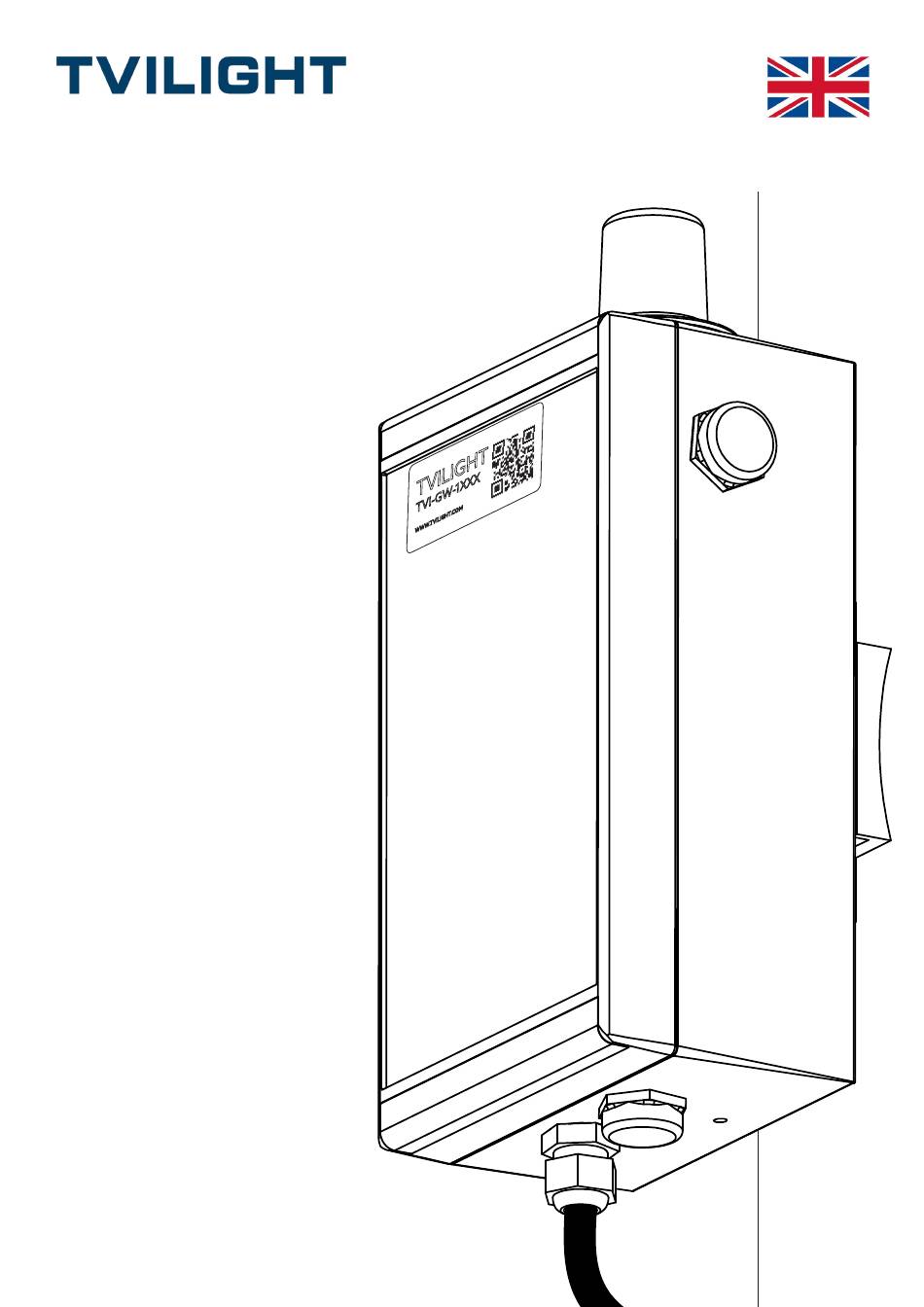

- Page 1 English Gateway Installation Manual PR182335 | Rev. E | 03/12/2019...
- Page 2 TVILIGHT PROJECTS BV / Beechavenue 162-180, 1119 PS, Schiphol-Rijk, the Netherlands NL +31 (0) 20 760 7380 / info@tvilight.com / www.tvilight.com PR182335 | Rev. E | Page 2 of 15...
- Page 3 In box: Gateway v3.1 Pole ID Label M16 Cable Gland 20 mm Rubber Grommet 5.5m Cable You’ll need: M16 Threaded Generic Strap x 2 Scan&Go App Drill 20 mm Available in the Max = 13mm Apple App Store Min = 8mm and in the Google Play Store PR182335 | Rev.
- Page 4 1. Run wire through Cable Gland/Grommet 2. Drill hole into the pole: - M16 threaded (Cable Gland) OR - 20 mm (Grommet) Note: For added protection against rust, the use of an anti-corrosion spray such as WD40 Corrosion inhibitor or equal is recommended. PR182335 | Rev.
- Page 5 3. Run wire through hole in the pole 4. Insert Cable Gland/Grommet into hole in the pole PR182335 | Rev. E | Page 5 of 15...
- Page 6 5. Screw Cable Gland OR press Grommet into the pole 6. Strap product to the pole Tensioning Tool THIS SIDE * Ensure Tensioning Tool is set to maximum tension (#4) PR182335 | Rev. E | Page 6 of 15...
- Page 7 7. Apply Pole ID Label to the pole Ensure that the Product and Pole ID Labels match. SAME www.tvilight.com TVI-GW-01-0014 www.tvilight.com TVI-GW-01-0014 PR182335 | Rev. E | Page 7 of 15...
- Page 8 8. Add device to CityManager 1. Download Tvilight Scan&Go from Apple iOS App Store or from Google Play Store. 2. Login with your Username and Password. 3. Use the ‘Add device’ function in Scan&Go app to add the device to CityManager.
-
Page 9: Wiring Diagram
Wiring Diagram WARNING: If not correctly connected product might not function or it might be permanently damaged. AC in(L) AC in(N) Junction Box PR182335 | Rev. E | Page 9 of 15... - Page 10 Wiring Diagram Armature (Armatuur) WARNING: Tvilight Gateway If not correctly connected product might not function or it might be permanently damaged. Junction Box (Aansluitset) AC In(L) AC In(N) To Mains (Naar Mains) Blue Brown Green Note: For added protection, an external circuit breaker at the power input of the product is recommended.
- Page 11 Appendix: Ethernet Cable Connection Instructions This appendix explains how to make an Ethernet connection in the Gateway v3.1. Required Parts: - 1 x Wiska Pressure Compensation Cable Gland ESVG 20, RAL 7035, M20 (Manufacturer Part #: 10060974) - 1 x Wiska Reduction Sealing Insert, RDE 20, M20 (Manufacturer Part#: 10062185) - Category 5, 6, or 7 Ethernet Cable (without Connector);...
- Page 12 A2. Insert and tighten the M20 Venting Cable Gland in the open hole Note: Installation Torque of Venting Cable Gland: 4 Nm A3. Remove Sealing Nut from the M20 Venting Cable Gland and insert the Reduction Sealing Insert PR182335 | Rev. E | Page 12 of 15 Appendix: Ethernet Cable Connection Instructions...
- Page 13 A4. Put the Sealing Nut back onto the Venting Cable Gland A5. Run the Ethernet Cable (without connector) through the Venting Cable Gland PR182335 | Rev. E | Page 13 of 15 Appendix: Ethernet Cable Connection Instructions...
- Page 14 A6. Strip the Ethernet Cable A7. Place connector onto Ethernet Cable and crimp it into place PR182335 | Rev. E | Page 14 of 15 Appendix: Ethernet Cable Connection Instructions...
- Page 15 A8. Connect the Ethernet Cable to the Ethernet port on the GW PCB A9. Tighten the Venting Cable Gland to achieve a watertight seal between the Cable Gland and the Ethernet Cable Note: Installation Torque of Cap Nut: 3 Nm. PR182335 | Rev.
