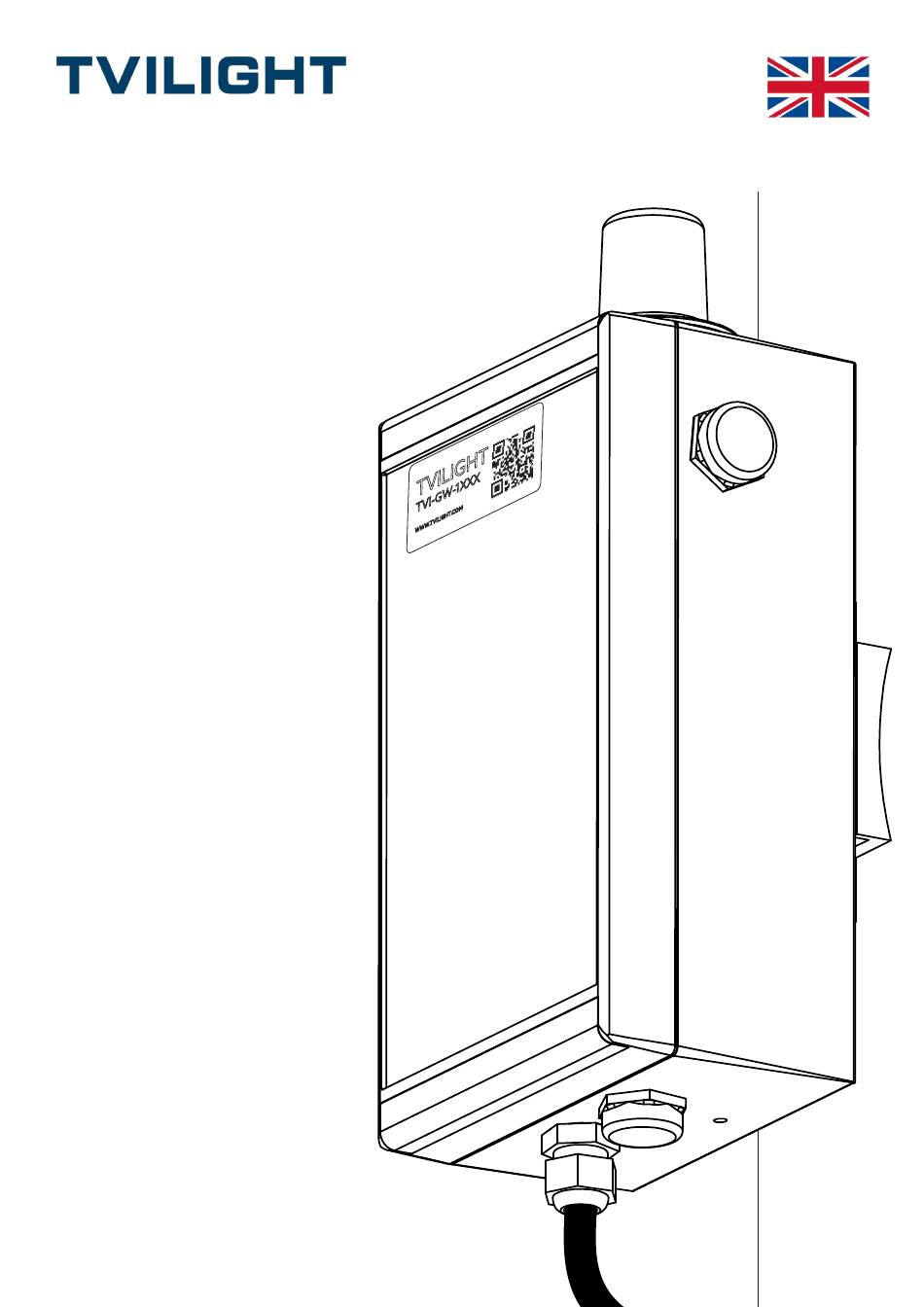

- Page 1 English Gateway Installation Manual...
- Page 2 Idiondo and Henri and clable Eskonen gland versions; add Appendix for Ethernet connection; minor formatting TVILIGHT BV / Rozenburglaan 3, 9727 DL, Groningen, the Netherlands v3 - 07/06/2018 NL+31 (0)50 800 3240 / info@tvilight.com / www.tvilight.com Page 2 of 14...
- Page 3 In box: Gateway v3.1 Pole ID Label M16 Cable Gland 20 mm Rubber Grommet 5.5m Cable You’ll need: Drill M16 Threaded Generic Strap x 2 20 mm Max = 13mm Min = 8mm Page 3 of 14...
- Page 4 1. Run wire through Cable Gland/Grommet 2. Drill hole into the pole: - M16 threaded (Cable Gland) OR - 20 mm (Grommet) Note: For added protection against rust, the use of an anti-corrosion spray such as WD40 Corrosion inhibitor or equal is recommended. Page 4 of 14...
- Page 5 3. Run wire through hole in the pole 4. Insert Cable Gland/Grommet into hole in the pole Page 5 of 14...
- Page 6 5. Screw Cable Gland OR press Grommet into the pole 6. Strap product to the pole Tensioning Tool THIS SIDE * Ensure Tensioning Tool is set to maximum tension (#4) Page 6 of 14...
- Page 7 6. Apply Pole ID Label to the pole Ensure that the Product and Pole ID Labels match. SAME www.tvilight.com TVI-GW-01-0014 www.tvilight.com TVI-GW-01-0014 Page 7 of 14...
-
Page 8: Wiring Diagram
Wiring Diagram WARNING: If not correctly connected product might not function or it might be permanently damaged. AC in(L) AC in(N) Junction Box Page 8 of 14... - Page 9 Wiring Diagram Armature (Armatuur) WARNING: Tvilight Gateway If not correctly connected product might not function or it might be permanently damaged. Junction Box (Aansluitset) AC In(L) AC In(N) To Mains (Naar Mains) Blue Brown Green Note: Observe all laws, guides and recommendations with regards to electrical installation and safety.
-
Page 10: Required Tools
Appendix: Ethernet Cable Connection Instructions This appendix explains how to make an Ethernet connection in the Gateway v3.1. Required Parts: - 1 x Wiska Pressure Compensation Cable Gland ESVG 20, RAL 7035, M20 (Manufacturer Part #: 10060974) - 1 x Wiska Reduction Sealing Insert, RDE 20, M20 (Manufacturer Part#: 10062185) - Category 5, 6, or 7 Ethernet Cable (without Connector);... - Page 11 A2. Insert and tighten the M20 Venting Cable Gland in the open hole Note: Installation Torque of Venting Cable Gland: 4 Nm A3. Remove Sealing Nut from the M20 Venting Cable Gland and insert the Reduction Sealing Insert Appendix: Ethernet Cable Connection Instructions Page 11 of 14...
- Page 12 A4. Put the Sealing Nut back onto the Venting Cable Gland A5. Run the Ethernet Cable (without connector) through the Venting Cable Gland Appendix: Ethernet Cable Connection Instructions Page 12 of 14...
- Page 13 A6. Strip the Ethernet Cable A7. Place connector onto Ethernet Cable and crimp it into place Appendix: Ethernet Cable Connection Instructions Page 13 of 14...
- Page 14 A8. Connect the Ethernet Cable to the Ethernet port on the GW PCB A9. Tighten the Venting Cable Gland to achieve a watertight seal between the Cable Gland and the Ethernet Cable Note: Installation Torque of Cap Nut: 3 Nm. Appendix: Ethernet Cable Connection Instructions Page 14 of 14...
