Rythmik audio FM8 Quick Manual

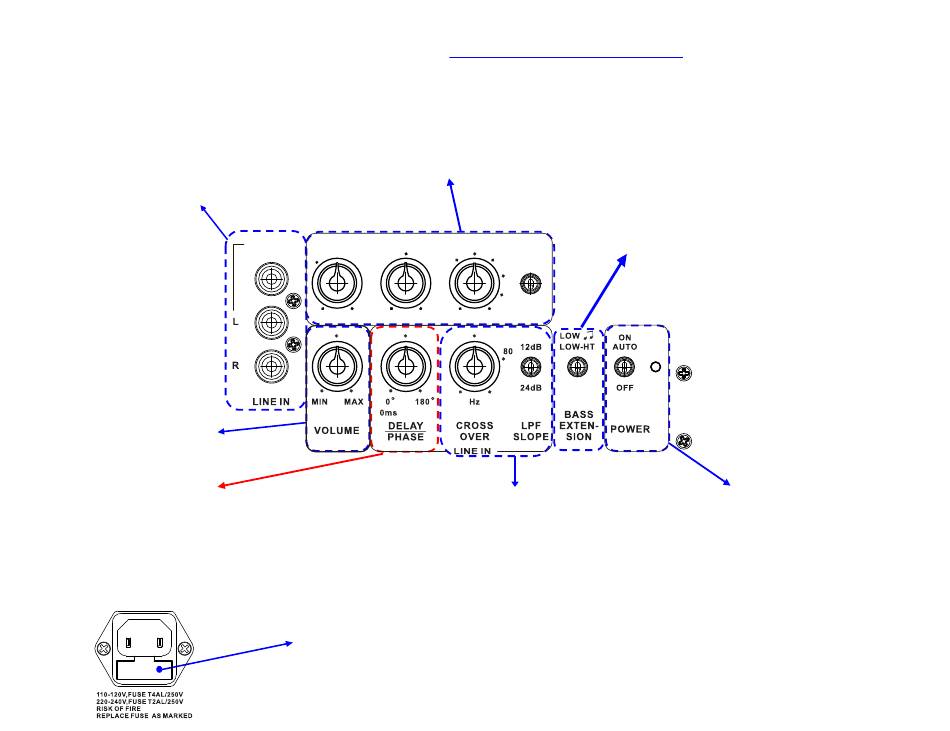

Rythmik Audio FM8 Sealed Subwoofer Quick Guide
Line Leve inputs and HPF
output
For sub output from HT
receiver/processor, one can
use either of the two (R+L)
line level inputs. This model
provides a single high pass
filter (HPF) output @150hz
from the L line-in input only.
To enable a stereo pair of
HPF outputs, two units of
this model are required.
Volume level setting is
determined by the efficiency of
front speakers. It is not an
indication of whether the sub can
play louder or not.
*Delay/phase control
It is one of the most important
controls for integration with line-in
and no external delay time
adjustment control. See our
integration guide*.
*More information can be found at
Parametric equalization (PEQ)
Defeatable EQ for tackling room modes.
Please see separate application note for
proper usage. For initial setup, set PEQ
switch to "off". Markings on FREQ knob
are from 40hz to 160hz in 20hz
increments.
HPF OUT
PEQ GAIN BANDWIDTH
@150Hz
0
+3dB -12dB MIN
Crossover setting is a fine-tuning knob for integration.
useful even when one already uses bass management. The
upper end extension of the sub is limited to avoid using the servo
subwoofer at frequencies where servo is less effective. Set to
max by default.
LPF slope setting determines the slope of crossover setting. For
two-channel, one should use 24db whereas for HT input, one
should use 12db.
Fuse box is located below power socket. Use only correctly rated fuses.
There is a notch to pry open the fuse box. Do not try to pull it off the
amplifier. There are two fuses: the inner one is the in circuit fuse, and the
outer one is a spare. Continuingly blowing fuses is an indication of a
more serious problem. Contact us if this occurs.
www.rythmikaudio.com/phase1.html
Bass extension switch
This switch determines the bass extension as well
as the rumble filter. Low music setting has the
lowest extension with high damping. Low-HT
incorporates a 3
make it more suitable for HT application. To use
this model as mid bass module, extension filter
needs to be set to 50hz/24 position. It provides a
FREQ PEQ
24db/oct HPF @50hz.
60 100
ON
OFF
MAX 40 Hz 160
100
50Hz/24
50
200
6ms
rd order rumble filter at 20hz to
It is Power LED indicator
The power switch has 3 positions: OFF,
AUTO, and ON. AUTO detects the input
signal and turns on the amp immediately
and turns off the amp after 45 minutes of
inactivity.
