Rythmik audio FVX15 Quick Manual

Rythmik Audio LVX12/FVX15 ported subwoofer Quick Guide

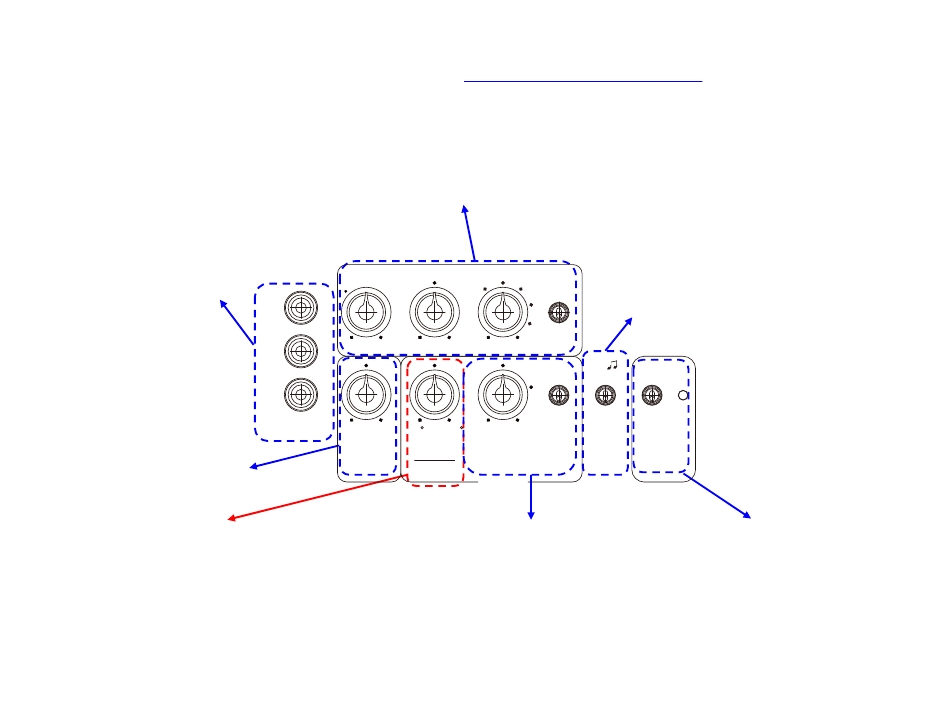

Line Level inputs
For sub output from HT
receiver/processor, one can
use either of the two (R+L)
line level inputs with 12db
LPF SLOPE switch setting,
or just LFE IN. When using
LFE IN, phase control and
crossover control have no
function. The trade-off
between using LFE IN and
LINE IN is the perceived
background noise level. For
two-channel inputs, one
should use LINE IN only.
Volume level setting is determined by
the efficiency of front speakers. It is not
an indication of whether the sub can
play louder or not.
*Delay/phase control
It is one of the most important
controls for integration with line-in
and no external delay time
adjustment control. See our
integration guide*.
*More information can be found at
Parametric equalization (PEQ)
Defeatable EQ for tackling room modes.
Please see separate application note for
proper usage. For initial setup, set PEQ
switch to "off". Markings on FREQ knob
are at 10hz increments.
PEQ GAIN
BANDWIDTH
0
LFE
+3dB -12dB MIN
L
R
LINE IN
MIN MAX 0
0ms
VOLUME
PHASE
Crossover setting is a fine-tuning knob for integration.
useful even when one already uses bass management. The
upper end extension of the sub is limited to avoid using the servo
subwoofer at frequencies where servo is less effective. Set to
max by default.
LPF slope setting determines the slope of crossover setting. For
two-channel, one should use 24db whereas for HT input, one
should use 12db.
www.rythmikaudio.com/phase1.html
Bass extension switch
The bass extension control in FVX15/LVX12 enables the user
to customize the frequency response of the low end. It
combines multi-tune specific frequency contouring and
damping control in one switch. The damping control
determines the slope of roll-off and the amount of time
domain ringing. High damping provides the least amount of
time domain ringing and the most gradual roll-off curve. Low
damping provides the steepest roll-off at the low end at the
expense of added time domain ringing. There are two
positions for 1 port operation which extends to 14hz for
LVX12 (12hz for FVX15). 1P-music uses high damping while
FREQ PEQ
1P-HT uses low damping. High SPL playback should use 2
ON
port setting. The damping in this position is low.
OFF
MAX 20 Hz 80
60
1P
12dB 1P-HT
80
24dB
180 30 Hz 120
12ms
BASS
DELAY CROSS LPF EXTEN-
OVER SLOPE SION
LINE IN
ON
AUTO
2P OFF
POWER
POWER
It is Power LED indicator
The power switch has 3 positions: OFF,
AUTO, and ON. AUTO detects the input
signal and turns on the amp immediately
and turns off the amp after 45 minutes of
inactivity.
