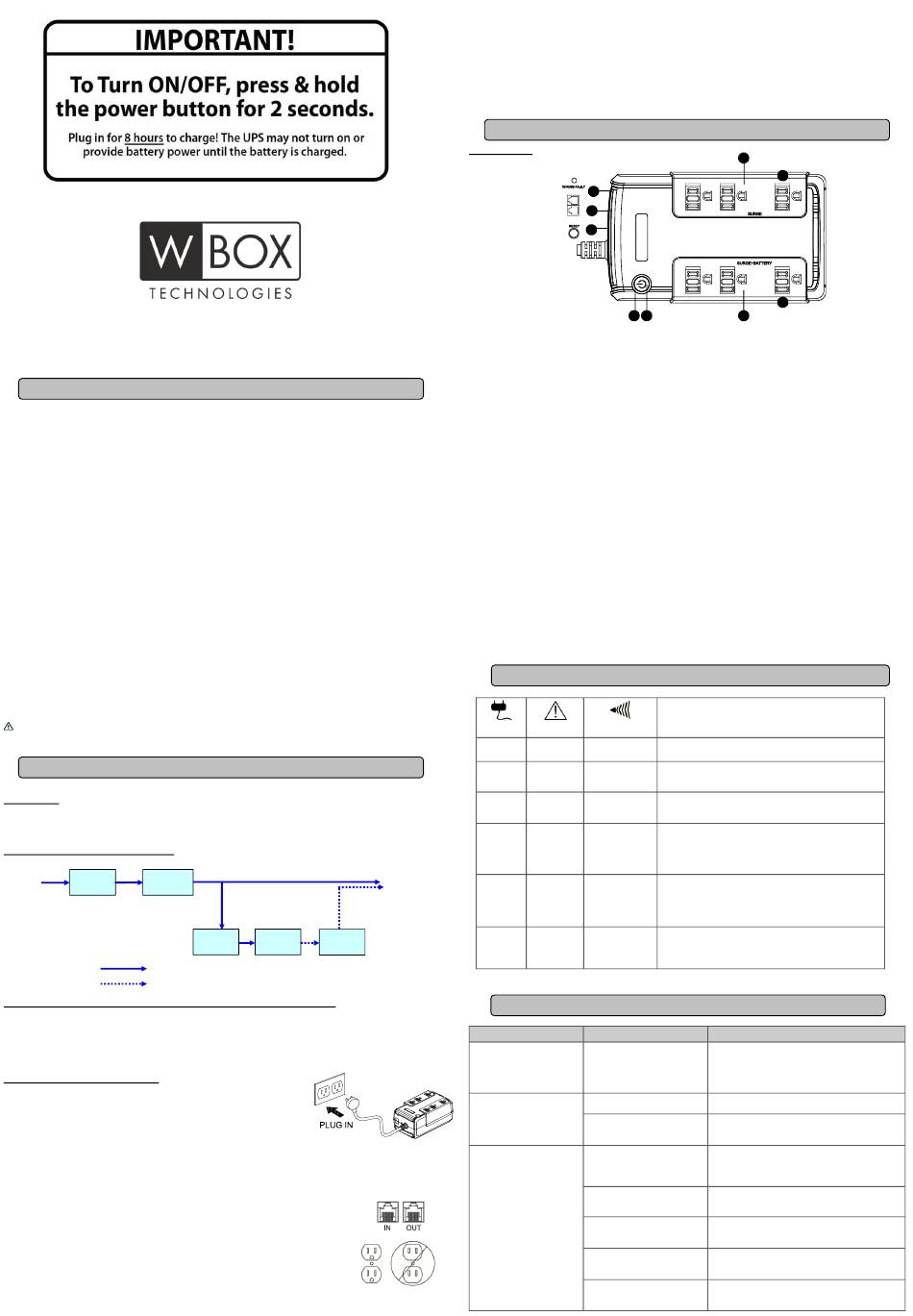

WBOX Technologies 0E-350V6 User Manual

(SAVE THESE INSTRUCTIONS)
User's Manual
IMPORTANT SAFETY WARNINGS
This manual contains important safety instructions. Please read and follow all instructions carefully during installation and operation of the unit.
Read this manual thoroughly before attempting to unpack, install, or operate your UPS.
CAUTION! To prevent the risk of fire or electric shock, install in a temperature and humidity controlled indoor area free of conductive
contaminants. (Please see specifications for acceptable temperature and humidity range).
CAUTION! To reduce the risk of electric shock, do not remove the cover. There are no user serviceable parts inside.
CAUTION! Hazardous live parts inside can be energized by the battery even when the AC input power is disconnected.
CAUTION! The UPS must be connected to an AC power outlet with fuse or circuit breaker protection. Do not plug into an outlet that is not
grounded. If you need to de-energize this equipment, turn off and unplug the unit.
CAUTION! To avoid electric shock, turn off the unit and unplug it from the AC power source before installing a computer component.
CAUTION! To reduce the risk of fire, connect only to a circuit provided with 20 amperes maximum branch circuit over current protection in
accordance with the National Electric Code, ANSI/NFPA 70.
CAUTION! Risk of explosion if battery is replaced by an incorrect type. Batteries shall be installed by service personnel, and the replacement of
batteries with a suitable recommended type. Dispose of used batteries according to the instructions.
CAUTION! Do not dispose of batteries in a fire. The batteries may explode.
CAUTION! Do not open or mutilate batteries. Released electrolyte is harmful to the skin and eyes. It may be toxic.
CAUTION! DO NOT USE FOR MEDICAL OR LIFE SUPPORT EQUIPMENT! ADI does not sell UPS products for life support or medical
applications. DO NOT use in any circumstance that would affect operation and safety of life support equipment, any medical applications or
patient care.
CAUTION! DO NOT USE WITH OR NEAR AQUARIUMS! To reduce the risk of fire or electric shock, do not use with or near an aquarium.
Condensation from the aquarium can cause the unit to short out.
Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/Data Processing Equipment, ANSI/NFPA 75.
CAUTION! DO NOT USE THE UPS ON ANY TRANSPORTATION! To reduce the risk of fire or electric shock, do not use the unit on any
transportation such as airplanes or ships. The effect of shock or vibration caused during transit and the damp environment can cause the unit to
short out.
WARNING! This product can expose you to chemicals including Styrene, and Bisphenol-A, which is known to the State of California to
cause cancer, birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
INSTALLING YOUR UPS SYSTEM
UNPACKING
Inspect the UPS upon receipt. The box should contain the following:
UPS unit, User's manual, and Telephone cable.
SYSTEM FUNCTION BLOCK DIAGRAM
Surge
Input
EMI Filter
Suppressor
Normal Mode
Battery Mode
HOW TO DETERMINE THE POWER REQUIREMENTS OF YOUR EQUIPMENT
1. Ensure that the equipment plugged into the outlet does not exceed the UPS unit's rated capacity (350VA/255W for 0E350-V6). If the rated
capacities of the unit are exceeded, an overload condition may occur and cause the UPS unit to shut down or the circuit breaker to trip.
2. There are many factors that can affect the amount of power that your computer system will require. For optimal system performance keep
the load below 80% of the unit's rated capacity.
HARDWARE INSTALLATION GUIDE
1. Your new UPS may be used immediately upon receipt. However, after receiving a new UPS, to
ensure the battery's maximum charge capacity, it is recommended that you charge the battery
for at least 8 hours. Your UPS is equipped with an auto-charge feature. When the UPS is
plugged into an AC outlet, the battery will automatically charge whether the UPS is turned on or
turned off.
2. With the UPS unit turned off and unplugged, connect your equipment requiring battery backup into the battery power supplied outlets. Plug
the other peripheral equipment (printer, scanner, speakers) into the full-time surge protection outlets. DO NOT plug a laser printer, paper
shredder, copier, space heater, vacuum, sump pump or other large electrical device into the "Battery and Surge Protected Outlets".
The power demands of these devices will overload and possibly damage the unit.
3. To protect a fax, phone or modem, connect a telephone cable from the wall jack outlet to the IN jack of the UPS.
Connect a telephone cable from the UPS OUT jack to protect a modem port on the computer, a telephone,
or fax machine.
4. Plug the UPS into a 2 pole, 3 wire grounded receptacle (wall outlet). Make sure the wall branch outlet is
protected by a fuse or circuit breaker and does not service equipment with large electrical demands (e.g. air
conditioner, refrigerator, copier, etc...). The warranty prohibits the use of extension cords, outlet strips,
and surge strips.
5. Press the power switch to turn the unit on. The Power On indicator light will illuminate green and the unit will "beep" twice.
0E-350V6
Charger
Battery Inverter
AC/DC
DC/AC
6. If an overload is detected, an audible alarm will sound and the unit will emit one long beep. To correct this, turn the UPS off and unplug at
least one piece of equipment from the battery power supplied outlets. Make sure the circuit breaker is depressed and then turn the UPS on.
7. To maintain optimal battery charge, leave the UPS plugged into an AC outlet at all times.
8. To store the UPS for an extended period, cover it and store with the battery fully charged. While in storage, recharge the battery every three
months to ensure battery life.
9. For pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily accessible.
DESCRIPTION
①
Battery and Surge Protected Outlets
The unit has three battery powered/surge suppression outlets to ensure temporary uninterrupted operation of your equipment during a
power failure. (DO NOT plug a laser printer, paper shredder, copier, space heater, vacuum, sump pump or other large electrical
K01-1101012-01
device into the "Battery and Surge Protected Outlets." The power demands of these devices will overload and possibly damage
the unit.)
②
Full-Time Surge Protection Outlets
The UPS has surge suppression only outlets to provide protection from surges and spikes.
③
Power Switch
To turn the UPS on, press the power button for approximately 2 seconds - you will hear a constant tone (1 second) - and release after a
short beep.
To turn the UPS off, press the power button for approximately 2 seconds - you will hear a constant tone (1 second) - and release after two
short beeps.
Quickly press the POWER button twice can turn off or turn on the audible Alarm. The default setting is for the Alarm On.
To turn the alarm off, quickly press the power button twice. You will hear two short beeps when the alarm is turned off.
To turn the alarm back on, quickly press the power button twice. You will hear a short beep when the alarm is turned on.
*When the alarm is turned off, there will be no audible notification when the UPS reaches a low battery state.
④
Power On Indicator (green)
This LED is illuminated when the utility power is normal and the UPS outlets are providing power, free of surges and spikes.
⑤
Electrical Wiring Fault Indicator (red)
This LED indicator will illuminate to warn the user that a wiring problem exists, such as bad ground, missing ground or reversed wiring. If
this is illuminated, disconnect all electrical equipment from the outlet and have an electrician verify the outlet is properly wired. The unit will
not provide surge protection without being plugged into a grounded and properly wired wall outlet.
⑥
Communication Protection Ports
Communication protection ports will protect any standard modem, fax, or telephone line. (RJ11)
⑦
Circuit Breaker
Located on the side of the UPS, the circuit breaker serves to provide overload and fault protection.
⑧
Outlets Designed for AC Adapters
The UPS unit has two widely-spaced outlets, so AC power adapters can be plugged into the UPS without overlapping adjacent outlets.
DEFINITIONS FOR ILLUMINATED LED INDICATORS
Power ON Wiring Fault
On Off
On* Off
On* Off
Off Off
Output
On/Off On
Off Off
*When it beeps, the power on LED will flash accordingly.
Problem
Full-time surge protection outlets
stop providing power to
equipment. Circuit breaker
button is projecting from the side
of the unit.
The UPS does not perform
expected runtime.
The UPS will not turn on.
BASIC OPERATION
2
5
6
7
3 4 1
CONDITION
Alarm
Off Normal
Beeps twice Utility Failure- The UPS is providing power to battery power-supplied
every 30 seconds
outlets from its battery.
Rapid Beeping Utility Failure- The UPS is providing battery power. Rapid beeping
every 1/2 second indicates the unit will run out of power shortly.
Overload - Occurs when connected equipment exceeds the listed
capacity of the UPS. Turn the UPS off, unplug at least one piece of
Constant tone
equipment from battery outlets, reset the circuit breaker and turn the
unit on.
Electrical Wiring Fault - This indicates a wiring problem with the
AC outlet such as bad ground, missing ground, or reversed wiring.
None
Disconnect all electrical equipment from the outlet and have an
electrician check the outlet to insure proper wiring.
Utility Failure- The frequency is beyond 47-63Hz. The UPS will not
Constant tone
turn on in line mode.
TROUBLESHOOTING
Possible Cause
Turn the UPS off and unplug at least one piece of
Circuit breaker has tripped due to an
equipment. Reset the circuit breaker by depressing the
overload.
button, and then turn the UPS on.
Battery not fully charged. Recharge the battery by leaving the UPS plugged in.
Contact ADI/W Box Technologies US 1-800-233-6261;
Battery is worn out.
Canada 877-234-7378; PR 787-793-8830
The on/off switch is designed to
Turn the UPS off. Wait 10 seconds and then turn the UPS
prevent damage from rapidly turning
on.
it off and on.
The unit is not connected to an AC
The unit must be connected to a 110/120V 50/60Hz outlet.
outlet.
Contact ADI/W Box Technologies US 1-800-233-6261;
The battery is worn out.
Canada 877-234-7378; PR 787-793-8830
Contact ADI/W Box Technologies US 1-800-233-6261;
Mechanical problem.
Canada 877-234-7378; PR 787-793-8830
Turn the UPS off. Make sure the frequency range is within
The frequency is beyond 47-63Hz.
47-63Hz. Or you can turn on with battery mode.
8
8
Solution
