Livid Fader Box Building Manual page 3

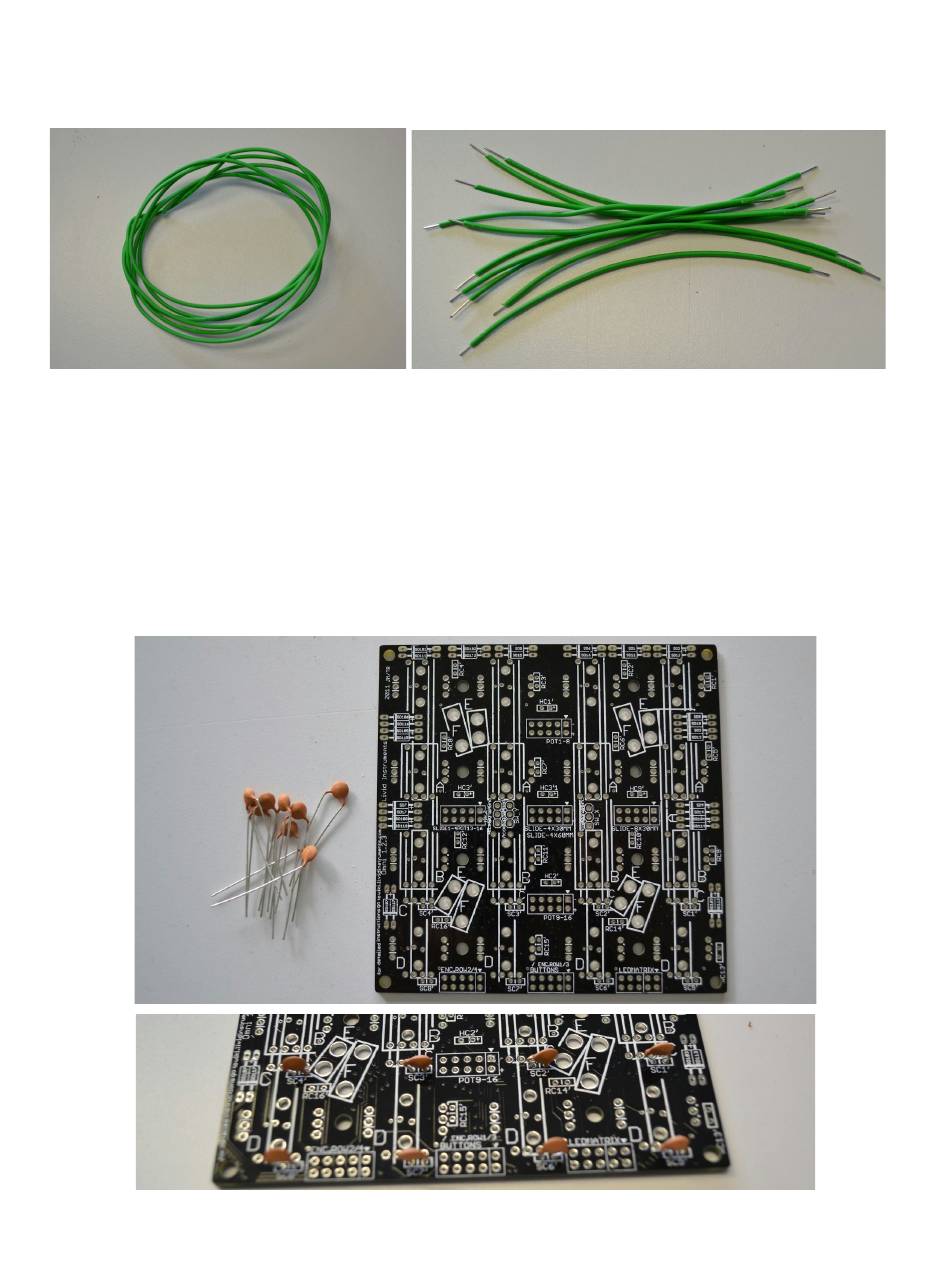

1) Prepare wires: ​ T ake the wire and cut it into 4" pieces. Strip the wire insulation
approximately 1/8" from each end to expose the copper. Repeat this until you have 10
pieces.
.
2) Populate Fader ​ C apacitors ( ​ . 01uf Capacitor): ​ O n the Omni Board locate ​ S C1-4 & SC5-8
on the bottom of the board (SC denotes "single ​ c apacitor ​ " ). The capacitors are
bidirectional, meaning you can place them without having to worry about a positive or
negative side. Solder the single ​ c apacitors ​ in positions ​ S C1-4 & SC5-8 ​ . Clip off the excess
capacitor leads from the top of the board. The single ​ c apacitors ​ allow the faders to
function, so if you have trouble with your faders later on it could mean a ​ c apacitor ​ is
incorrectly soldered.
