Vip-Vision INTIPMONPOE User Manual

Power Over Ethernet Switch for IP Intercoms
Caution:
• All installation and operation here should conform to your local electrical safety codes.
• We assume no liability or responsibility for any fire or electrical shock caused by improper handling or installation
• We are not liable for any problems caused by unauthorized modifications or attempted repair.
• The device should be installed in a cool, dry place away from direct sunlight, flammable, explosive substances, etc.

1. General Introduction

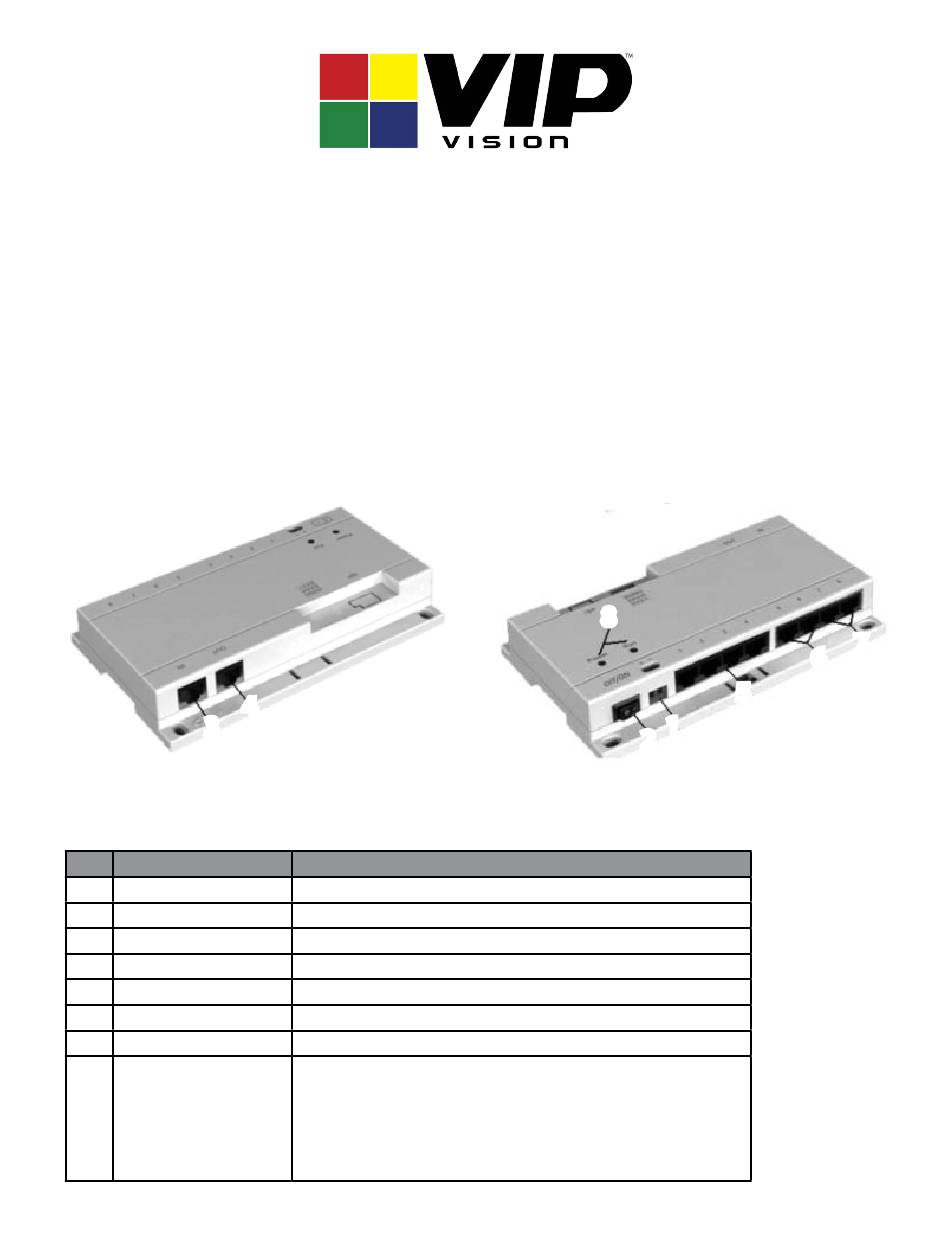

The product appearances are as follows. Please see Figure 1-1 and Figure 1-2.
4
3
Figure 1-1
For product detailed information, see Chart 1-1.
No. Name
1 DC IN Power Plug
2 OFF/ON Switch
3 Up Interface IN
4 Down Interface OUT
5 Monitor Port 1-4
6 Monitor Port 5-6
7 Monitor Port 7-8
8 Indicator
ACTIVE ONLINE - 1300 816 742
INTIPMONPOE User Manual
v1.3
Description
24V DC Power Input
Power Switch
PoE switch cascading up port
PoE switch cascading down port
Connect digital monitor 1-4
Connect digital monitor 5-6
Not usable
Power indicator (Red)
Indicator on: Power supply is normal.
Indicator off: No power supply.
Run indicator (Yellow)
Indicator flashing: Monitor works as normal.
Indicator off: Not detected.
Chart 1-1
8
5
1
2
Figure 1-2
7
6
