Assembly Instructions
To avoid scratching, lay down a towel or other soft
material where you're going to assemble the chair. It may
be necessary to remove the preinstalled screws before
assembling some parts of the chair. We recommend two
people assembling the chair.
1. Place the seat base flat on a soft surface.
2. Align the seat back with the brackets attached to the
seat base. Make sure the brackets are pointing up at
90°. Remove any fabric from the threaded holes to
ensure you can properly insert the screws [ Fig. 1 ].
3. Use the hex side of the hex/Phillips key and four M8
screws to secure each side of the seat back to the
base's brackets [ Fig. 2 ].
4. Use the M5 screws and the Phillips side of the hex/
Phillips key to attach the side covers [ Fig. 3 ].
5. Flip the chair over, and rest the base against a wall
or over a table as shown, so the four M8 holes face
upward [ Fig. 4 ].
6. Align the tilt mechanism with the four M8 holes on the
bottom of the seat base. Make sure the tilt tension
knob is toward the front of the chair [ Fig. 5 ].
7. Use four M8 screws and the hex key to secure the tilt
mechanism to the underside of the seat base [ Fig. 5 ].
8. Place the gas lift piston cover over the gas lift piston as
shown. Make sure the cover is in the correct orientation
before proceeding to the next step [ Fig. 6 ].
9. Insert the smaller end of the gas lift piston into the
center port of the tilt mechanism, and press down
firmly [ Fig. 7 ].
10. Align the hole in the wheel base with the base of the
gas lift piston, and press firmly until secure [ Fig. 8 ].
11. Insert the casters into the holes on the wheel base
[ Fig. 9 ].
12. Flip the chair upright onto the wheels, and make sure
everything is secure before use [ Fig. 10 ].
www.spieltekgaming.com
100 Series
Gaming Chair

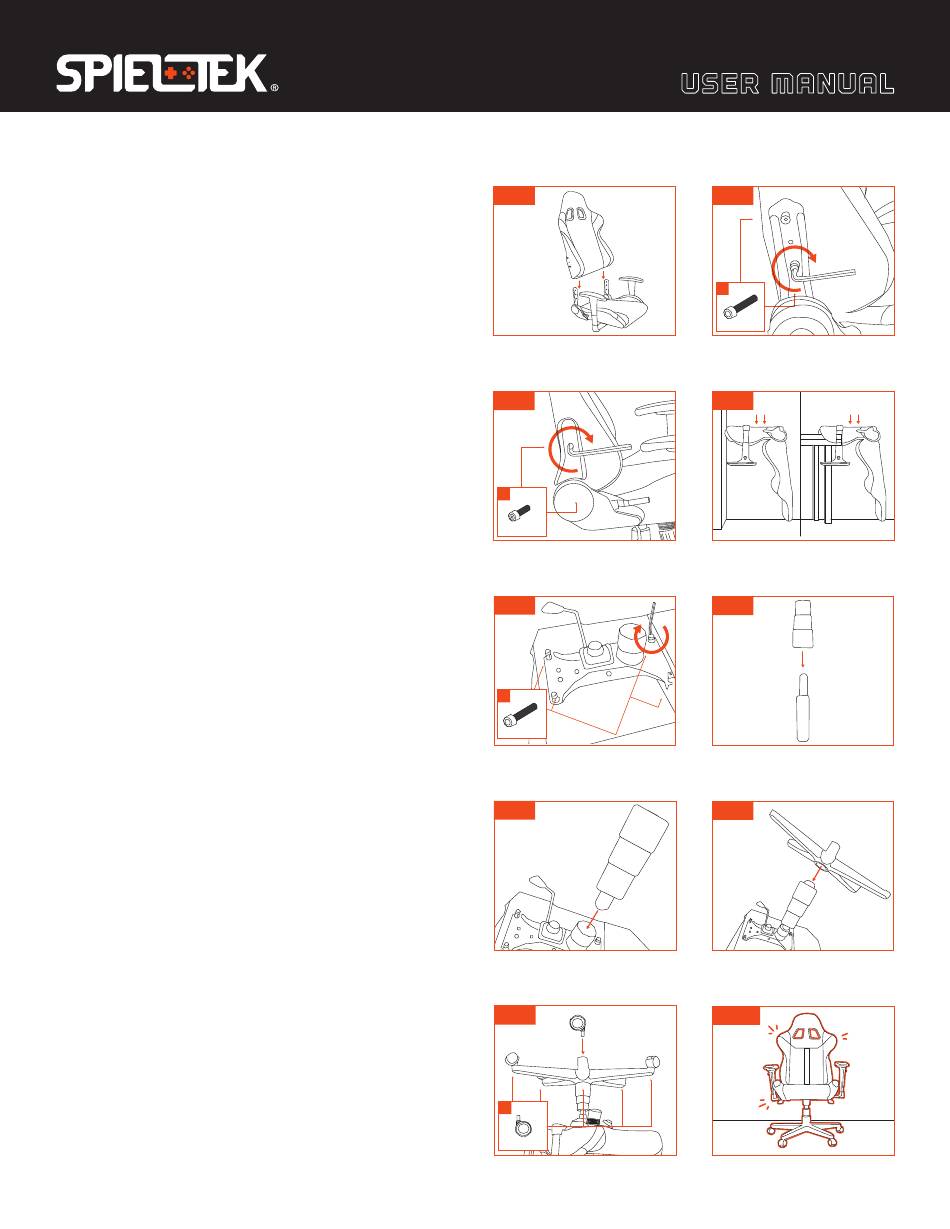

Fig. 1
