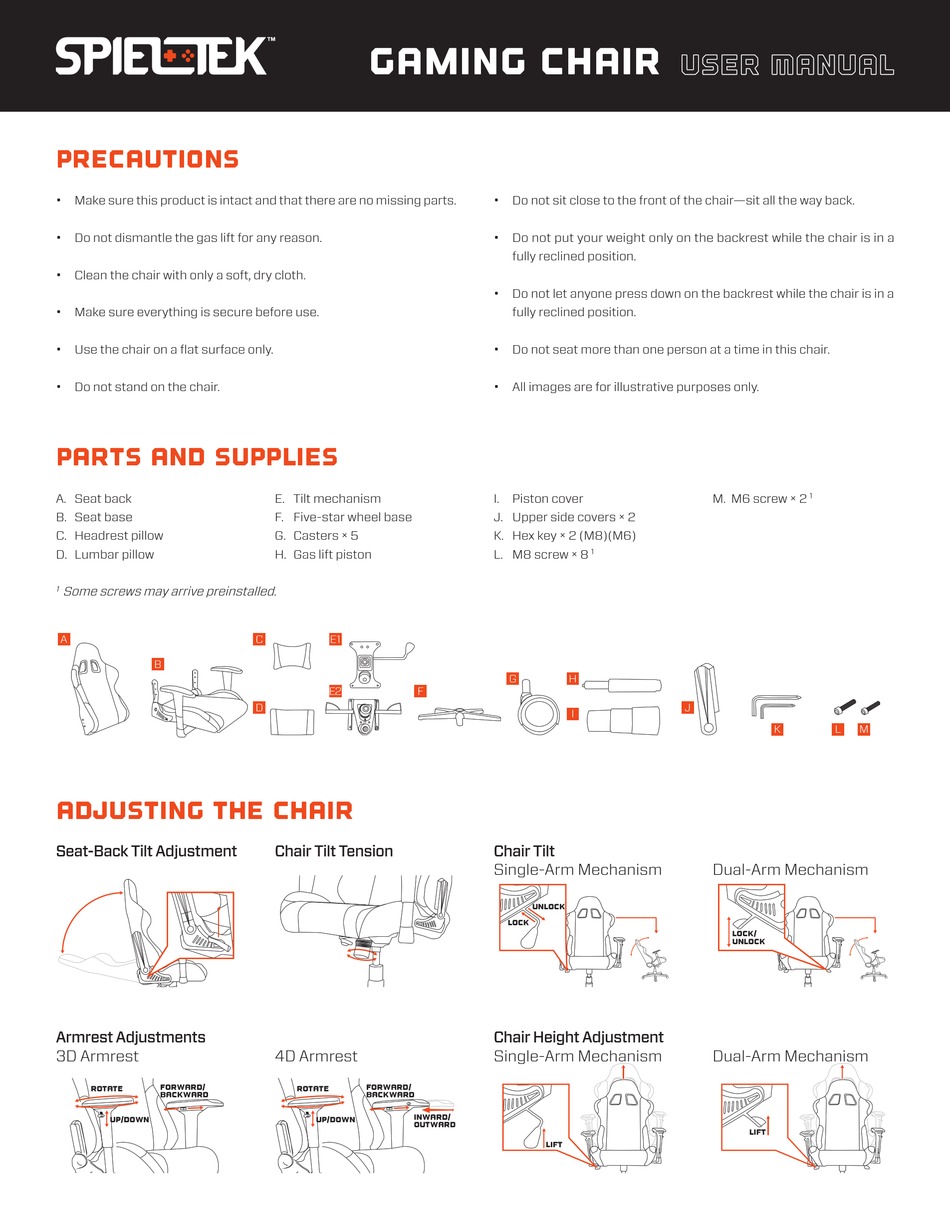

SPIELTEK Admiral User Manual

Precautions
• Make sure this product is intact and that there are no missing parts.
• Do not dismantle the gas lift for any reason.
• Clean the chair with only a soft, dry cloth.
• Make sure everything is secure before use.
• Use the chair on a flat surface only.
• Do not stand on the chair.
Parts and Supplies
A. Seat back
B. Seat base
C. Headrest pillow
D. Lumbar pillow
Some screws may arrive preinstalled.
1
A
B
Adjusting the Chair
Seat-Back Tilt Adjustment
Armrest Adjustments
3D Armrest
Forward/
Rotate
Backward
Up/Down
Gaming Chair
E. Tilt mechanism
F. Five-star wheel base
G. Casters × 5
H. Gas lift piston
C E1
E2 F
D
Chair Tilt Tension
4D Armrest
Forward/
Rotate
Backward
Inward/
Up/Down
Outward
• Do not sit close to the front of the chair—sit all the way back.
• Do not put your weight only on the backrest while the chair is in a
fully reclined position.
• Do not let anyone press down on the backrest while the chair is in a
fully reclined position.
• Do not seat more than one person at a time in this chair.
• All images are for illustrative purposes only.
I. Piston cover
J. Upper side covers × 2
K. Hex key × 2 (M8)(M6)
L. M8 screw × 8
1
G H
I
Chair Tilt
Single-Arm Mechanism
Unlock
Lock
Chair Height Adjustment
Single-Arm Mechanism
Lift
M. M6 screw × 2
1
J
K L M
Dual-Arm Mechanism
Lock/
Unlock
Dual-Arm Mechanism
Lift
