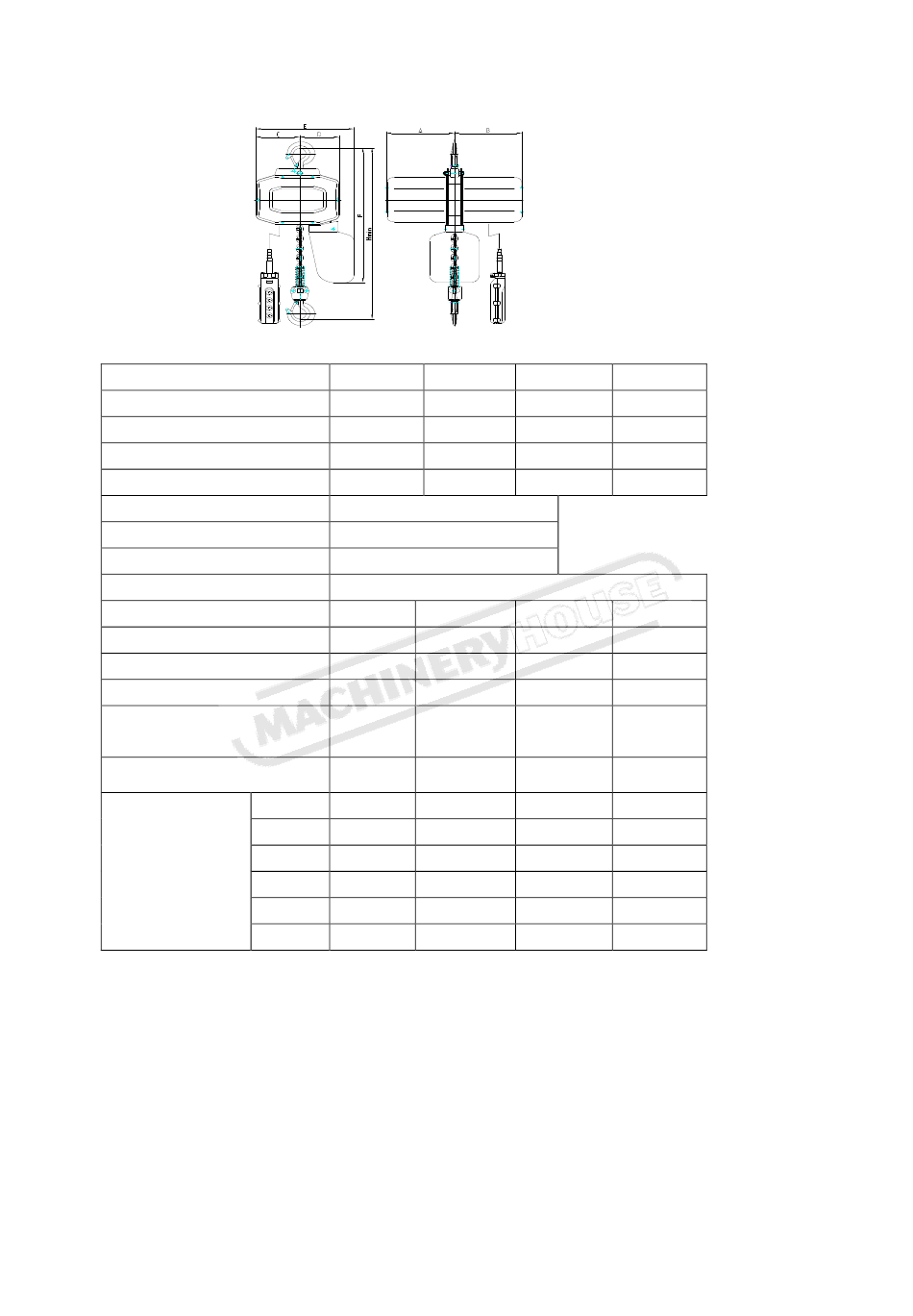

4、Dimension & Specification
Item NO.
Rated Load (ton)
Standard Lift (m)
Lifting Speed (m/min)
Output (kw)
Power Supply
INS Class
%ED
Dimension of Load chain
Strands of Load chain
Test load (ton)
Cable Length(m)
Net Weight (kg)
Extra weight per meter of extra
lift (kg)
Minimum headroom (mm)
Main dimensions
5、

Technical Specification:

1) Relative humidity: <85%
2) Ambient temperature: -25
3) Working class: M4
4) Level of Protection: IP54
5) Main power: 1P/240V/50HZ
6) Chain size:
7) The hoist can not be used in a flammable, explosive or corrosive environment.
Instructions Manual for TECH0103 (H250)
1t
上
下
TECH0103
1
3
6
1.2
240v 50HZ Single Phase
1
1.25
2.5
58
1.1
520
A (mm) 245
B (mm) 245
C (mm) 158
D (mm) 142
E (mm) 350
F (mm) 600
C－40
º º
C
φ7.1X 21
TECH0106 TECH0203
1 2
6 2
6 3
1.2 1.2
F
40%
7.1mmX 21mm
1 2
1.25 2.5
2.5 2.5
62 63
1.1 2.2
520 630
245 245
245 245
158 124
142 176
350 350
600 610
TECH0206
2
6
2
1.2
2
2.5
2.5
70
2.2
630
245
245
124
176
350
610
